Ropam EXP-NFC-RN Mifare 13.56MHz proximity card reader

Product code: #43219
  • Power supply voltage: 9-14 VDC (from the RopamNET bus)
  • 1 Relay and transistor output
  • 2 Inputs: In1 NO type, In2 NC type
  • Support for MF 1kB cards and key fobs, Bluetooth
  • Dimensions 80x80x20 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

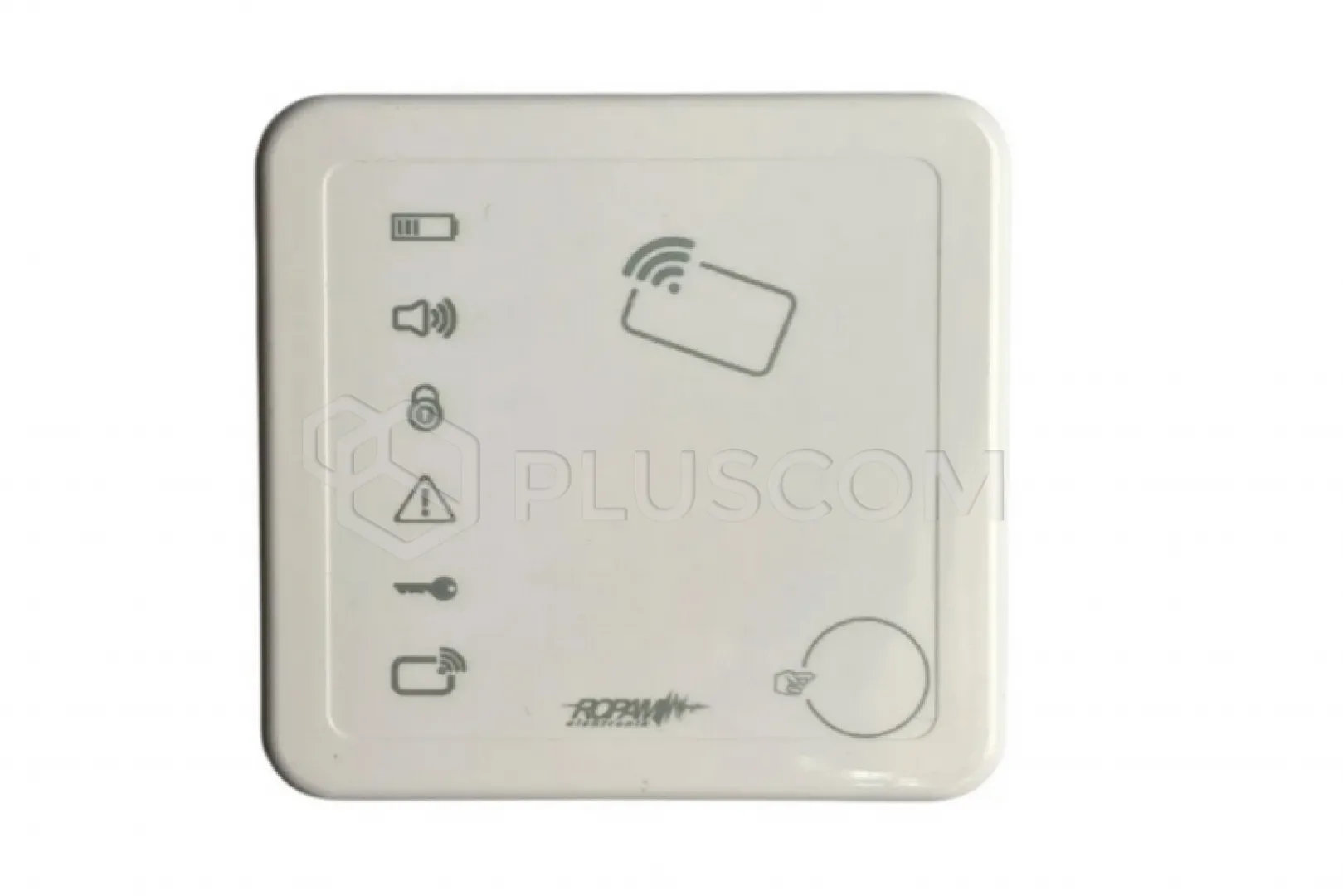

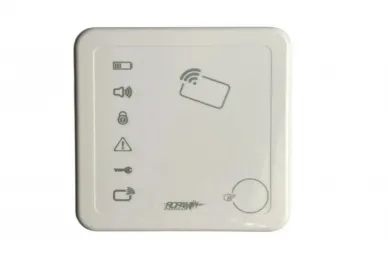

Ropam EXP-NFC-RN Mifare 13.56MHz proximity card reader


The EXP-NFC-RN module is a reader for Mifare 13.56MHz proximity key fobs and cards.

It enables control of the control panel's armed mode, supervision and integration with electromagnetic locks, and access control functions.

The device allows for control using NFC tags, the proximity button on the device, and the RopamNeo app via Bluetooth.

FEATURES:

  • Supports up to 32 key fobs/cards.
  • Controls the alarm control panel's armed mode.
  • Controls control panel outputs.
  • Integration with electromagnetic locks.
  • Controls devices with a potential-free NO/NC control input.

Technical specifications:

  • Mifare 13.56 MHz proximity reader
  • Supports 1kB MF cards and key fobs, Bluetooth
  • Compatible with Neo-IP-64 series control panels
  • Communicates with the control panel via the RopamNET bus
  • Supply voltage: 9-14 VDC (from the RopamNET bus)
  • 2 Inputs: In1 NO, In2 NC
  • 1 Relay and transistor output
  • System status LED indicators
  • Housing tamper protection
  • Surface-mounted ABS plastic housing
  • Dimensions: 80x80x20 [mm]
  • Color: White
Download
User manual 1.04 MB
