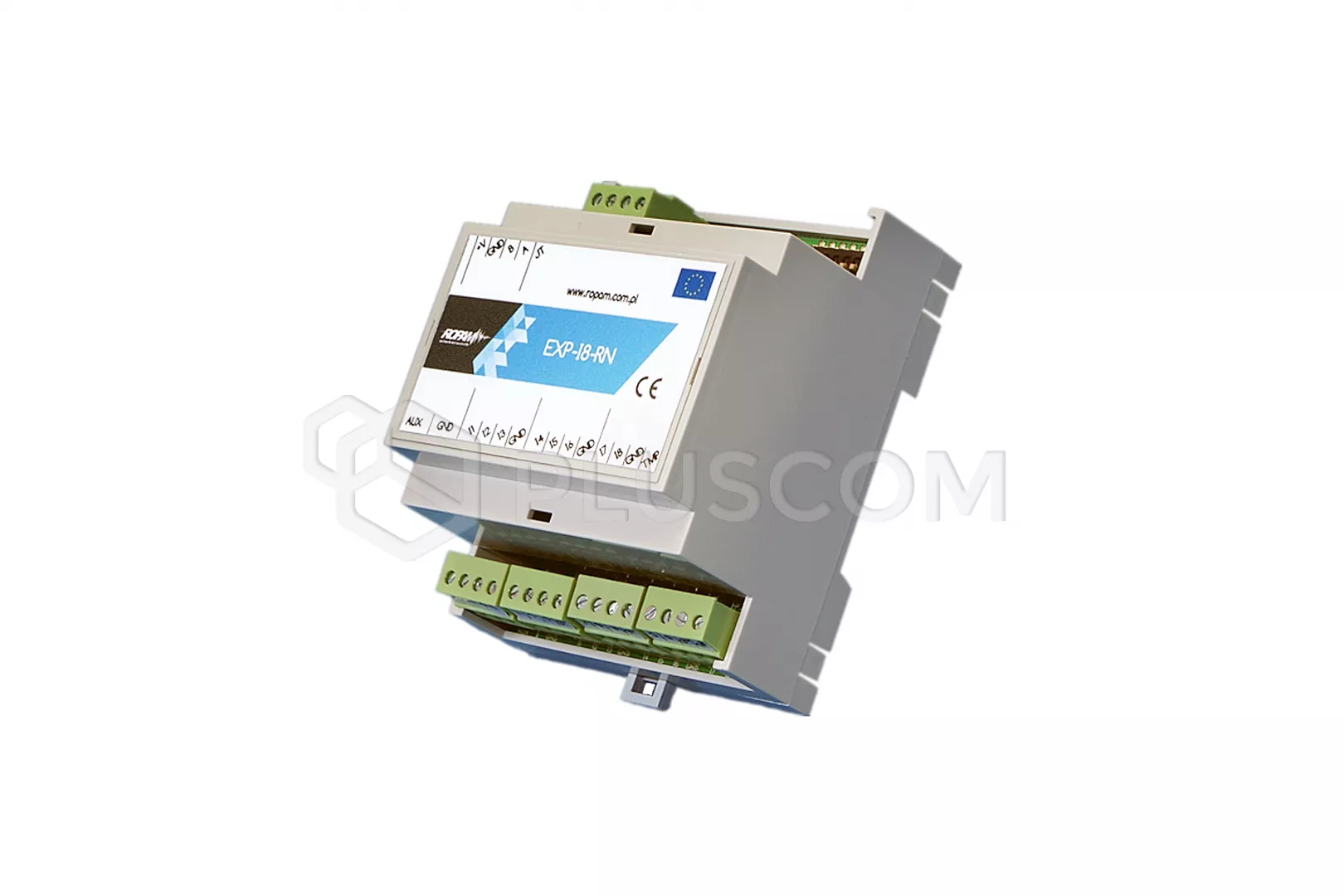

Ropam EXP-I8-RN-D4M Inputs module Expander in DIN housing

64,76 EUR including 23.00% VAT
Product code: #21916
Manufacturer: Ropam
  • DIN rail housing (4M)
  • 8 additional inputs for the NeoGSM-IP / PS and OptimaGSM / PS control panels
  • Operation configuration 2EOL / NC, 2EOL / NO, EOL, NC, NO, (NO for SimplePLC)
  • System module on the system bus
  • Detachable clamp connectors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam PSR-ECO-2012 Intelligent, buffer type supervised AC-DC power supply

Ropam EXP-I8-RN Inputs module Expander in DIN housing


EXP-I8-RN is an input module compatible with a control panel NeoGSM-IP / IP-64, OptimaGSM, HubSimplePLC
The module increases the number of entries in the system by eight . We connect the module no additional power supply is required to the control panel via connector X2 . It is a system module on the system bus (-RN RopamNET).
The module is in a DIN housing with a width of 2 DIN modules

PROPERTIES
  • 8 additional zones in the system (numbering I13-I20),
  • 2EOL / NC, 2EOL / NO, EOL, NC, NO,
  • operation configuration
  • system module on the system bus (-RN RopamNET)
  • bus length up to 300m
  • configuration, properties and types of reactions like NeoGSM-IP-64 inputs
  • detachable compression fittings

PTECHNICAL PARAMETERS:

  • DC 9-14V power supply from + KB, GND connector
  • power consumption: 20mA / 40mA
  • inputs I1-I8: NO, NC, EOL, 2EOL / NC, 2EOL / NC
  • operation signaling by means of a LED diode
  • working conditions: class II (-10 ° C ... 55 ° C)
  • dimensions: 67.5x25x87mm (+ mounting sleeves, distance 5mm)
