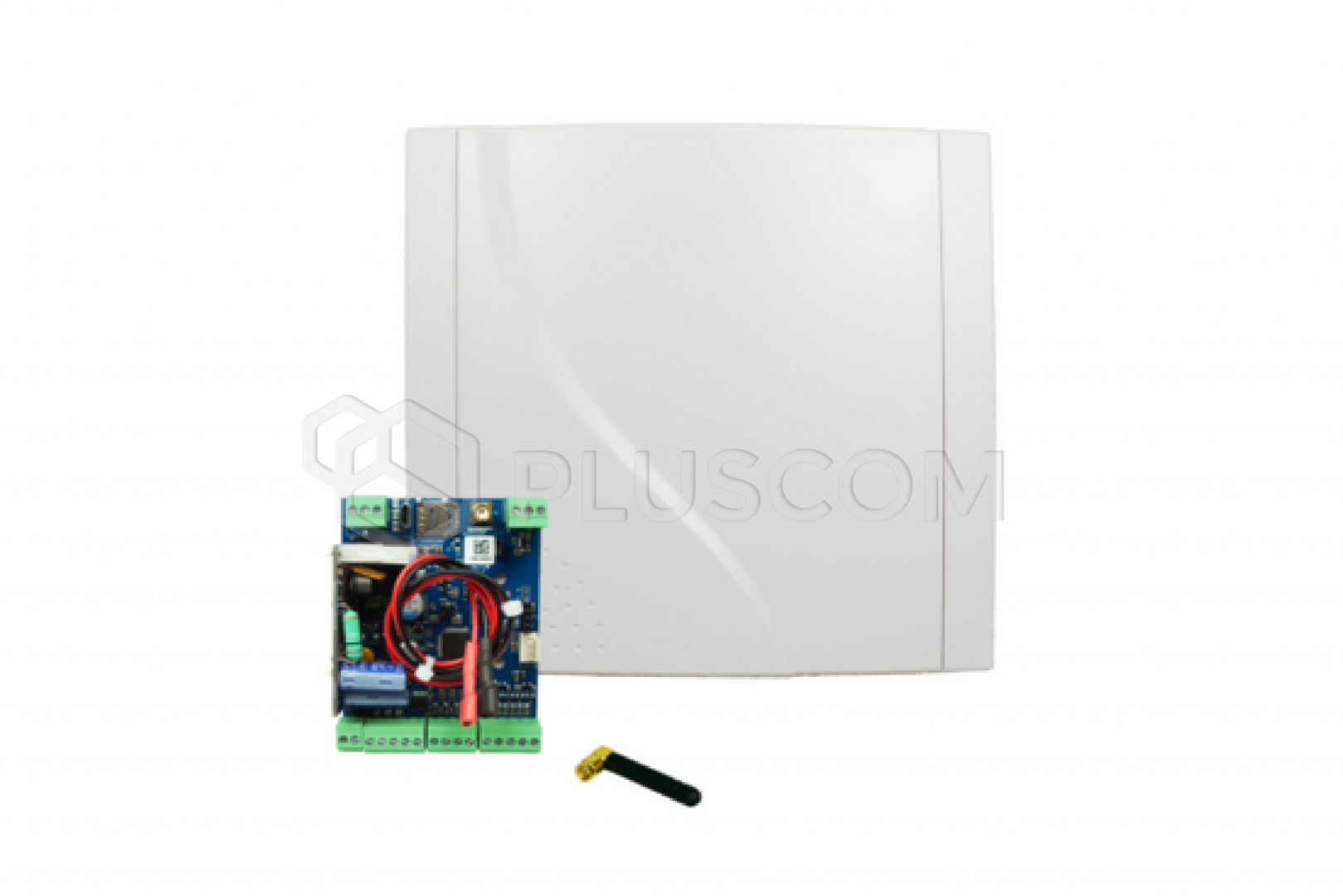

Ropam BasicLTE-PS-SET LTE module in a surface-mounted housing with AC/DC power supply and GSM/LTE antenna

Ropam BasicLTE-PS-SET LTE module in a surface-mounted housing with AC/DC power supply and GSM/LTE antenna

Notification and control module with alarm control panel functions. The built-in LTE modem enables data transmission using 4G and 2G technologies. Thanks to its modular design, it can be expanded with an EXP-RF radio receiver. The BasicLTE-PS can operate independently or as an extension of other systems.

The kit includes:

• BasicLTE-PS communication module
• PS-3024 power supply
• AT-GSM-MINI90 antenna
• O-R3P surface-mount housing

FEATURES:

• Alarm module – alarm control panel functions
• Intuitive visualization and control of alarm control panels
• Built-in LTE modem supporting 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
• Event notifications via: SMS/CALL/EMAIL/PUSH RopamBasic app
• Remote control via: SMS/CLIP/DTMF/RopamBasic app
• Supports up to 8 users: 8 phone numbers, 8 email addresses
• Can be expanded with an EXP-RF radio receiver, allowing the module to be controlled using TR-4H series remote controls
• Memory for up to 1000 events with overwriting
• Supports TSR and RHT-2 series temperature and humidity sensors
• Automatic prepaid card control with minimum balance notifications
• RTC clock, calendar, synchronization with LTE network or NTP servers
• BasicLTEManager configuration program for management:
  – local via micro USB
  – remote via the RopamBridge (LTE) server
• Built-in LogicProcessor for creating advanced logic and arithmetic functions – 10 independent logical conditions – 10 time relays – 4 calendar timers
• Dedicated free RopamBasic mobile app – available for download on iOS and Android
• GPRS monitoring for security agency monitoring stations, compatible with RMS or Kronos NET stations/servers

Technical specifications:

• Built-in LTE 4G/2G modem
• Number of inputs: 8
  – 6 NO/NC inputs
  – 2 NO/NC or analog 0-10V/4-20mA inputs
• FAC input for AC power control
• Number of outputs: 4
  – 1 relay output
  – 3 OC outputs (0.7A)
• Protected AUX power output (1A)
• 4 timers with calendar
• SMA antenna socket
• Detachable terminal connectors
• Supports up to 8 voice messages
• MicroUSB port for programming and updates
• NanoSIM card slot
• 230V/AC power supply – 24V/1.25A power supply included

BasicLTE communication modules, due to their design and functions, are designed for integration with other devices. Thanks to the built-in LTE modem, event transmission and system control are possible via SMS, CLIP, DTMF, and email.
