Ropam Basic4G-PS-SET Set (LTE module in surface-mounted housing with AC/DC power supply and GSM/LTE antenna)

158,50 EUR including 23.00% VAT
Product code: #40939
Manufacturer: Ropam
  • Power supply 230V/AC – 24V/1.25A power supply included
  • Number of inputs: 8 – 6 NO/NC inputs – 2 NO/NC or analog 0-10V/4-20mA inputs
  • Number of outputs: 4 – 1 relay output – 3 OC outputs (0.7A)
  • SMA antenna socket
  • Supports up to 8 voice messages
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Ropam Basic4G-PS-SET Set (LTE module in surface-mounted housing with AC/DC power supply and GSM/LTE antenna)


Notification and control module with alarm control panel functions. The built-in LTE modem enables data transmission using 4G and 2G technologies. Thanks to its modular design, it can be expanded with an EXP-RF radio receiver.
Basic4G-PS-SET can operate independently or as an extension of other systems.

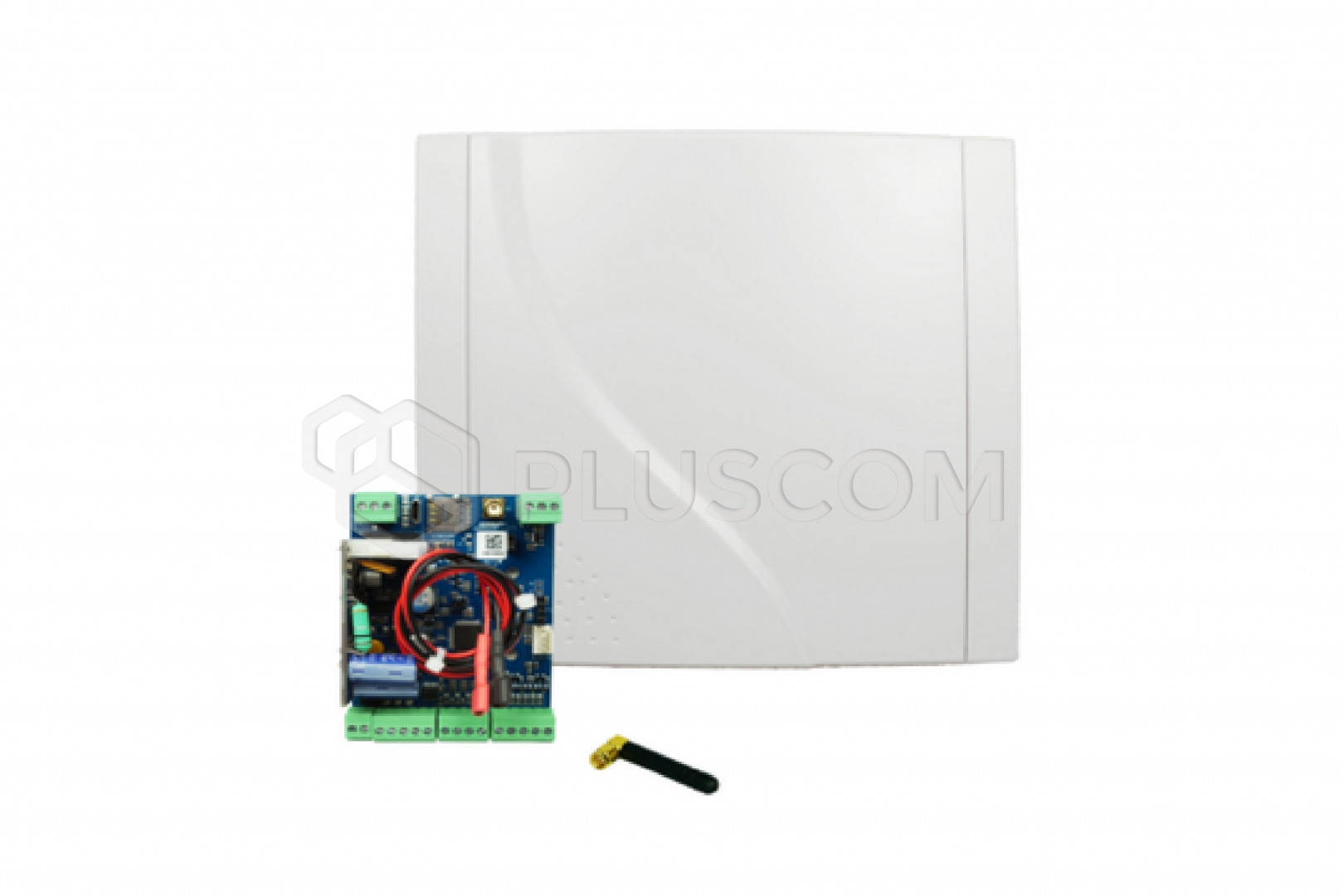

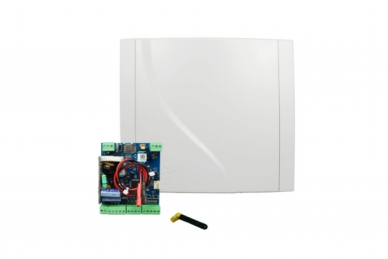

The kit includes:

  • Basic4G-PS communication module
  • PS-3024 power supply
  • AT-GSM-MINI90 antenna
  • O-R3P surface-mount housing

FEATURES:

  • Alarm module – alarm control panel functions
  • Intuitive visualization and control of alarm control panels
  • Built-in LTE modem with support for 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
  • Event notifications via: SMS/CALL/EMAIL
  • Remote control via SMS/CLIP/DTMF
  • Supports up to 8 users: 8 phone numbers, 8 email addresses
  • Can be expanded with an EXP-RF radio receiver, allowing the module to be controlled using TR-4H series remote controls
  • Memory for up to 1000 events with overwriting
  • Supports TSR and RHT-2 series temperature and humidity sensors
  • Automatic prepaid card monitoring with minimum balance notifications
  • RTC clock, calendar, synchronization with LTE network or NTP servers
  • BasicLTEManager configuration program for management:
    – local via micro USB
    – remote via RopamBridge (LTE) server
  • Built-in LogicProcessor for creating advanced logic functions and arithmetic functions
    – 10 independent logical conditions
    – 10 time relays
    – 4 calendar timers
  • Operation via the RopamBasic mobile app – activation required
  • GPRS monitoring for a security agency monitoring station, interoperability with an RMS or Kronos NET station/server

Technical specifications:

  • Built-in LTE 4G/2G modem
  • Number of inputs: 8
    – 6 NO/NC inputs
    – 2 NO/NC or analog 0-10V/4-20mA inputs
  • FAC input for AC power control
  • Number of outputs: 4
    – 1 relay output
    – 3 OC outputs (0.7A)
  • Power output AUX protected (1A)
  • 4 timers with calendar
  • SMA antenna socket
  • Detachable terminal connectors
  • Supports up to 8 voice messages
  • MicroUSB port for programming and updates
  • NanoSIM card slot
  • 230V/AC power supply – 24V/1.25A power supply included
  • Holds in a TH35 rail, 4-module wide enclosure
