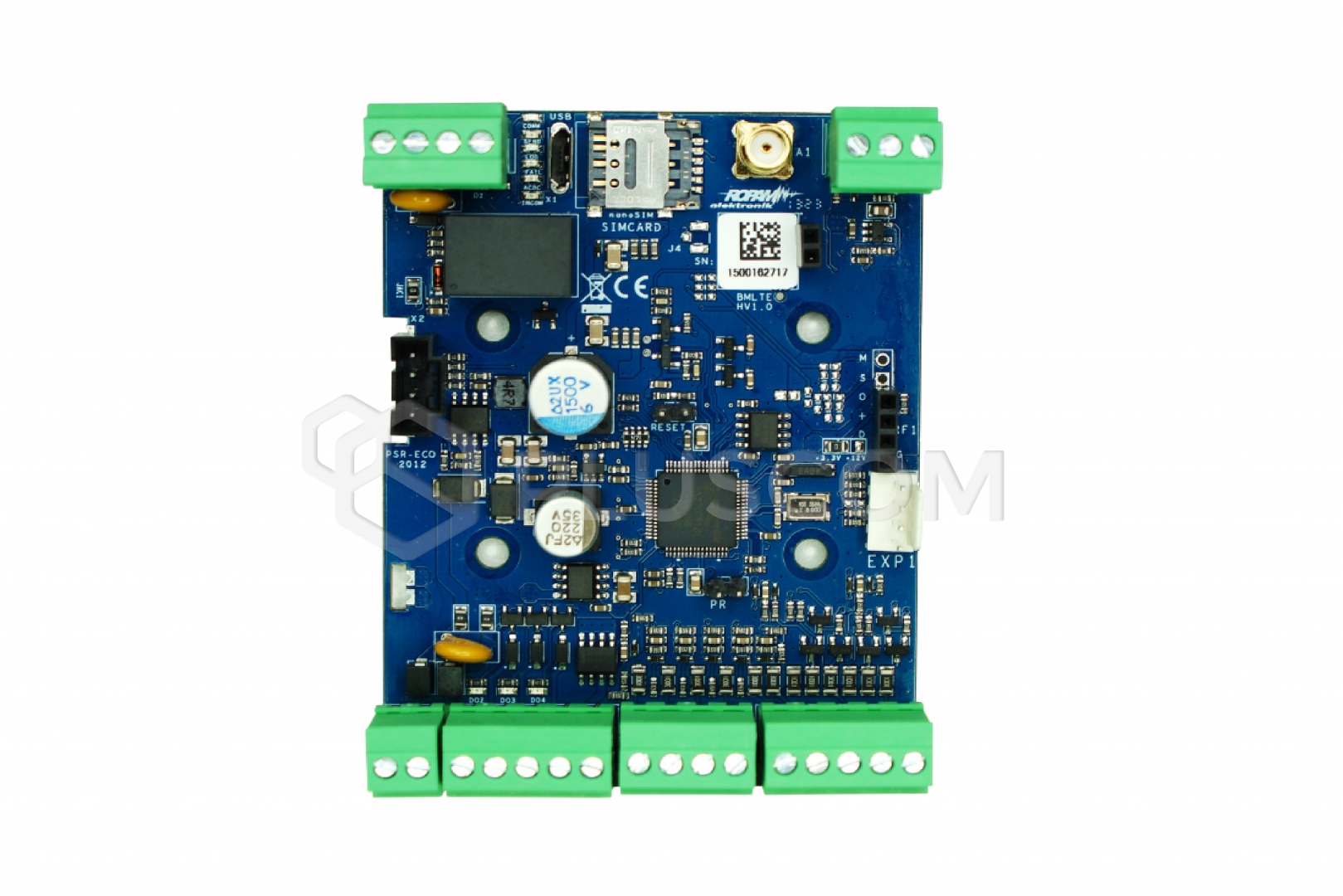

Ropam Basic4G LTE communication module (2G/4G)

108,13 EUR including 23.00% VAT
Product code: #40934
Manufacturer: Ropam
  • 12V power supply
  • Built-in LTE 4G/2G modem
  • Number of inputs: 8 – 6 NO/NC inputs – 2 NO/NC or analog 0-10V/4-20mA inputs
  • Number of outputs: 4 – 1 relay output – 3 OC outputs (0.7A)
  • Supports up to 8 voice messages
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Ropam Basic4G LTE communication module (2G/4G)


Notification and control module with alarm control panel functions. The built-in LTE modem enables 4G and 2G data transmission. Thanks to its modular design, it can be expanded with an LCD-HMI-D4M graphic display and an EXP-RF radio receiver. The Basic4G can operate standalone or as an extension to other systems.

FEATURES:

  • Alarm module – alarm control panel functions
  • Intuitive visualization and control of alarm control panels
  • Built-in LTE modem with 4G and 2G network support (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
  • Event notifications via: SMS/CALL/EMAIL
  • Remote control via: SMS/CLIP/DTMF
  • Supports up to 8 users: 8 phone numbers, 8 email addresses
  • Can be expanded with an EXP-RF radio receiver, allowing the module to be controlled using TR-4H series keyfobs.
  • Memory for up to 1000 events with overwriting
  • Support for TSR and RHT-2 series temperature and humidity sensors
  • Automatic prepaid card monitoring with minimum balance notifications
  • RTC clock, calendar, synchronization with LTE network or NTP servers
  • BasicLTEManager configuration program for management:
    – local via micro USB
    – remote via RopamBridge (LTE) server
  • Built-in LogicProcessor for creating advanced logic and arithmetic functions
    – 10 independent logical conditions
    – 10 time relays
    – 4 calendar timers
  • Operation via the RopamBasic mobile application – activation required
  • GPRS monitoring for a security agency monitoring station, cooperation with the station/server RMS or SIA-IP* in preparation

Technical specifications:

  • Built-in LTE 4G/2G modem
  • Number of inputs: 8
    – 6 NO/NC inputs
    – 2 NO/NC or analog 0-10V/4-20mA inputs
  • FAC input for AC power control
  • Number of outputs: 4
    – 1 relay output
    – 3 OC outputs (0.7A)
  • Fuse-protected AUX power output (1A)
  • 4 timers with calendar
  • SMA antenna socket
  • Detachable terminal connectors
  • Supports up to 8 voice messages
  • MicroUSB port for programming and updates
  • NanoSIM card slot
  • 12V power supply
