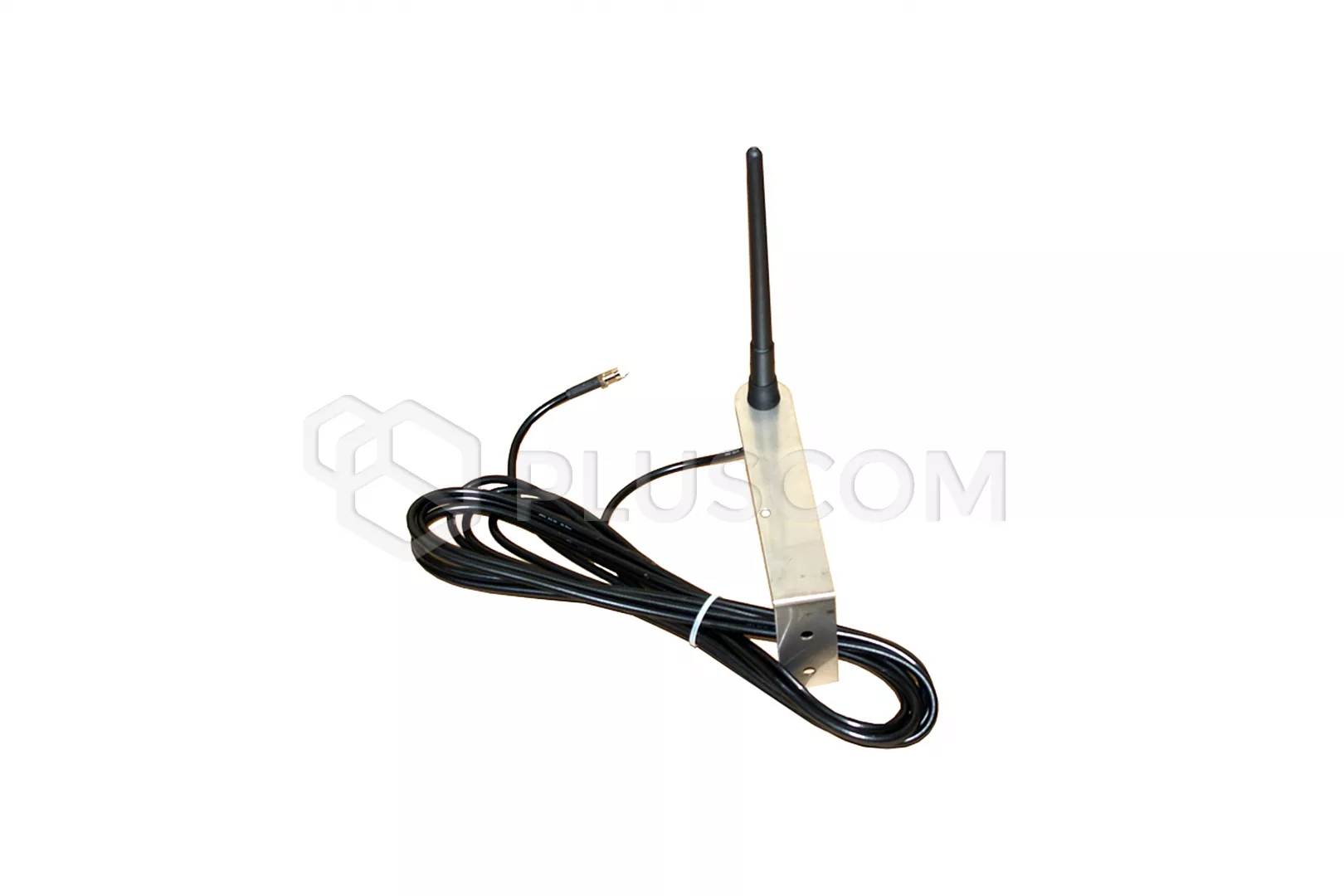

Ropam AT-GSM-WALL20 GSM ANTENNA for permanent installation

68,50 EUR including 23.00% VAT
Product code: #21933
Manufacturer: Ropam
  • fixed installation on a wall or a mast
  • connector: SMA, cable length 20m
  • gain: 0dBi with cable 5m
  • polarization: vertical

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Ropam AT-GSM-WALL20 GSM ANTENNA for permanent installation


AT-GSM-WALL GSM antenna, mounting, included installation bracket, semi-flexible full ½ λ (no groundplane needed), 20m cable length

Special GSM antenna with installation bracket, especially made for stationary wireless applications GSM/GPRS.

Antenna suitable for indoor and outdoor usage (wall, mast).
PARAMETERS:
  • frequency range: dual-band, 900/1800 MHz
  • assembly: installation bracket-stainless steel,
  • connector: SMA, cableLow Loss H155-20m length
  • gain: 0dBi (with 20m cable)
  • VSWR <1.5
  • impedancja: 50 Ω
  • polarization: vertical
  • antenna dimensions: ø12x160mm
  • bracket dimensions: 165x80x40mm
  • colour: black, steel
  • operating temparature: -30°C...90°C
