Ropam AT-GSM-LOG-EC ANTENA GSM for permanent installation

61,65 EUR including 23.00% VAT
Product code: #21934
Manufacturer: Ropam
  • directional YAGI antenna
  • fixed installation on a wall or a mast
  • connector: SMA, cable length 10m
  • polarization: V (80°)
  • radiator cover

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam AT-GSM-EXT3 Antenna extension 50 Ohm Ropam AT-GSM-EXT20 Antenna extension 50 Ohm Ropam AT-GSM-EXT5 Antenna extension 50 Ohm

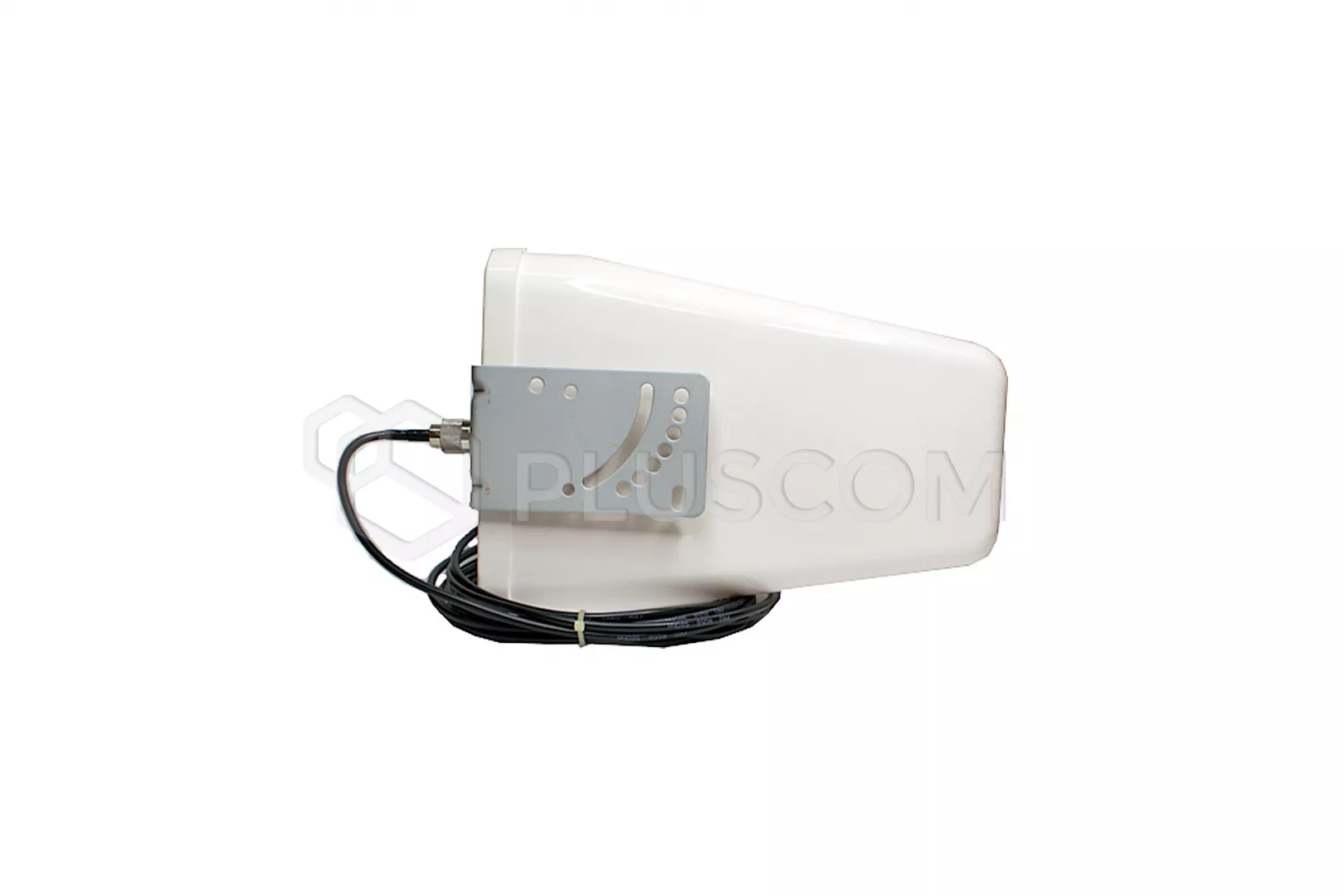

Ropam AT-GSM-LOG-EC ANTENA GSM for permanent installation


The AT-GSM-LOG-EC antenna works with GSM modules and alarm control panels of ROPAM. Directional YAGI natena is equipped with a radiator cover, which perfectly protects it against weather conditions and provides work stability. Intended for external use.

Fastening is done by a steel bracket to the wall or mast.

PARAMETERS:
  • frequency range: 800-2500 MHz
  • assembly: installation bracket-stainless steel
  • connector: SMA, LMR240/H155-10m
  • gain: 9dBi
  • VSWR <1.5
  • impedancja: 50 Ω
  • polarization: V 80°
  • dimensions: 29.3x20.8x6.4cm
  • colour: white, steel
