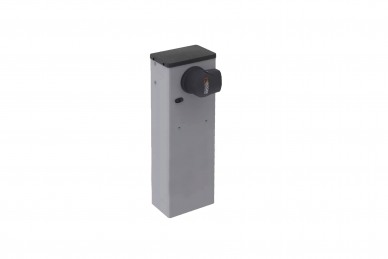

Roger Technology WAY5 Electromechanical Barrier Column

1558,07 EUR including 23.00% VAT
Product code: #43240
Manufacturer: Roger Technology
  • 24V brushless motor
  • Max arm length: up to 5m
  • Built-in B70/1T control unit
  • For continuous operation
  • Built-in digital encoder
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,56 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CRA/50 Column for G90 photocells, height 50cm Roger Technology BA/75/5 Aluminum Elliptical Arm 5m Roger Technology CRA/100 Column for G90 photocells, height 100cm Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology CRA/BAR Side column for G90 photocells 53cm Roger Technology Two-chamber LED 24V semaphore Roger Technology BARK/02 Painted aluminum ladder, 2m Roger Technology R99/BASB20 Reflective stickers (20 pcs.) Roger Technology BAMS/01 Movable arm support Roger Technology KT242 Conduit with magnet mounting for cable management

Roger Technology WAY5 Electromechanical Barrier Column


  • 24V brushless electromechanical barrier column
  • digital encoder
  • built-in B70/1T control unit
  • foundation base
  • arm holder
Roger Technology WAY5 Electromechanical Barrier Column

Roger Technology WAY5 Electromechanical Barrier Column
The barrier guarantees intensive operating cycles and can accommodate a boom up to 5 meters long. It is equipped with a B70/1T control unit, a digital encoder, a mounting base, and a boom holder.

An innovative and precise encoder mounted on the reducer shaft allows for arm movement control with an accuracy of a tenth of a degree. It also allows the barrier to operate without restarting after a power failure or manual release.

To ensure the strength of the entire barrier and high stability during maneuvers, high-quality steel and bronze are used. A windproof aluminum arm with an elliptical cross-section and internal ribs further enhances stability. The housing is made of carbon steel, protected against corrosion and painted.

SPECIAL FEATURES
  • 24V brushless motor
  • Intensive use
  • Continuous use 2800 cycles per day
  • Alloy gear, no plastic, no Teflon, no nylon
  • Low energy consumption
  • Very quiet operation
  • Sturdy construction

TECHNICAL DATA:

  • Arm: up to 5 m
  • Power supply: 230 V AC - 50 Hz
  • Motor power supply: 24 V
  • Starting power: 305 W
  • Nominal power: 180 W
  • Use: Intensive
  • Force: 140 Nm
  • Operating temperature: -20°C / +55°C
  • Protection rating: IP54
  • Gear motor type: Self-locking
  • Opening time to 90°: 5-17 s
  • Control unit (built-in): B70/1T, 24 V DC
  • Encoder: Built-in digital + magnetic digital SENSORED, 4096 pulses per revolution
  • Unlocking system: Front key
  • Number of cycles per day (opening/closing - 24 hours non-stop): 2800 cycles
  • Dimensions: 325 x 211 x 1010 mm
  • Weight: 44 kg
