Roger Technology ULK/1200/HS Kit for gates up to 3.3m high

Roger Technology ULK/1200/HS Kit for sectional doors up to 3.3m high and 18m2

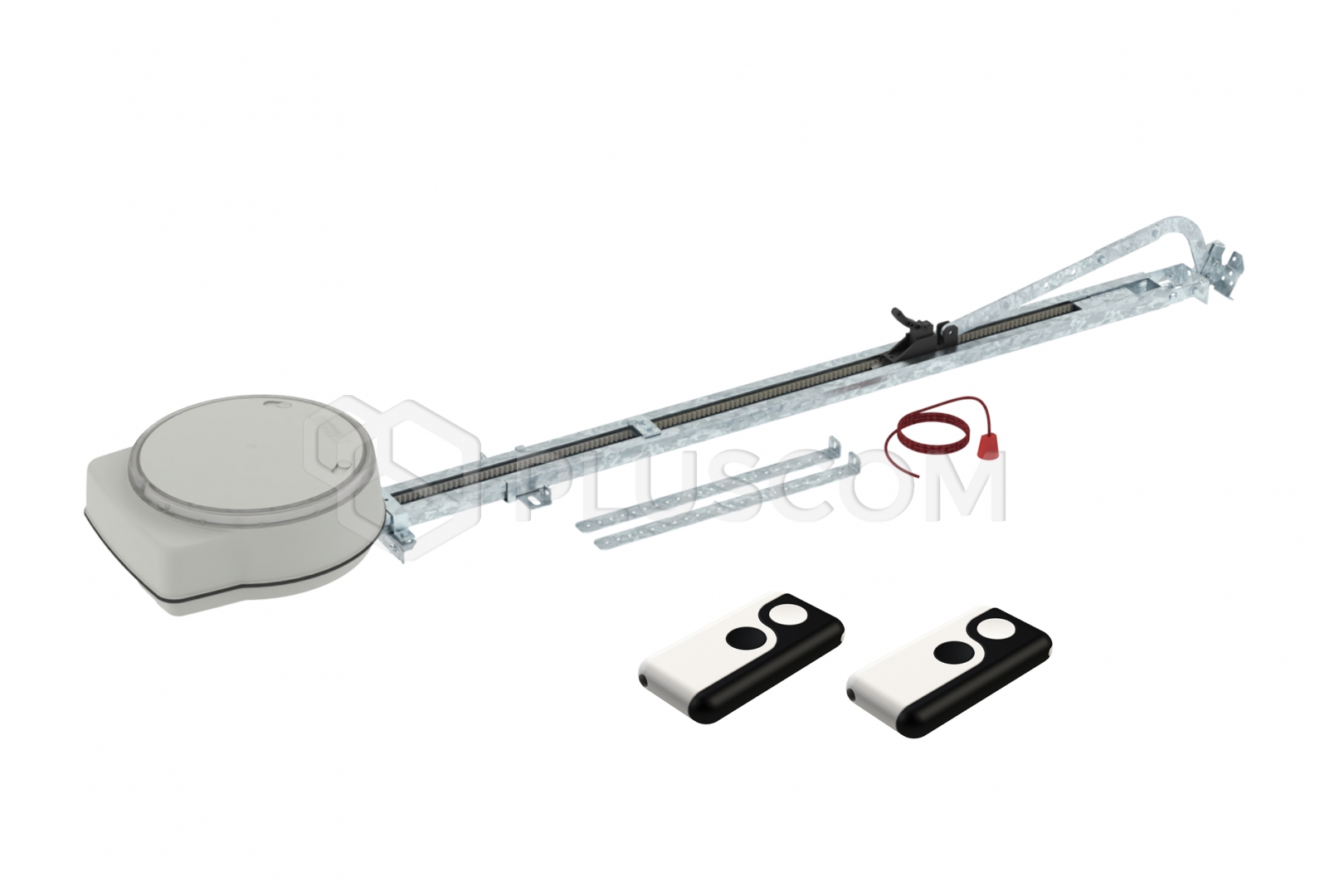

The set consists of: ULK/1200/HS - drive with control unit and radio receiver UL/G330 - guide with 3.3 m belt Roger Technology SYNUS/2 2-channel copy remote control x 2 pcs

Roger Technology ULK/1200/HS Kit for gates up to 3.3m high

Kit for sectional garage doors up to 18m2 and 3.3m high. The ULK/1200/HS operator has a built-in control unit with an integrated radio receiver, a 36V motor with a force of 1200N. It comes with a 3.3m single-piece steel guide with a reinforced belt and two 2-channel SYNUS/2 remote controls.

The operator is ideal for multi-car garages with sectional doors up to 20m2 and a maximum height of 3.3m.

Special features:

• 36V brushless motor
• Belt guide
• Low power consumption in standby mode 0.5W
• Intensive use
• Speed: 16.6 - 30cm/s

TECHNICAL DATA:

• Power supply: 230V AC
• Power consumption in standby mode: 0.5W
• Motor power supply: 36V
• Rated power: 240 W
• Use frequency: intensive
• Force: 1200 N
• Operating temperature range: -20°C to +55°C
• Protection class: IP40
• Gear type: Self-locking
• Operating speed: 16.6 - 30cm/s
• Control unit: integrated B70/1THP
• Encoder: Magnetic, digital, SENSORED, 4096 PPR
• Dimensions: Ø351 x 379 x 174mm
• Weight: 8.7 kg
