Roger Technology TW110/1000/HS kit for sliding gates up to 1000kg

1777,74 EUR including 23.00% VAT
Product code: #43221
Manufacturer: Roger Technology
  • Gate weight max 1000
  • 36V brushless motor
  • Drive for mounting in a post
  • For intensive work
  • 2 x E80/TX52R/2 remote control, R90/F2ES photocells, FIFTHY/24/OR lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology MC787 Magnetic Limit Switch Kit and Brackets Roger Technology MC786 Magnetic Limit Switches Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack

Roger Technology TW110/1000/HS Kit for sliding gates up to 1000 kg, for installation in a gate post

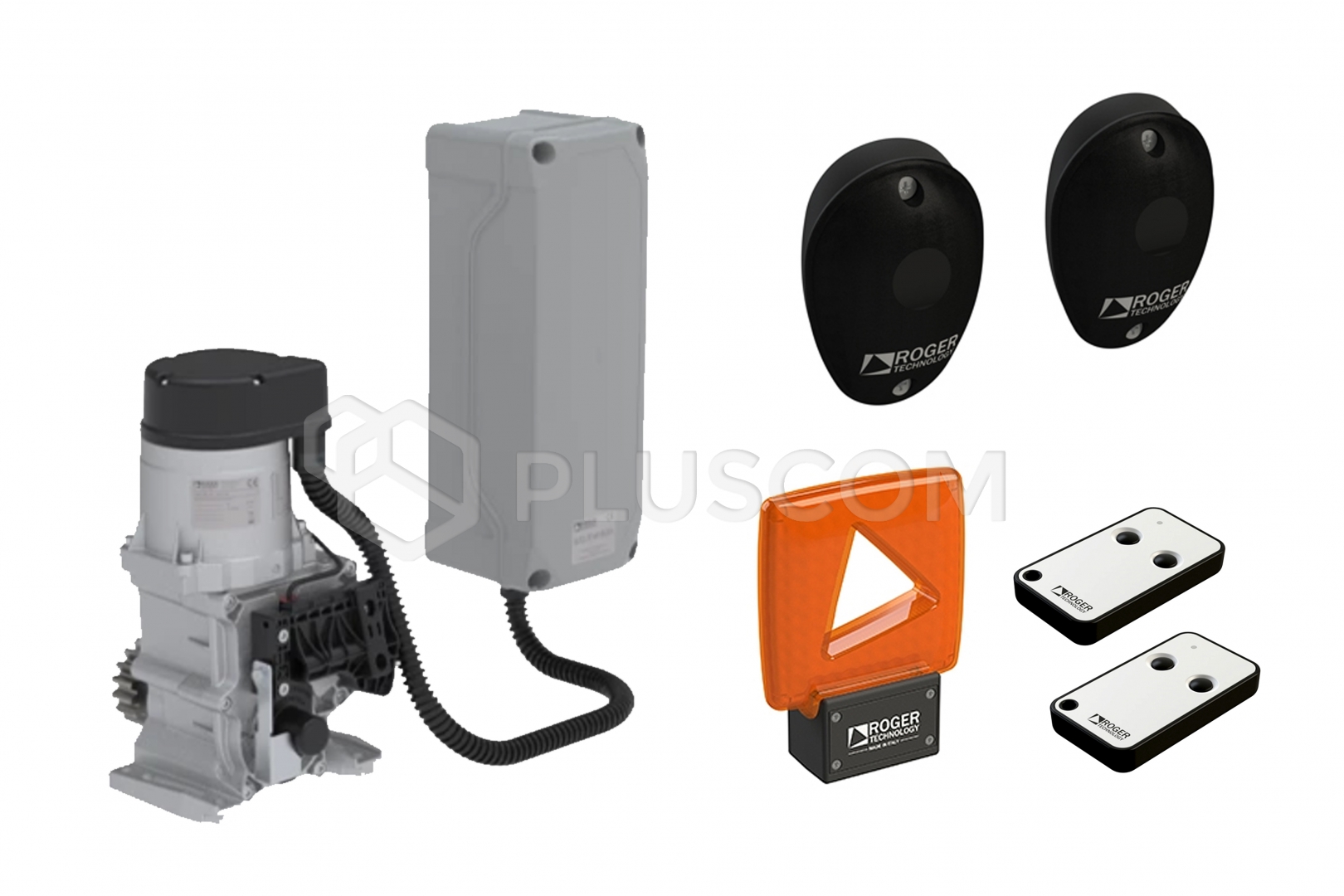

The kit consists of:
Roger Technology TW110/1000/HS kit for sliding gates up to 1000kg

Roger Technology TW110/1000/HS kit for sliding gates up to 1000kg
Column-mounted operator with a HIGH SPEED brushless motor 36V (25m/min) is suitable for very intensive use. Designed for sliding gates weighing up to 1000 kg, with an absolute encoder, a B70/1THP control unit separated from the drive (by a maximum of 1 m), and a dual fixed/rolling code radio receiver, without limit switches.

FEATURES:

  • Maximum gate weight: 1000 kg
  • Post-mounted drive
  • 36 V brushless motor
  • High Speed version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High operating smoothness
  • Very low energy consumption
  • Solar power supply can be configured
The actuator set is supplemented with two 2-channel E80/TX52R/2 remote controls with a copy function, operating on 433.92MHz frequency, a set of R90/F2ES photocells based on infrared technology and a FIFTHY/24/OR signal lamp.

TECHNICAL DATA:

  • Maximum gate weight: 1000 kg
  • Power supply: 230 V AC - 50 Hz
  • Motor power supply: 36 V
  • Nominal power: 240 W
  • Use: Intensive
  • Force: 1150 N
  • Operating temperature: -20°C / +55°C
  • Protection rating: IP44
  • Gear motor type: Self-locking
  • Speed: 25 m/min (0.42 cm/s)
  • Control unit: B70/1THP
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z20/mod.4
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Dimensions: 166 x 134.4 x 214.5 mm
  • Packaged product weight: 12.5 kg
