Roger Technology SET WAY54 - set with WAY4 with 4m arm

1745,03 EUR including 23.00% VAT
Product code: #43237
Manufacturer: Roger Technology

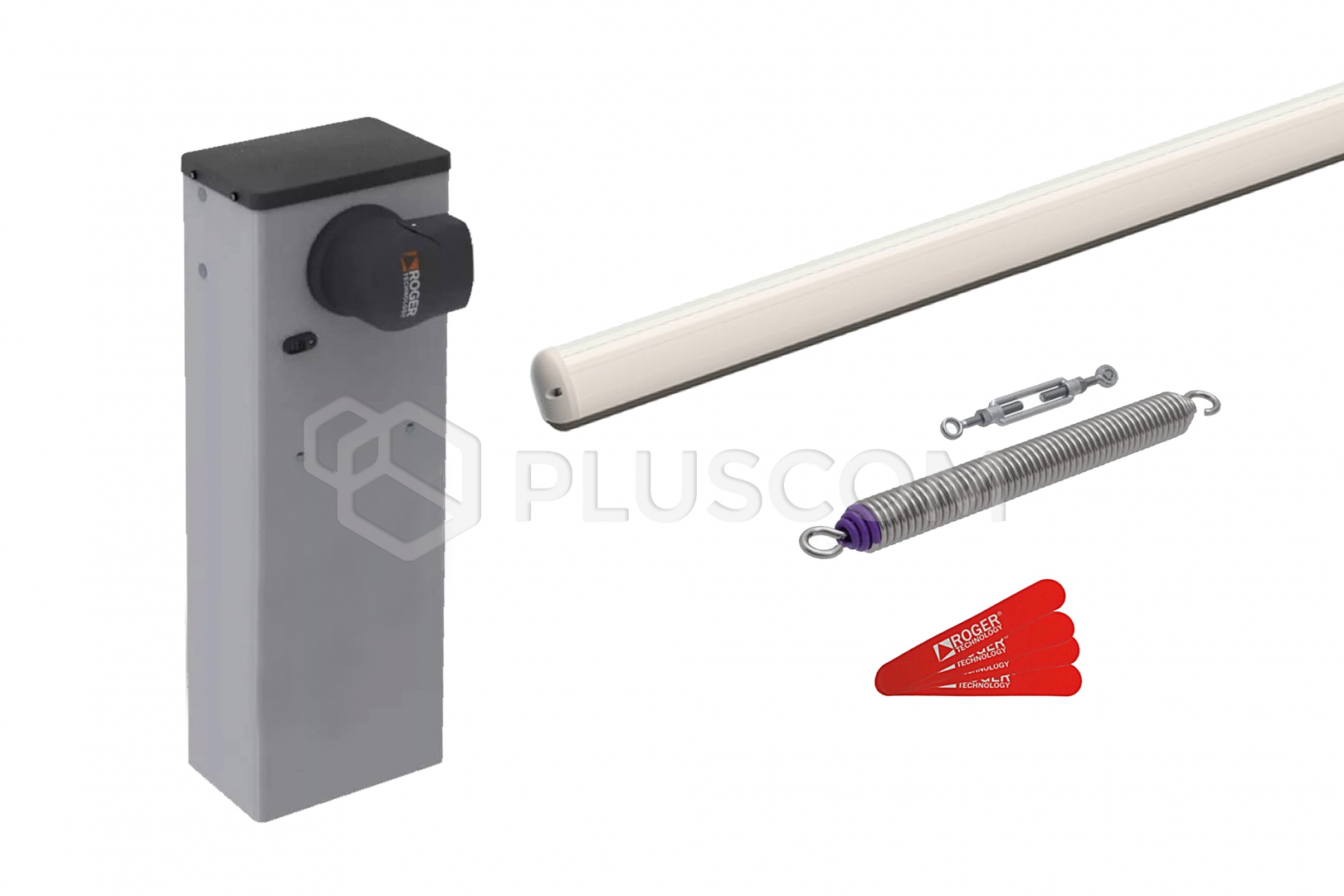

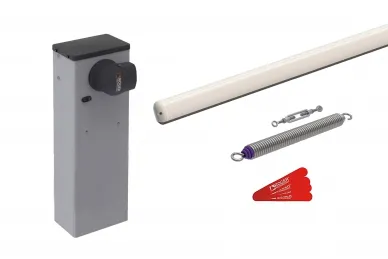

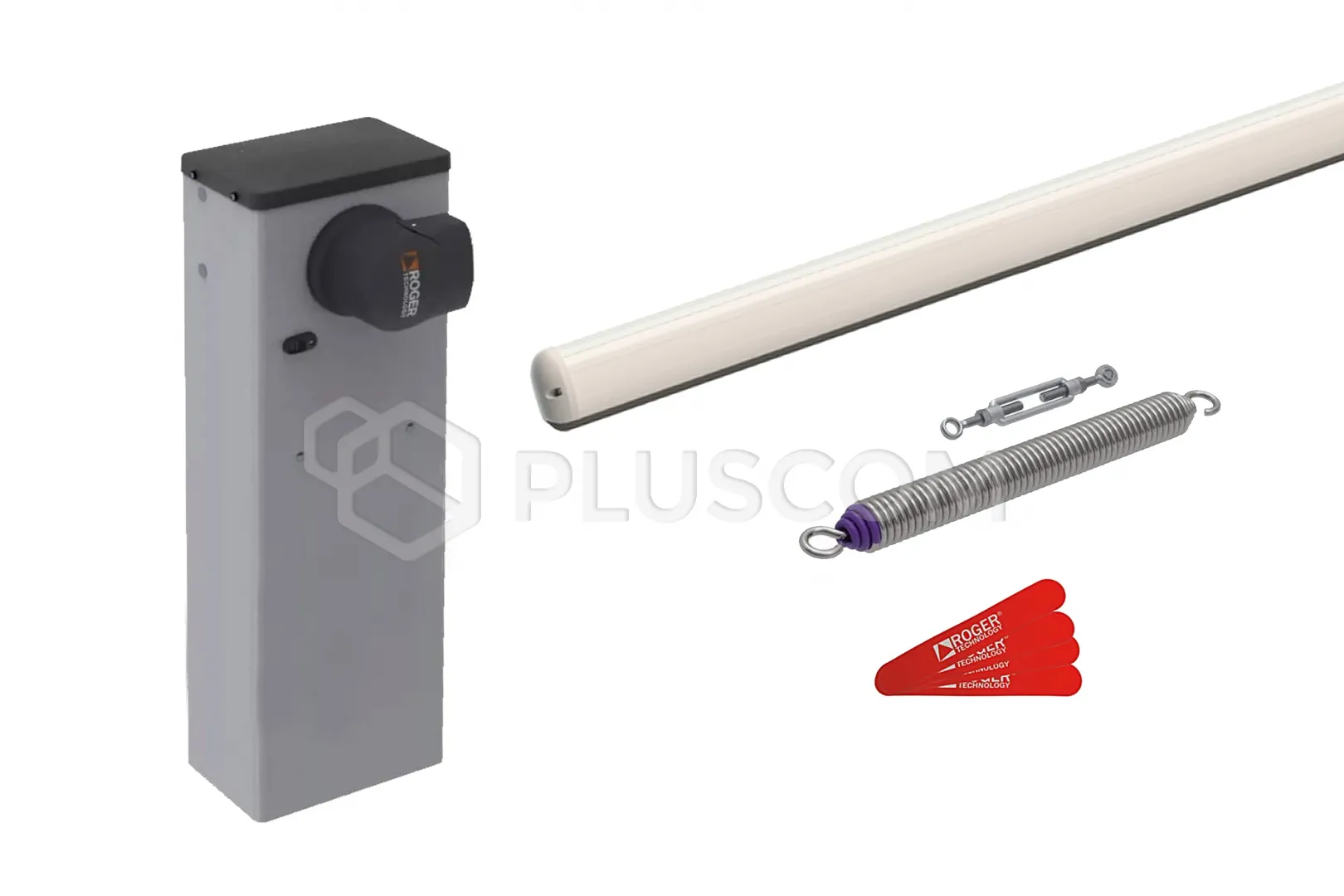

  • KIT COMPOSITION:
  • WAY/004 - Barrier column
  • SP/51/G10 - Yellow spring Ø 51mm
  • BA/68/4 Elliptical arm 4m
  • R99/BASB20 - Reflective stickers
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology DLD2/24 Induction loop detector 2-channel 24V DC Roger Technology ALED/4C LED lighting for the 4 m arm Roger Technology DLD1/24 Induction loop detector 1-channel 24V DC Roger Technology CRA/50 Column for G90 photocells, height 50cm Roger Technology CRA/100 Column for G90 photocells, height 100cm Roger Technology CRA/BAR Side column for G90 photocells 53cm Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology BARK/02 Painted aluminum ladder, 2m Roger Technology Two-chamber LED 24V semaphore Roger Technology BAMS/01 Movable arm support

Roger Technology SET WAY5 Automatic Barrier Kit with 24V Brushless Motor and 5m Arm


KIT INCLUDES
Roger Technology SET WAY54 - set with WAY4 with 4m arm

Roger Technology SET WAY54 - set with WAY4 with 4m arm
The barrier guarantees intensive operating cycles and can accommodate a boom up to 4 meters long. It is equipped with a B70/1T control unit, a digital encoder, a mounting base, and a boom holder.

An innovative and precise encoder mounted on the reducer shaft allows for arm movement control with an accuracy of a tenth of a degree. It also allows the barrier to operate without restarting after a power failure or manual release.

To ensure the strength of the entire barrier and high stability during maneuvers, high-quality steel and bronze are used. A windproof aluminum arm with an elliptical cross-section and internal ribs further enhances stability. The housing is made of carbon steel, protected against corrosion and painted.

SPECIAL FEATURES
  • 24V brushless motor
  • Intensive use
  • Continuous use 4500 cycles per day
  • Alloy gear, no plastic, no Teflon, no nylon
  • Low energy consumption
  • Very quiet operation
  • Sturdy construction
The barrier is equipped with a 5m long BA/75/5 aluminum elliptical arm with protective rubber and prepared for LED lighting.
It is made of aluminum, ensuring resistance to mechanical damage and wear, as well as smooth operation.
It can be equipped with additional accessories such as warning stickers, ladders, and supports.

The SET WAY5 set includes a purple SP/56/G10 balancing spring with a diameter of 56 mm, designed for the 5m arm.

DANE TECHNICZNE:

  • Ramię: do 5 m
  • Zasilanie sieciowe: 230 V AC - 50 Hz
  • Zasilanie silnika: 24 V
  • Moc rozruchowa: 305 W
  • Moc znamionowa: 180 W
  • Użytkowanie: intensywne
  • Siła: 140 Nm
  • Temperatura pracy: -20°C / +55°C
  • Stopień ochrony: IP54
  • Typ motoreduktora: Samohamowny
  • Czas otwierania do 90°: 5-17 s
  • Centrala sterująca (wbudowana): B70/1T, 24 V DC
  • Enkoder: Wbudowany cyfrowy + magnetyczny cyfrowy SENSORED, 4096 impulsów na obrót
  • System odblokowania: Kluczyk frontalny
  • Ilość cykli na dobę (otwieranie/zamykanie - 24h non stop): 2800 cykli
  • Wymiary: 325 x 211 x 1010mm
  • Waga: 44 kg
