Roger Technology SET TW110/1600/HS Set

2034,80 EUR including 23.00% VAT
Product code: #40949
Manufacturer: Roger Technology
  • gate weight: up to 1600kg
  • 36V engine
  • drive for mounting in a post
  • speed: 21 m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/24/OR lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B71/BCHP/EXT Battery Pack Roger Technology MC787 Magnetic Limit Switch Kit and Brackets Roger Technology MC786 Magnetic Limit Switches Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology BI/BCHP Battery charging card for CTRL control panel

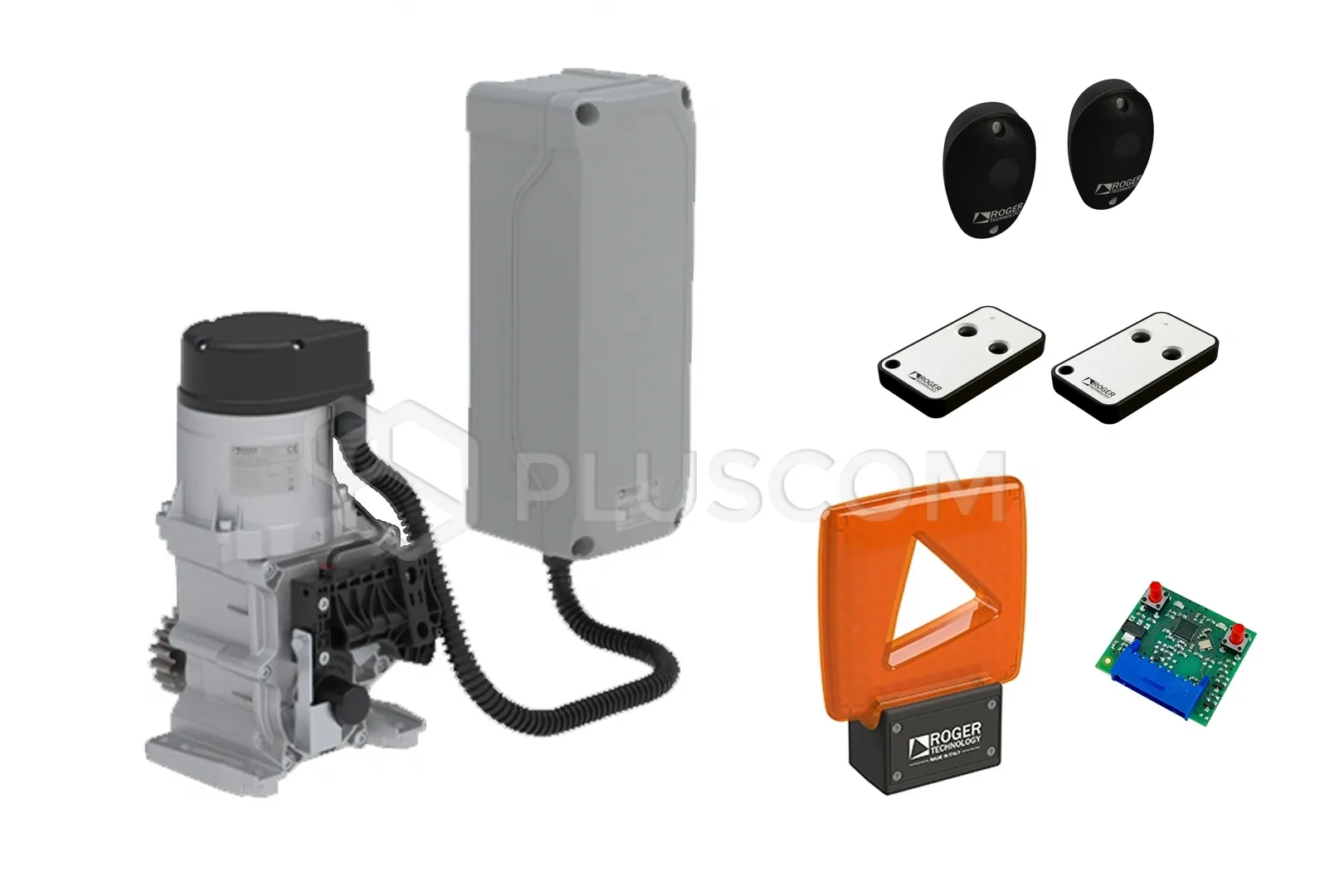

Roger Technology SET TW110/1600/HS Set with a 36V HIGH SPEED brushless motor drive for sliding gates up to 1600 kg, for installation in a post


The set consists of:
Roger Technology SET TW110/1600/HS Set

Roger Technology SET TW110/1600/HS Set
Column drive with HIGH SPEED 36V (21 m/min) brushless motor, for very intensive work, for sliding gates with a maximum weight of 1600 kg, with absolute encoder, with B70/1THP control unit separated from the drive by max. 1 m, without limit switches.

FEATURES:

  • Gate weight max 1600 kg
  • Drive for mounting in a post
  • 36 V brushless motor
  • High Speed version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with a fixed code of 433.92 MHz with a copy function, a set of R90/F2ES photocells, based on infrared technology and a LED signal lamp FIFTHY/24/OR 24V with a built-in 433.92 MHz antenna increasing the range of remote controls.

TECHNICAL DATA:

  • Maximum gate weight: 1600 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 36V
  • Nominal power: 240W
  • Use: Intensive
  • Force: 380 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 21 m/min (0.35 m/s)
  • Limit switches: -
  • Control unit (built-in): B70/1THP
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z17/mod. 4
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Dimensions: 185 x 160 x 333 mm
  • Weight: 17.4 kg
