Roger Technology SET TW110/1000/HS Set

1819,59 EUR including 23.00% VAT
Product code: #40948
Manufacturer: Roger Technology
  • gate weight: up to 1000kg
  • 36V engine
  • drive for mounting in a post
  • speed: 25m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/24/OR lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology MC787 Magnetic Limit Switch Kit and Brackets Roger Technology MC786 Magnetic Limit Switches Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack

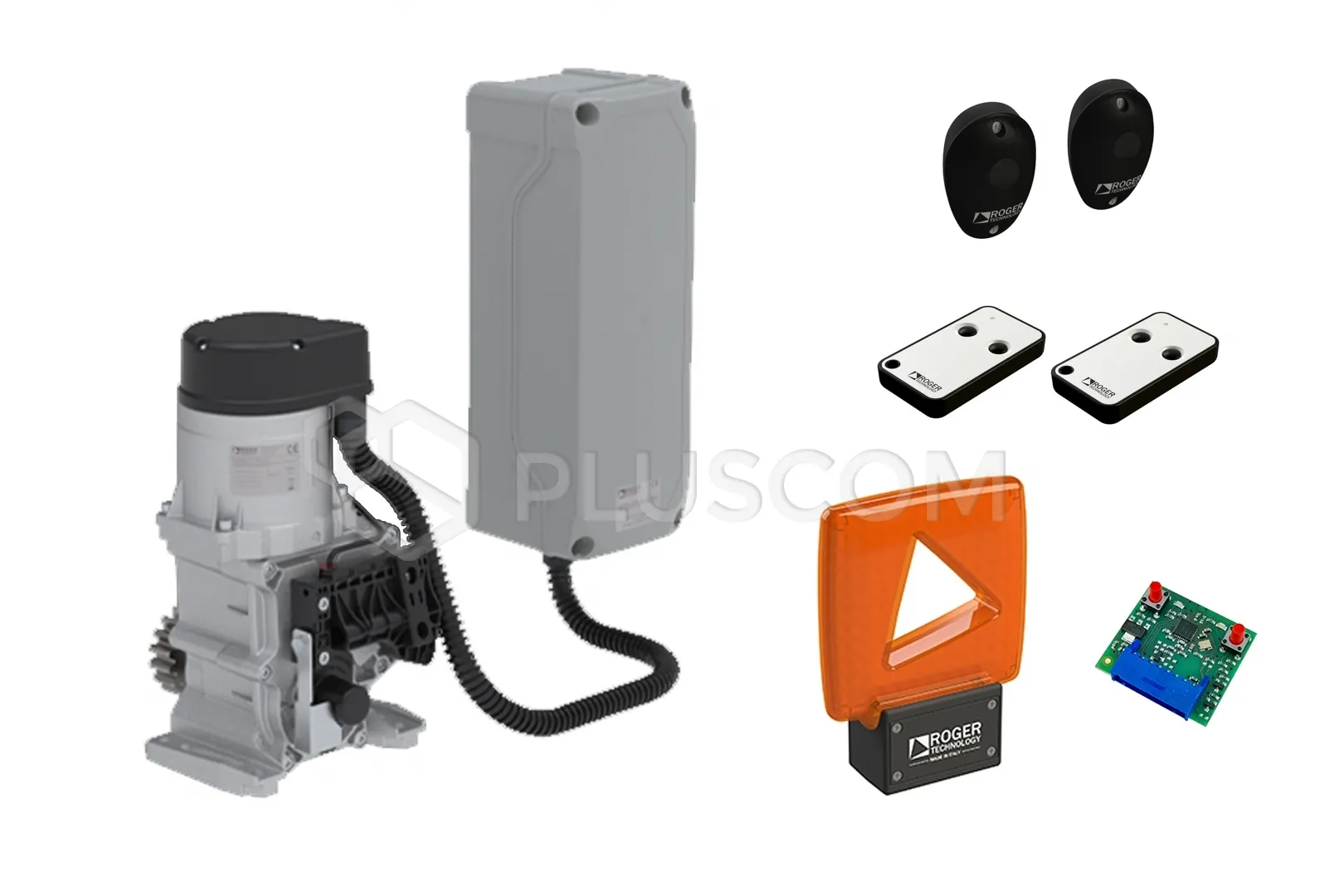

Roger Technology SET TW110/1000/HS Set with a 36V HIGHT SPEED brushless motor drive for sliding gates up to 1000 kg, for installation in a post


The set consists of:
Roger Technology SET TW110/1000/HS Set

Roger Technology SET TW110/1000/HS Set
Column drive with HIGH SPEED 36V (25 m/min) brushless motor, for very intensive work, for sliding gates with a maximum weight of 1000 kg, with an absolute encoder, with a B70/1THP control unit separated from the drive by a maximum of 1 m, without limit switches.

FEATURES:

  • Gate weight max 1000 kg
  • Drive for mounting in a post
  • 36 V brushless motor
  • High Speed ​​version
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with a 433.92 MHz fixed code with copy function, a set of R90/F2ES photocells, based on infrared technology and a FIFTHY/24/OR 24V LED signal lamp with a built-in 433.92 MHz antenna increasing the range of the remote controls.

TECHNICAL DATA:

  • Maximum gate weight: 1000 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 36V
  • Nominal power: 240W
  • Use: Intensive
  • Force: 270 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 25 m/min (0.42 m/s)
  • Control unit: B70/1THP
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z20/mod. 4
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Dimensions: 166 x 134.4 x 214.5 mm
  • Weight: 17.4 kg
