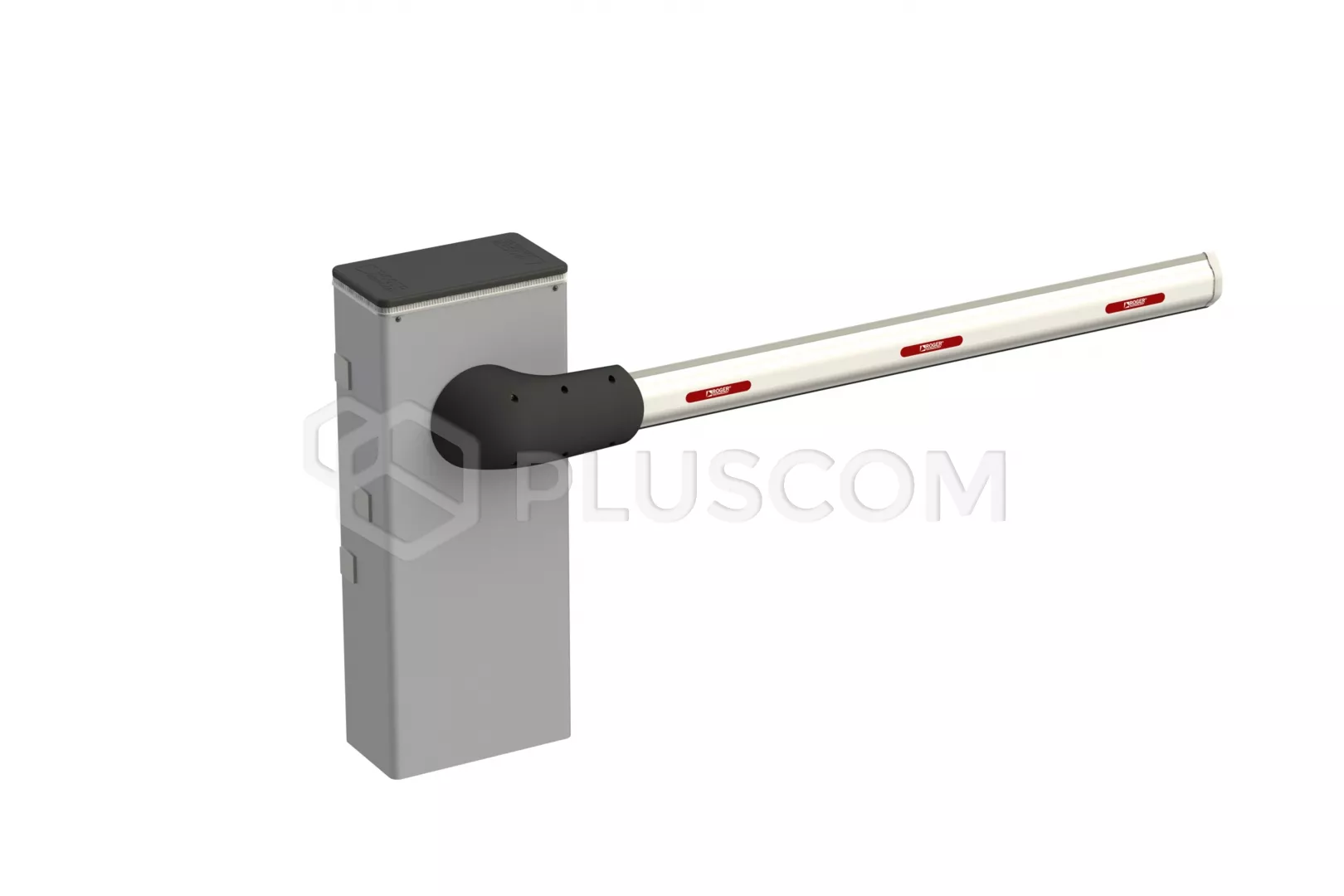

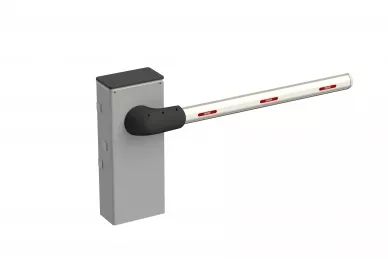

Roger Technology BI/008 Electromechanical brushless barrier column 36V

Roger Technology BI/008 Brushless electromechanical barrier column 36V

THE BARRIER CONSISTS OF THE FOLLOWING ELEMENTS:

36V brushless electromechanical barrier column digital encoder built-in CTRL switchboard LED column lighting foundation base arm holder

Roger Technology BI/008 Electromechanical brushless barrier column 36V

The barrier guarantees intensive work cycles and can be installed on it ramoin up to 8m. It is equipped with a CTRL control unit, a digital encoder, LED lighting of the column, mounting base with anchoring elements and incl flanges for attaching the arm.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

The barrier uses a new balancing system with a toothed insert, which ensures very accurate adjustment of the balance of two springs with a cross-section of 85 mm.
To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability. Housing made of carbon steel protected against corrosion and painted.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 2500 cycles per day
• Avg. failure-free operation time 10,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm

From the factory, the barrier is adjusted to right-hand installation, when viewed from the factory from the side of the inspection flap.

---
