Roger Technology KIT BM30/400/F KIT FULL

822,02 EUR including 23.00% VAT
Product code: #33238
Manufacturer: Roger Technology
  • gate weight: up to 500kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 12 m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/24 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology MC775 Magnetic switches for B70/1DC control panel Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology POST BASE Adjustable base for H30 drives Roger Technology BASE M30 S Mounting bases (+6.5-10.5 cm) Roger Technology BASE M30 M Mounting bases (+10.5-16 cm)

Roger Technology KIT BM30/400/F Kit with 24 V brushless motor for sliding gates up to 500 kg

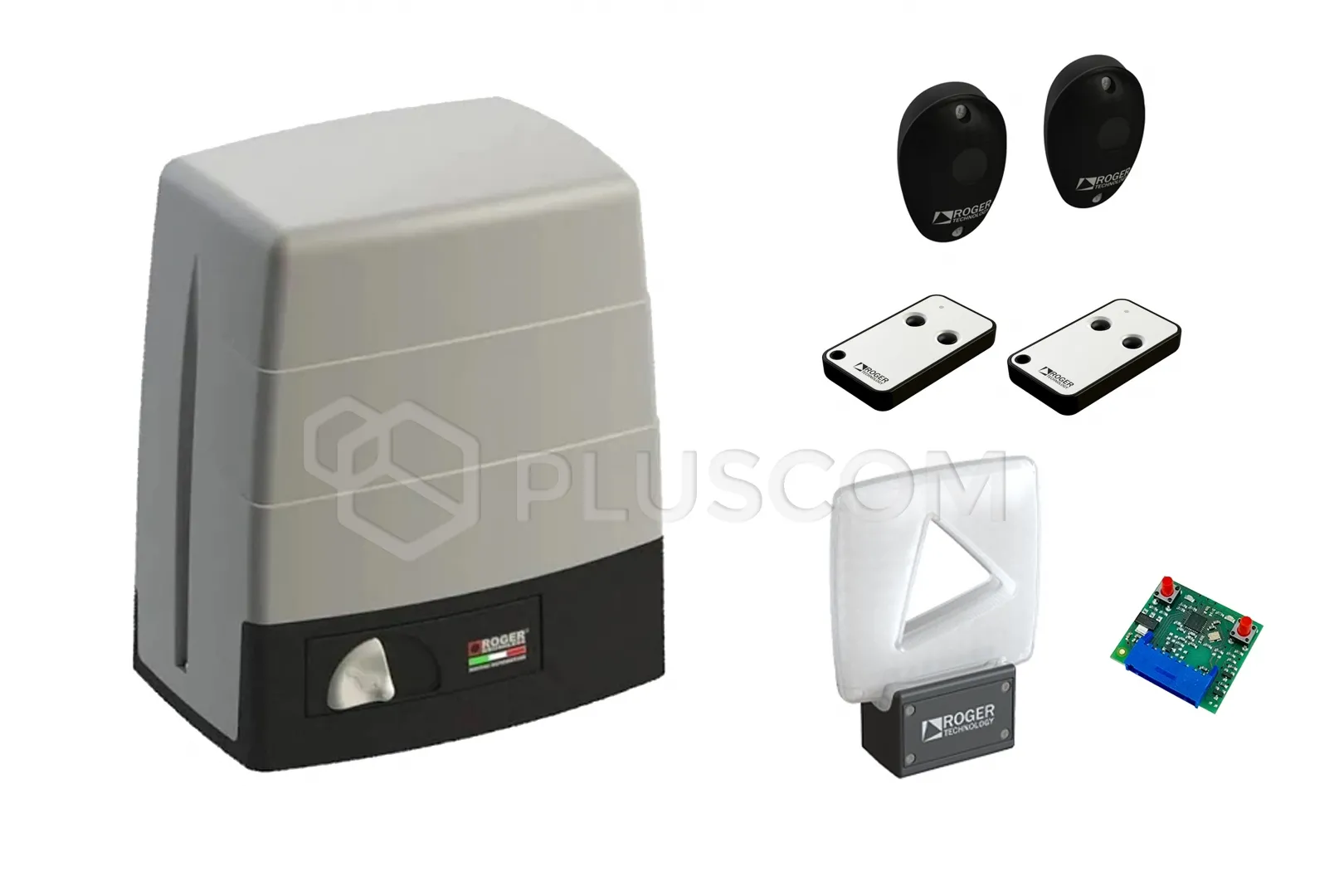

The kit consists of:
Roger Technology KIT BM30/400/F KIT FULL

Roger Technology KIT BM30/400/F KIT FULL
Drive with 24 V brushless motor, for very intensive use, for sliding gates with a maximum weight of 500 kg, with absolute encoder, built-in B70/1DC control unit and mechanical switches, as well as a base and screws for mounting.

FEATURES:

  • 24 V brushless motor
  • Gate weight max 500 kg
  • Intensive use - 500 cycles per day (non-stop)
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a copy function, operating at a frequency of 433.92MHz, a set of R90/F2ES photocells, based on infrared technology and a FIFTHY/24 24V LED signal lamp with a built-in 433.92MHz antenna that increases the operating range of the remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 120 W
  • Force: 50-500 N
  • Speed: 12 m/min (0.21 m/s)
  • Work intensity: 500 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z15/mod. 4
  • Max. gate weight: 500 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 250 x 290 x 165 mm
  • Weight: 10.7 kg
