Roger Technology KIT BM30/310/HS/L KIT LIGHT

828,42 EUR including 19.00% VAT
Product code: #33234
Manufacturer: Roger Technology
  • gate weight: up to 400kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 12 m/min
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BASE M30 L Bases for mounting (+15.5-24 cm) Roger Technology KT220 Mounting Base (+3cm) Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology POST BASE Adjustable base for H30 drives Roger Technology BASE M30 S Mounting bases (+6.5-10.5 cm)

Roger Technology KIT BM30/310/HS/L Kit with HIGH SPEED brushless motor 24V for sliding gates up to 400 kg

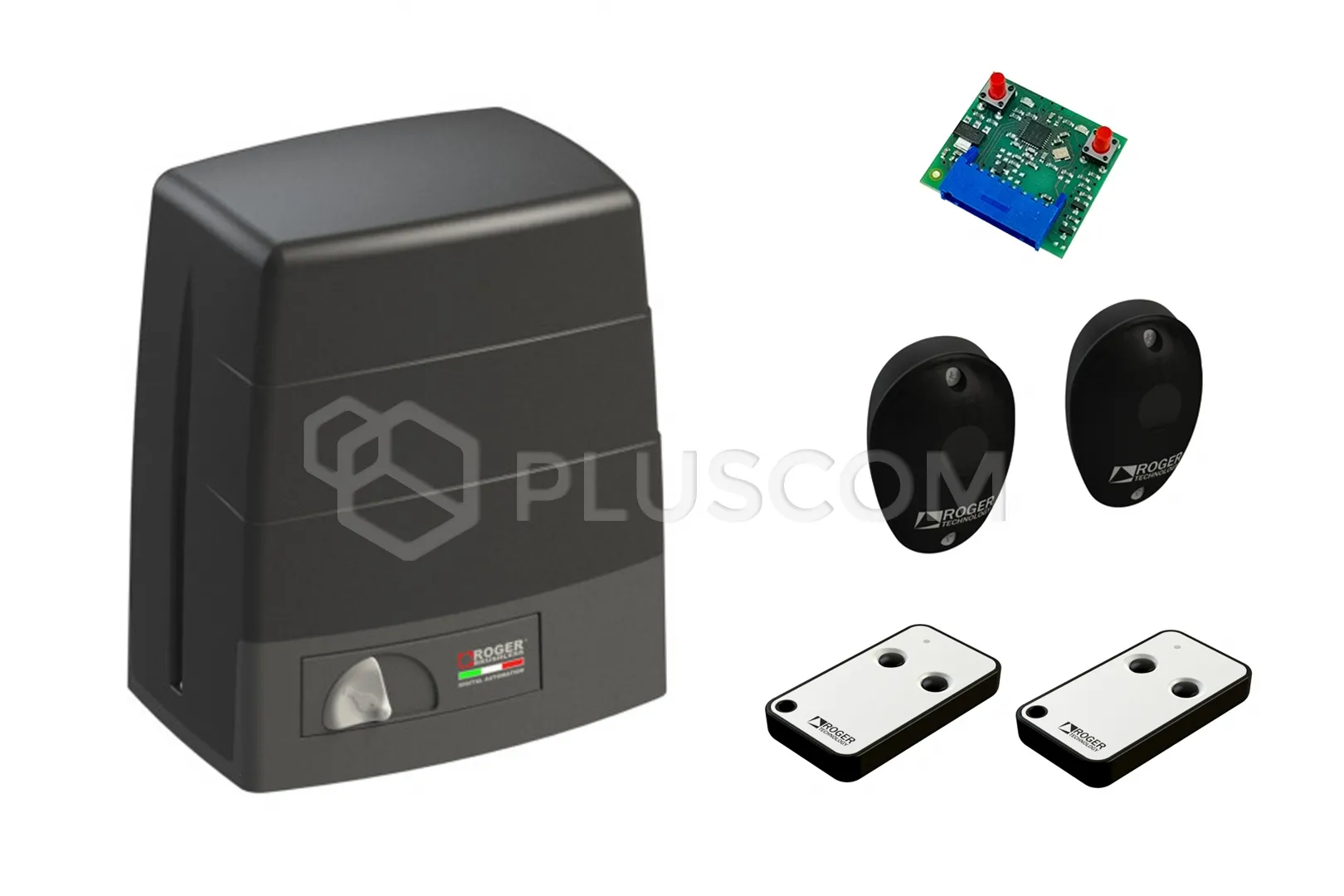

The kit consists of:
Roger Technology KIT BM30/310/HS/L KIT LIGHT

Roger Technology KIT BM30/310/HS/L KIT LIGHT
Drive with HIGH SPEED 24 V brushless motor, for very intensive work, for sliding gates with a maximum weight of 400 kg, with absolute encoder, built-in B70/1DC control unit and mechanical switches as well as base and screws for mounting.

FEATURES:

  • 24 V brushless motor
  • Gate weight max 400 kg
  • High Speed ​​version
  • Intensive use - 500 cycles per day (non-stop)
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with a copy function, operating at a frequency of 433.92MHz and a set of photocells R90/F2ES, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 125 W
  • Force: 50-350 N
  • Speed: 24 m/min (0.40 m/s)
  • Work intensity: 500 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z15/mod. 4
  • Max. gate weight: 400 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 250 x 290 x 165 mm
  • Weight: 10.7 kg
