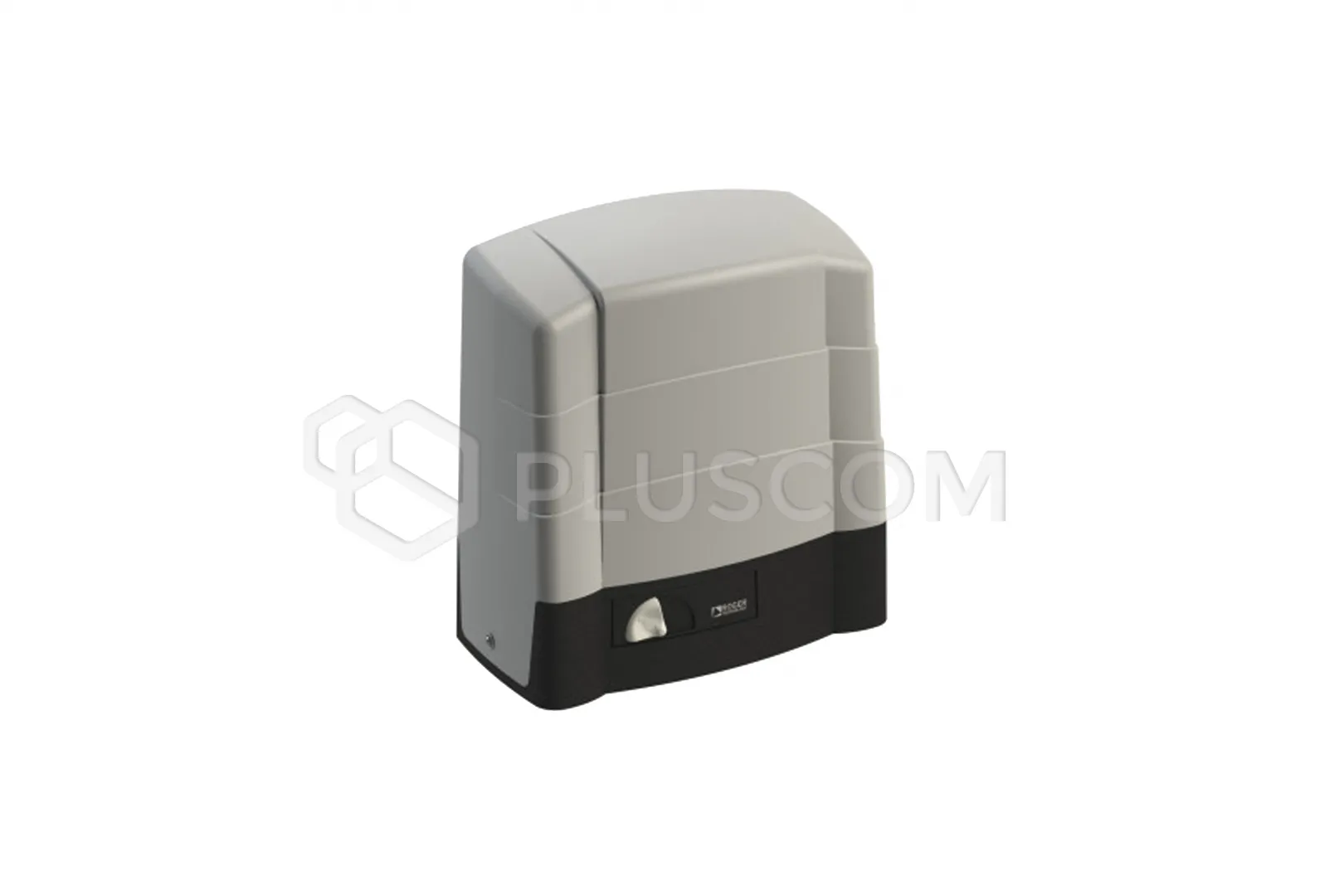

Roger Technology BG30/804/HS 36V Brushless Motor Drive TURBO HIGH SPEED

1307,75 EUR including 23.00% VAT
Product code: #40564
Manufacturer: Roger Technology
  • gate weight: up to 800kg
  • 36V engine
  • built-in B70/1DHCP control panel
  • speed: 30 m/min
  • magnetic switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology KT222 Mounting plate for G30 actuators Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30

Roger Technology BG30/804/HS Brushless motor drive 36V TURBO HIGH SPEED for sliding gates up to 800 kg


Brushless motor drive TURBO HIGH SPEED (30 m/min) 36V, for very intensive work, for sliding gates with a maximum weight of 800 kg, with digital encoder, built-in B70/1DHCP control unit and magnetic switches as well as base and screws for mounting.

FEATURES:

  • Gate weight max 800 kg
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Magnetic switches
  • TURBO High Speed version (30 m/min)
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Built-in absolute encoder
  • Soft start and slowdown

TECHNICAL DATA:

  • Maximum gate weight: 800 kg
  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 36V
  • Rated power: 490W
  • Use frequency: Intensively used
  • Pulling force: 50 - 650N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor typology: Irreversible
  • Speed: 30 m/min (0.5 m/s)
  • Switches: Magnetic
  • Control unit: B70/1DCHP
  • Encoder: Built-in digital + magnetic digital SENSORED, 4094 pulses per revolution
  • Backup power supply: Optional 2 external batteries 12V DC, 4.5 Amp/h
  • Gear module: Z20/mod 4
  • Number of cycles per day (opening/closing - 24h non-stop): 800
  • Dimensions: 350 x 220 x 380 mm
  • Weight: 18.5 kg
