Roger Technology BG30/1804/HS 36V Brushless Motor Drive HIGH SPEED

1420,65 EUR including 22.00% VAT
Product code: #33132
Manufacturer: Roger Technology
  • gate weight: up to 1800kg
  • 36V engine
  • built-in B70/1DHCP control panel
  • speed: 18 m/min
  • magnetic switches
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology CROSSF10 Metal toothed rack, galvanized 1m

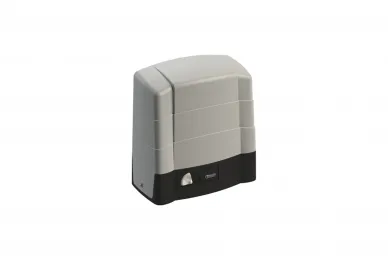

Roger Technology BG30/1804/HS Brushless motor drive 36V HIGH SPEED for sliding gates up to 1800 kg


Brushless motor drive HIGH SPEED 36 V, for very intensive use, for sliding gates with a maximum weight of 1800 kg, with digital encoder, built-in B70/1DHCP control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 1800 kg
  • High Speed Version
  • 36 V Brushless Motor
  • Super Intensive Use - 800 Cycles per Day
  • Metal Alloy Gearbox Without Plastic, Without Teflon, Without Nylon
  • Drive Unlocking Secured With Personalized Key
  • Digital Control Unit Without Relays
  • Built-in Absolute Encoder
  • High Work Culture
  • Very Low Energy Consumption

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 650 W
  • Force: 50-1250 N
  • Speed: 18 m/min (0.30 m/s)
  • Work intensity: 800 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z17/mod. 4
  • Max. gate weight: 1800 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 346 x 362 x 180 mm
  • Weight: 20.1 kg
