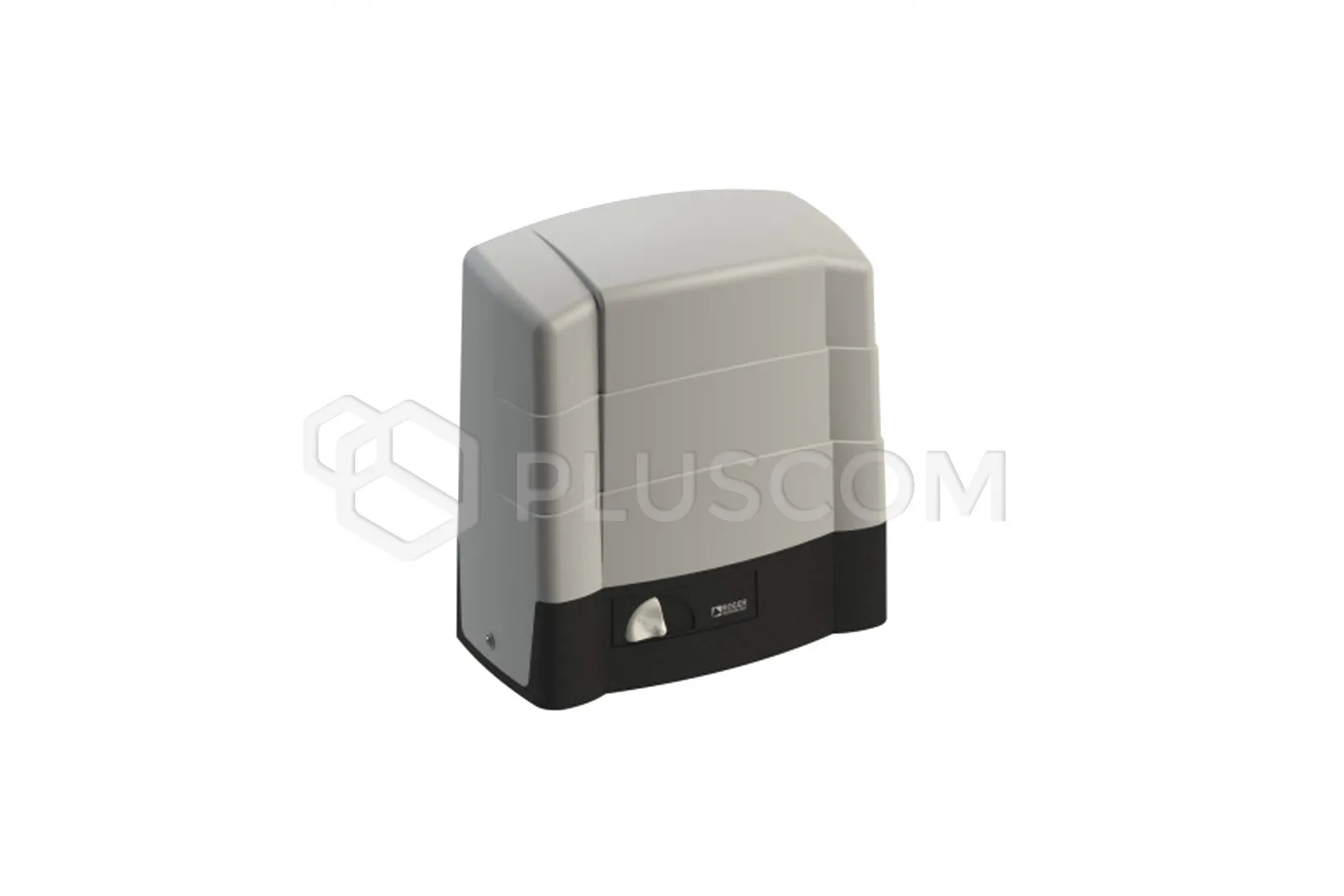

Roger Technology BG30/1604 36V Brushless Motor Drive

1229,91 EUR including 23.00% VAT
Product code: #33131
Manufacturer: Roger Technology
  • gate weight: up to 1600kg
  • 36V engine
  • built-in B70/1DHCP control panel
  • speed: 12 m/min
  • magnetic switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology CROSSF10 Metal toothed rack, galvanized 1m

Roger Technology BG30/1604 Drive with 36V brushless motor for sliding gates up to 1600 kg


Drive with 36V brushless motor, for very intensive use, for sliding gates with a maximum weight of 1600 kg, with digital encoder, built-in B70/1DHCP control unit and magnetic switches, as well as base and screws for mounting.

FEATURES:

  • Gate weight max 1600 kg
  • 36 V brushless motor
  • Super intensive use - 1000 cycles per day
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Rated power: 390 W
  • Force: 50-1200 N
  • Speed: 12 m/min (0.20 m/s)
  • Work intensity: 1000 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z17/mod. 4
  • Max. gate weight: 1600 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 346 x 362 x 180 mm
  • Weight: 19.6 kg
