Roger Technology TW110/2000 36V Brushless Motor Drive

1686,97 EUR including 19.00% VAT
Product code: #40562
Manufacturer: Roger Technology
  • gate weight: up to 2000kg
  • 36V engine
  • drive for mounting in a post
  • built-in absolute encoder
  • speed: 12 m/min
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology MC787 Magnetic Limit Switch Kit and Brackets Roger Technology MC786 Magnetic Limit Switches Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology CROSSF10 Metal toothed rack, galvanized 1m

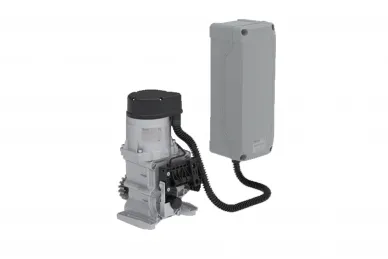

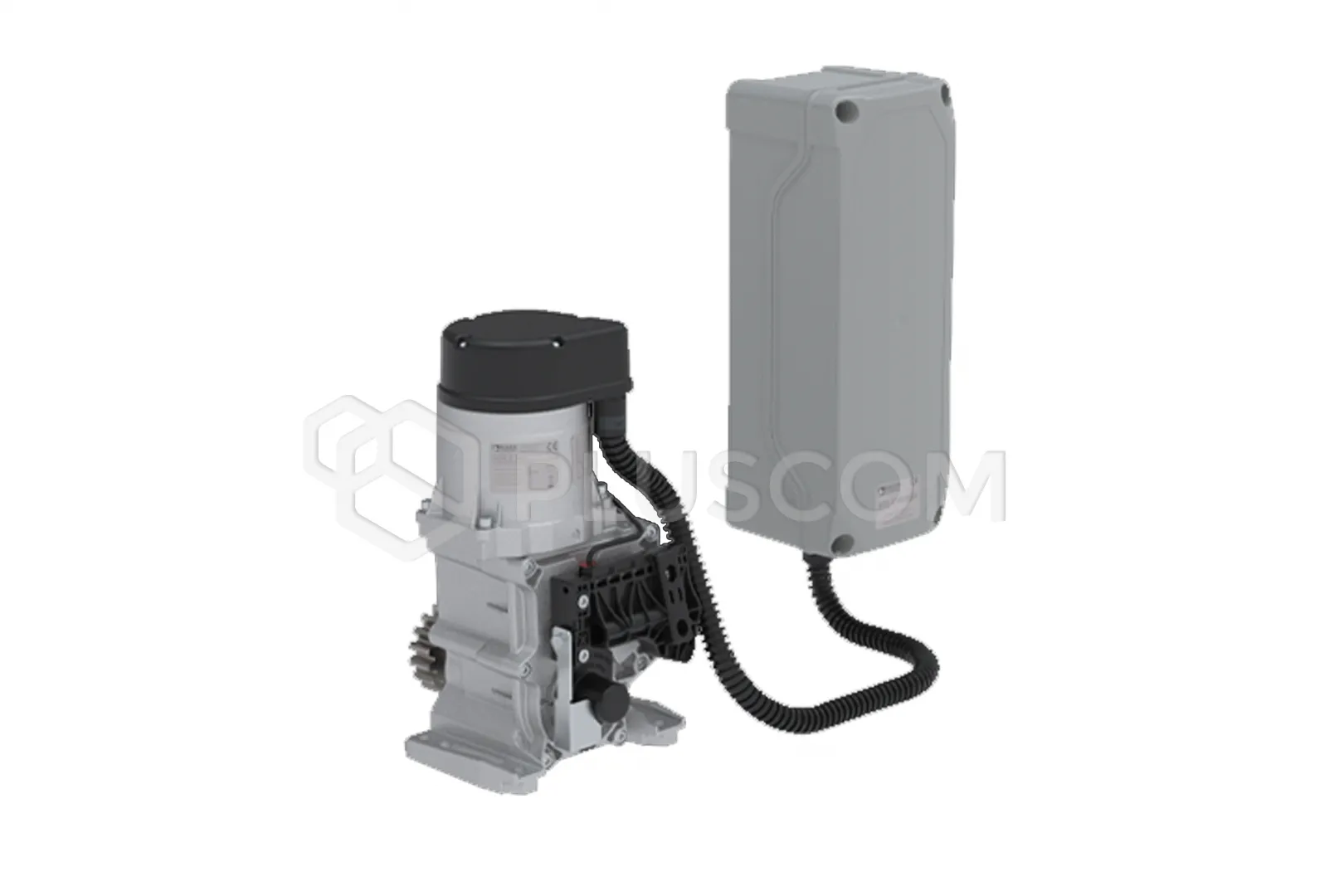

Roger Technology TW110/2000 Drive with 36V brushless motor for sliding gates up to 2000 kg, for installation in a post


Column drive with 36V brushless motor (12 m/min), for very intensive work, for sliding gates with a maximum weight of 2000 kg, with absolute encoder, with B70/1THP control unit separated from the drive by up to 1 m, without limit switches.

FEATURES:

  • Gate weight max 2000 kg
  • Drive for mounting in a post
  • 36 V brushless motor
  • Intensive use - continuous operation without restrictions
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Non-integrated digital control unit without relays
  • Built-in absolute encoder
  • High operating culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply

TECHNICAL DATA:

  • Maximum gate weight: 2000 kg
  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 36V
  • Nominal power: 240W
  • Use: Intensive
  • Force: 570 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Gear motor type: Self-locking
  • Speed: 12 m/min (0.16 m/s)
  • Limit switches: -
  • Control unit (built-in): B70/1THP
  • Encoder: Built-in digital + magnetic digital SENSRED, 4094 pulses per revolution
  • External gear module: Z17/mod. 4
  • Number of cycles per day (opening/closing - 24h non-stop): no cycle limit
  • Dimensions: 185 x 160 x 333 mm
  • Weight: 17.4 kg
