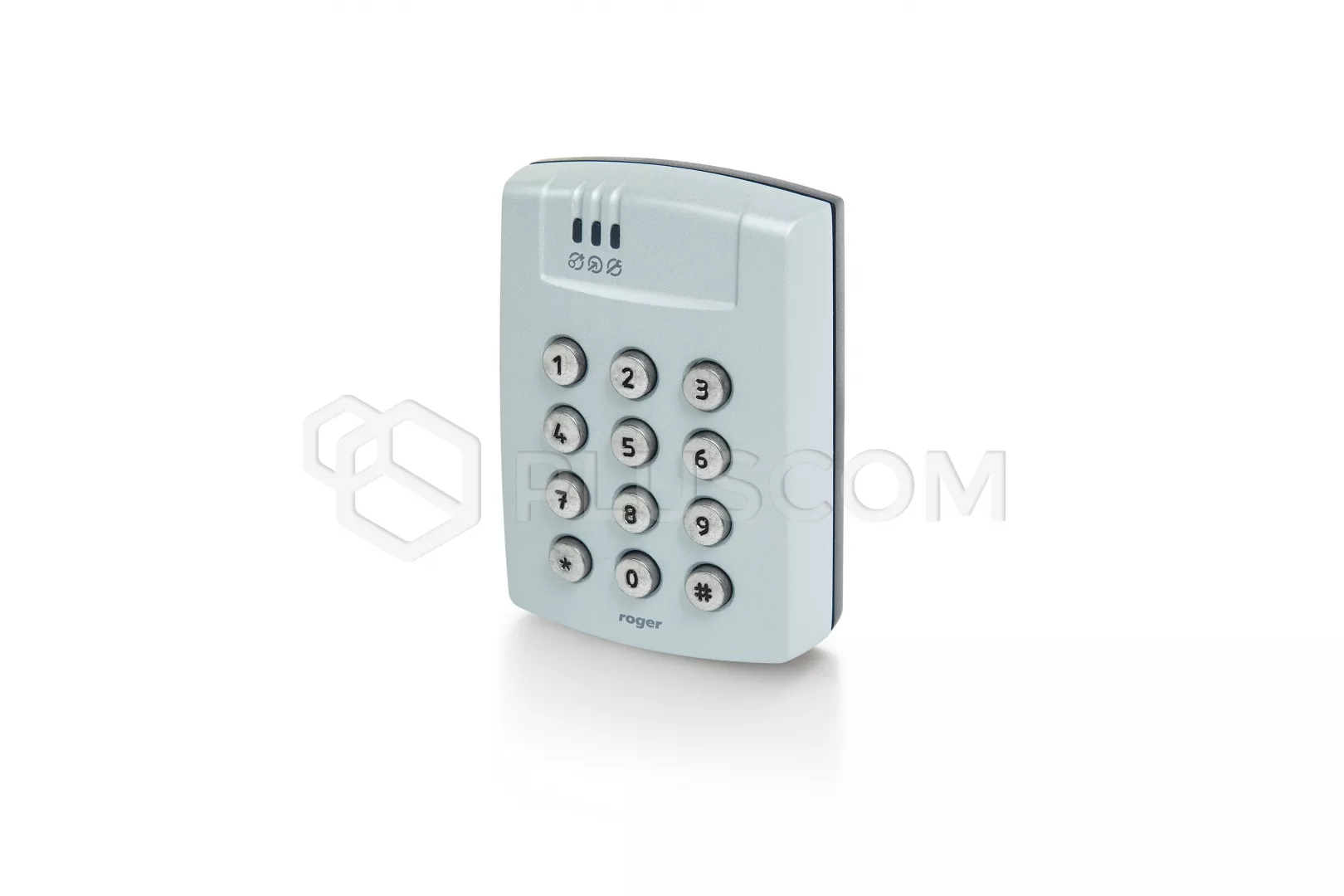

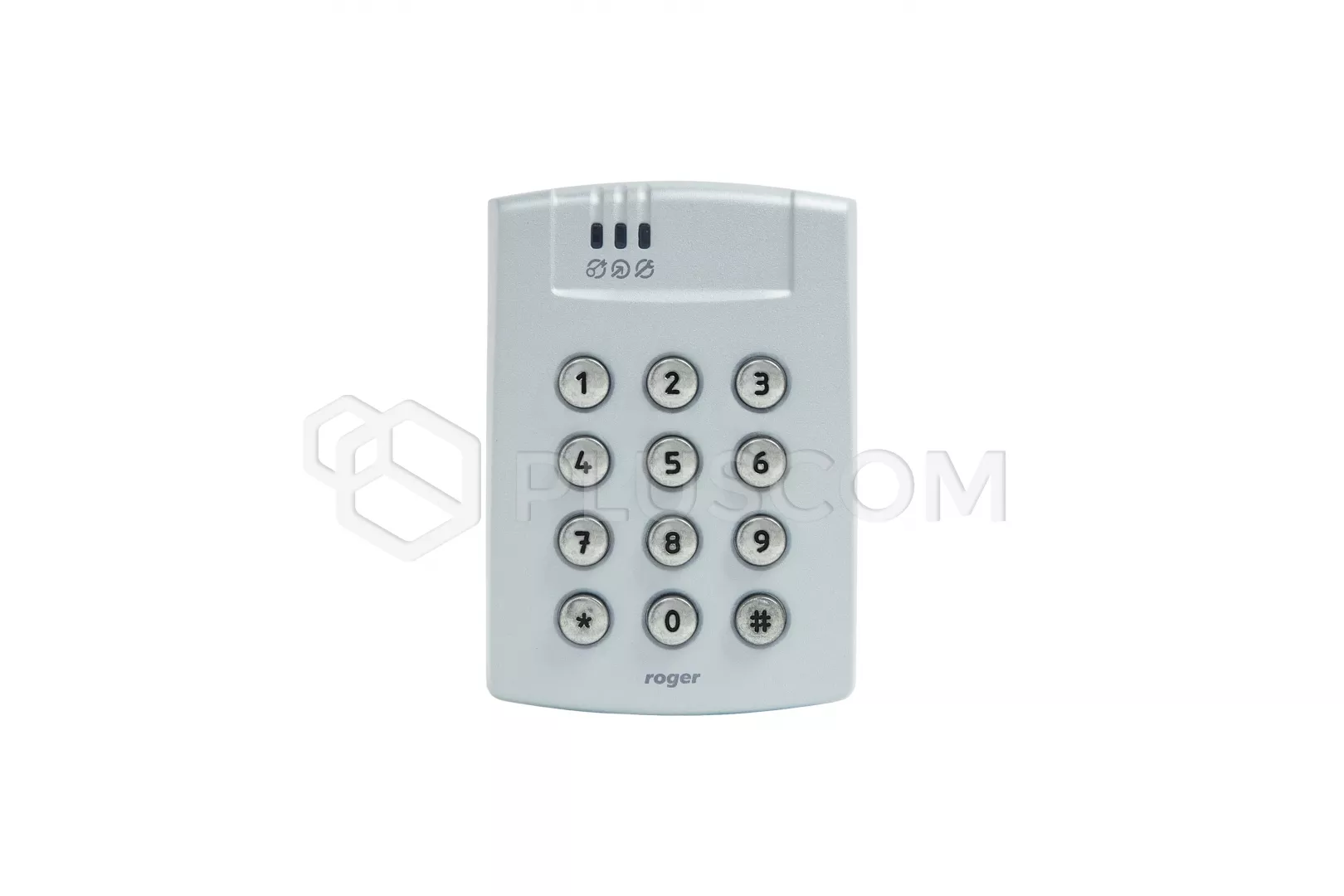

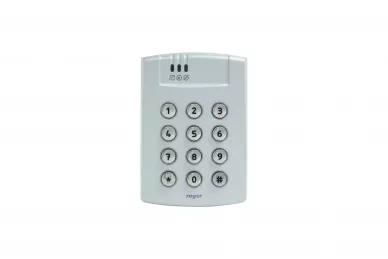

Roger SL2000F-VP Outdoor vandal-proof code lock

Roger SL2000F-VP Outdoor code lock

The SL2000F-VP electronic code lock is dedicated to operate as a standalone door access control unit. It is equipped with one relay output, two transistor outputs and three inputs. All codes and parameters programmed to device are stored in nonvolatile memory.

FEATURES:

• one 1.5 A/30 V relay output and two transistor outputs
• alarm signalling on the transistor output (ALARM)
• input for connecting a Door Contact
• input for connecting an Exit Button
• administrator Code for programming and users codes management
• master Code for controlling the lock’s mode of operation
• 55 user codes for door opening
• possibility for temporary lock’s blocking after three unsuccessful code entering attempts
• possibility for room entrance blockage when the lock is in an armed mode
• programmable code length
• user indexing
• non-volatile memory
• three LED indicators and a Buzzer
• tamper

Top part of the case and keys are made with aluminium alloy and covered with silver-metallic coat.

SPECIFICATION

• supply: 10...15 VDC
• current consumption:
• • avg.: 25 mA @ 12V DC
  • max.: do 80 mA @ 15V DC with relay output active
• anti-sabotage protectione (tamper): NC contact, 50mA/24V
• environmental Class : I
• working temperature: +5°C +40°C
• dimensions: 115 X 80 X 35 mm
• weight: 450g
