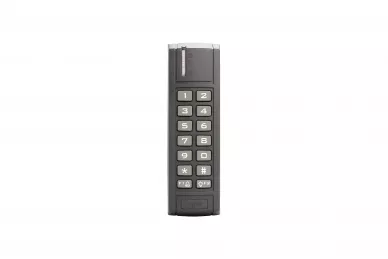

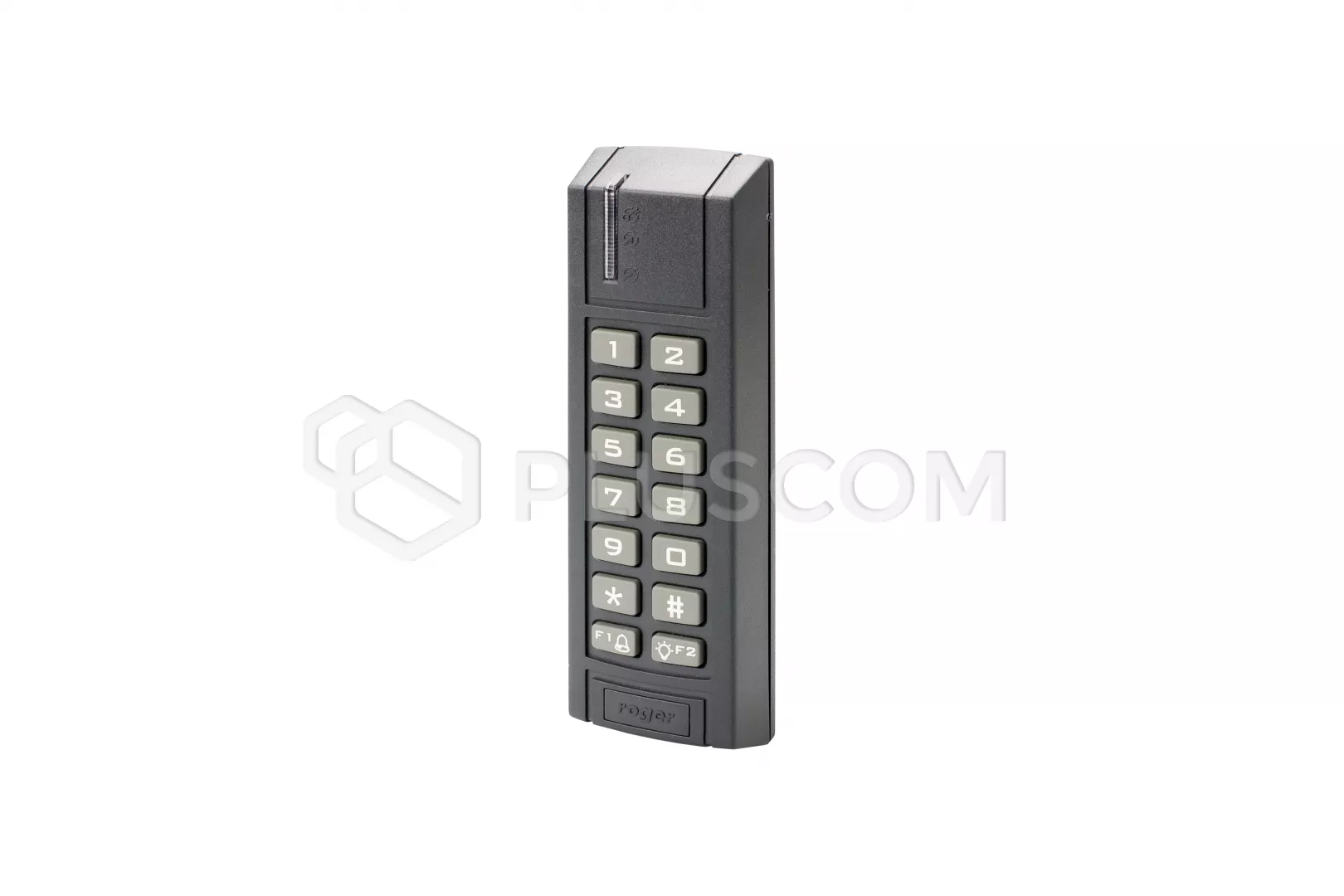

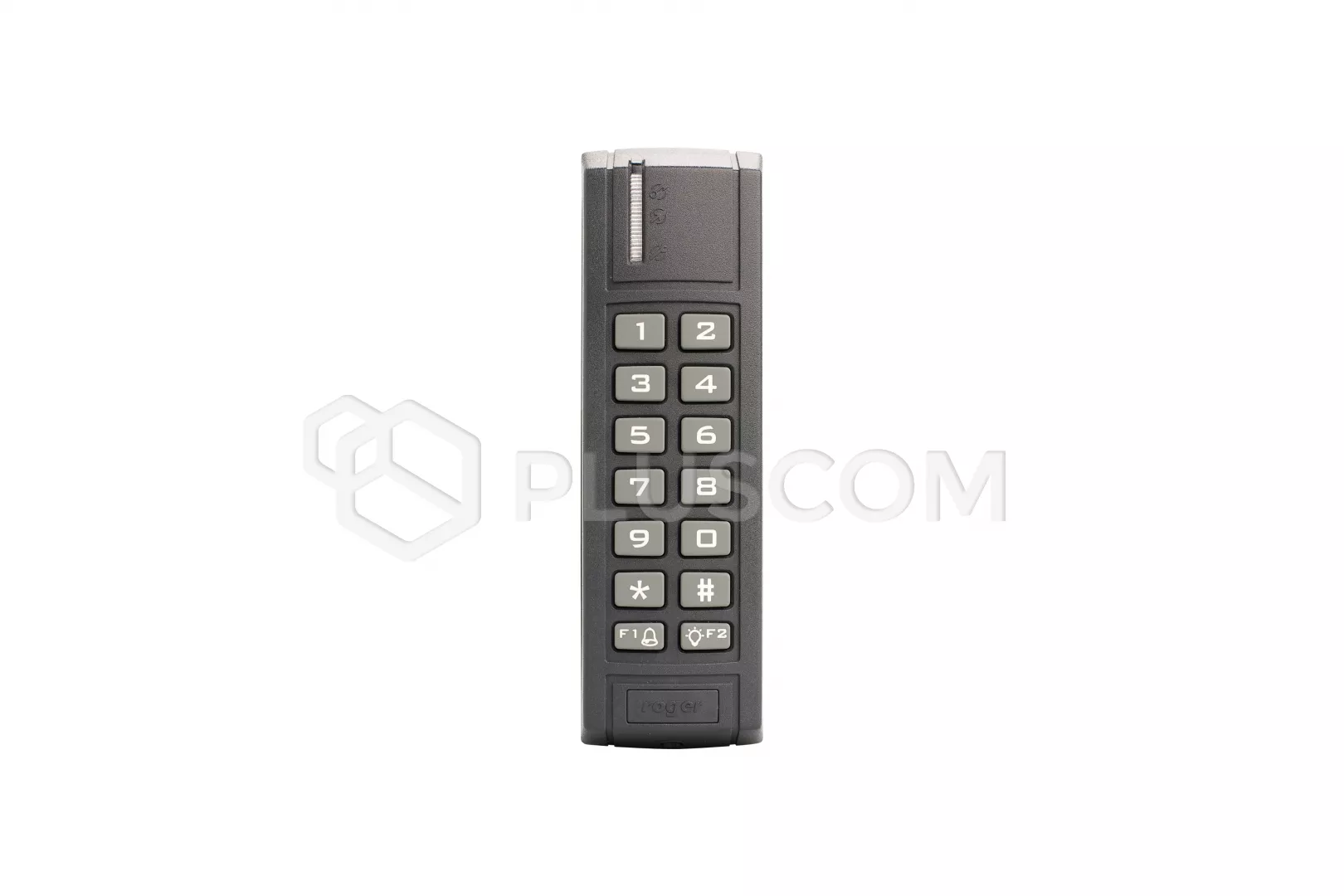

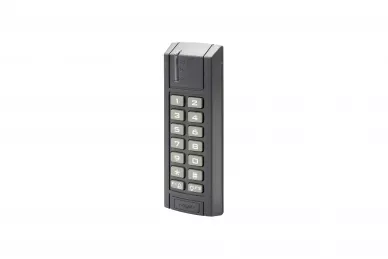

Roger SL2000E Outdoor code lock

Roger SL2000E Outdoor code lock

SL2000E code locks identify users through PIN codes. SL2000E locks offer possibility to program up to 55 different codes and are preferred to be applied in Access Control installations. In parallel to controlling access they can also control any device or the system requiring switching of turn-on/turn-off type.

FEATURES:

• one 1.5 A/30 V relay output and two transistor outputs
• alarm signalling on the transistor output (ALARM)
• input for connecting a Door Contact
• input for connecting an Exit Button
• administrator Code for programming and users codes management
• master Code for controlling the lock’s mode of operation
• 55 user codes for door opening
• possibility for temporary lock’s blocking after three unsuccessful code entering attempts
• possibility for room entrance blockage when the lock is in an armed mode
• programmable code length
• user indexing
• non-volatile memory
• three LED indicators and a Buzzer
• tamper

SPECIFICATION

• supply: 10...15 VDC
• current consumption:
• • avg.: 25 mA @ 12V DC
  • max.: do 80 mA @ 15V DC with relay output active
• anti-sabotage protectione (tamper): NC contact, 50mA/24V
• environmental Class : IV
• IP65
• working temperature:- 10°C +40°C
• dimensions: 151.5 X 45 X 22.5 mm
• weight: 150g
