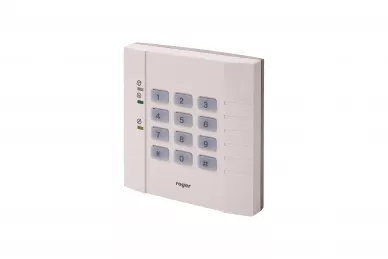

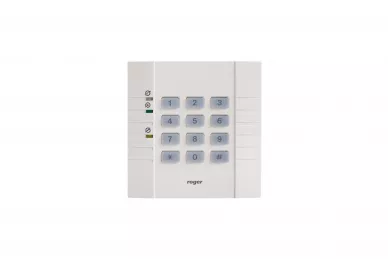

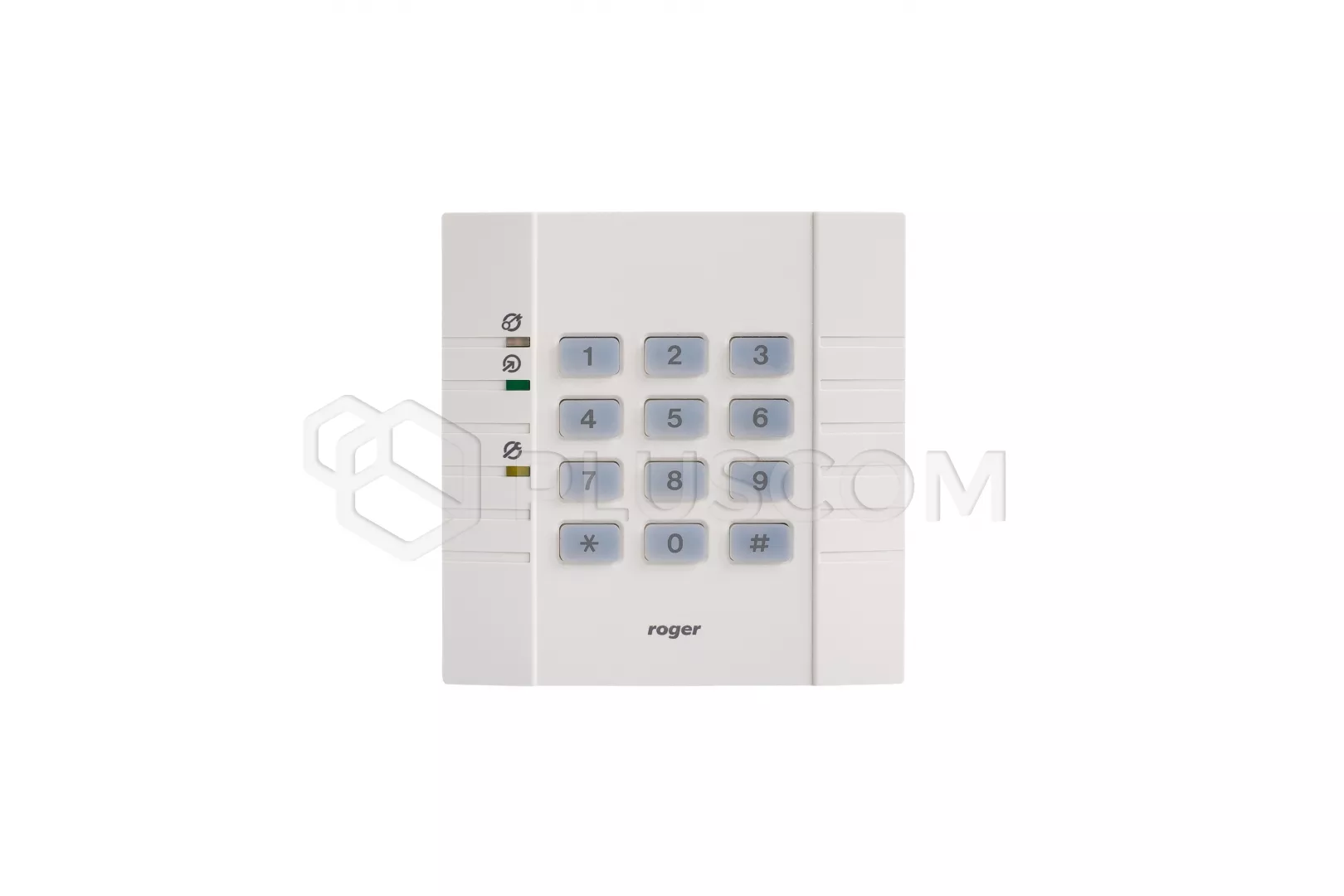

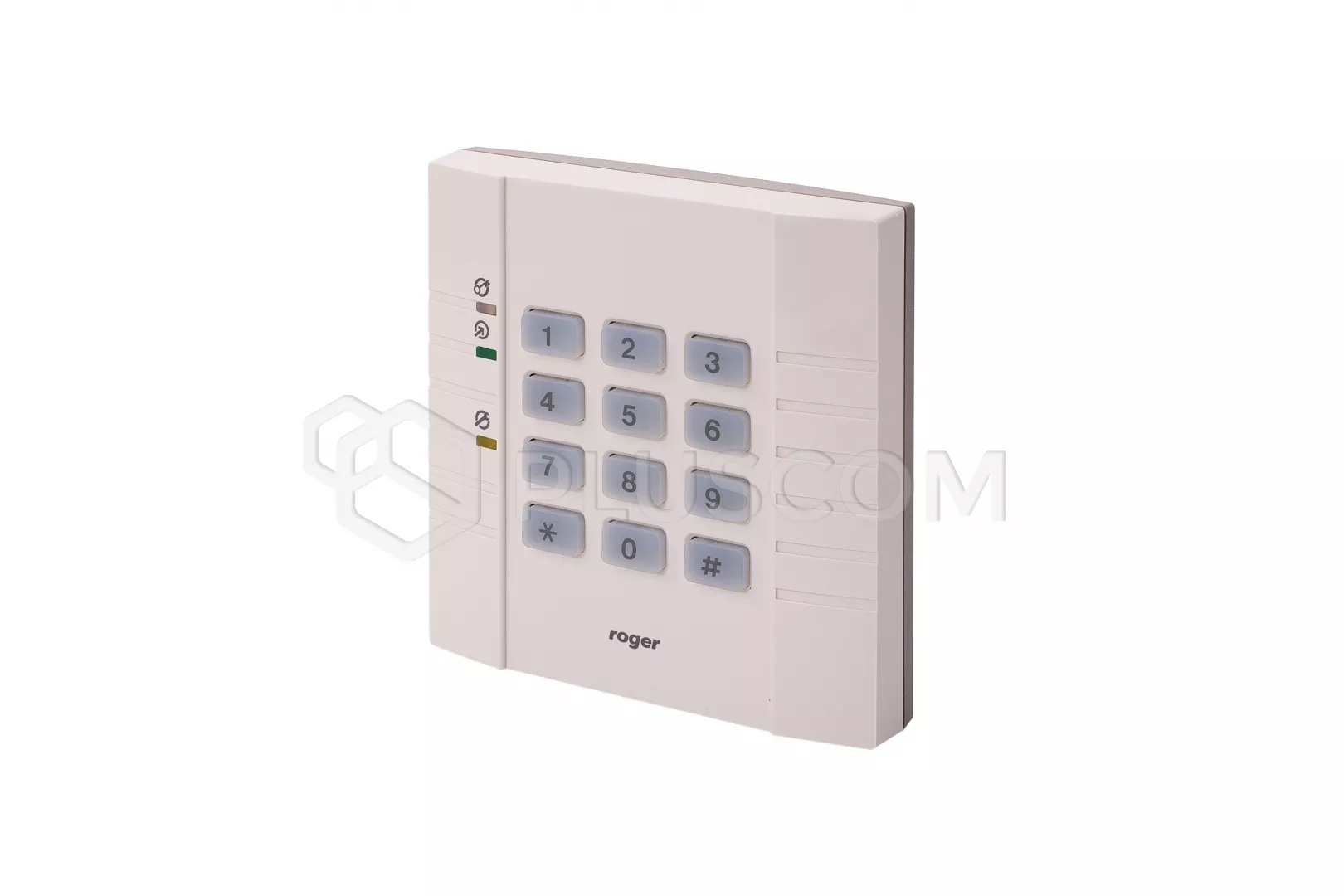

Roger SL2000B Indoor code lock

Roger SL2000B Indoor code lock

The SL2000B electronic code lock is dedicated to operate as a stand-alone door access control unit. It is equipped with one relay output, two transistor outputs and three inputs. All codes and parameters programmed to device are stored in non-volatile memory.

FEATURES:

• one 1.5 A/30 V relay output and two transistor outputs
• alarm signalling on the transistor output (ALARM)
• input for connecting a Door Contact
• input for connecting an Exit Button
• administrator Code for programming and users codes management
• master Code for controlling the lock’s mode of operation
• 55 user codes for door opening
• possibility for temporary lock’s blocking after three unsuccessful code entering attempts
• possibility for room entrance blockage when the lock is in an armed mode
• programmable code length
• user indexing
• non-volatile memory
• three LED indicators and a Buzzer
• tamper

SPECIFICATION

• supply: 10...15 VDC
• current consumption:
• • avg.: 25 mA @ 12V DC
  • max.: do 80 mA @ 15V DC with relay output active
• anti-sabotage protectione (tamper): NC contact, 50mA/24V
• environmental Class : II
• IP30
• working temperature:- 10°C +40°C
• dimensions: 105 X 104 X 30 mm
• weight: 130g
