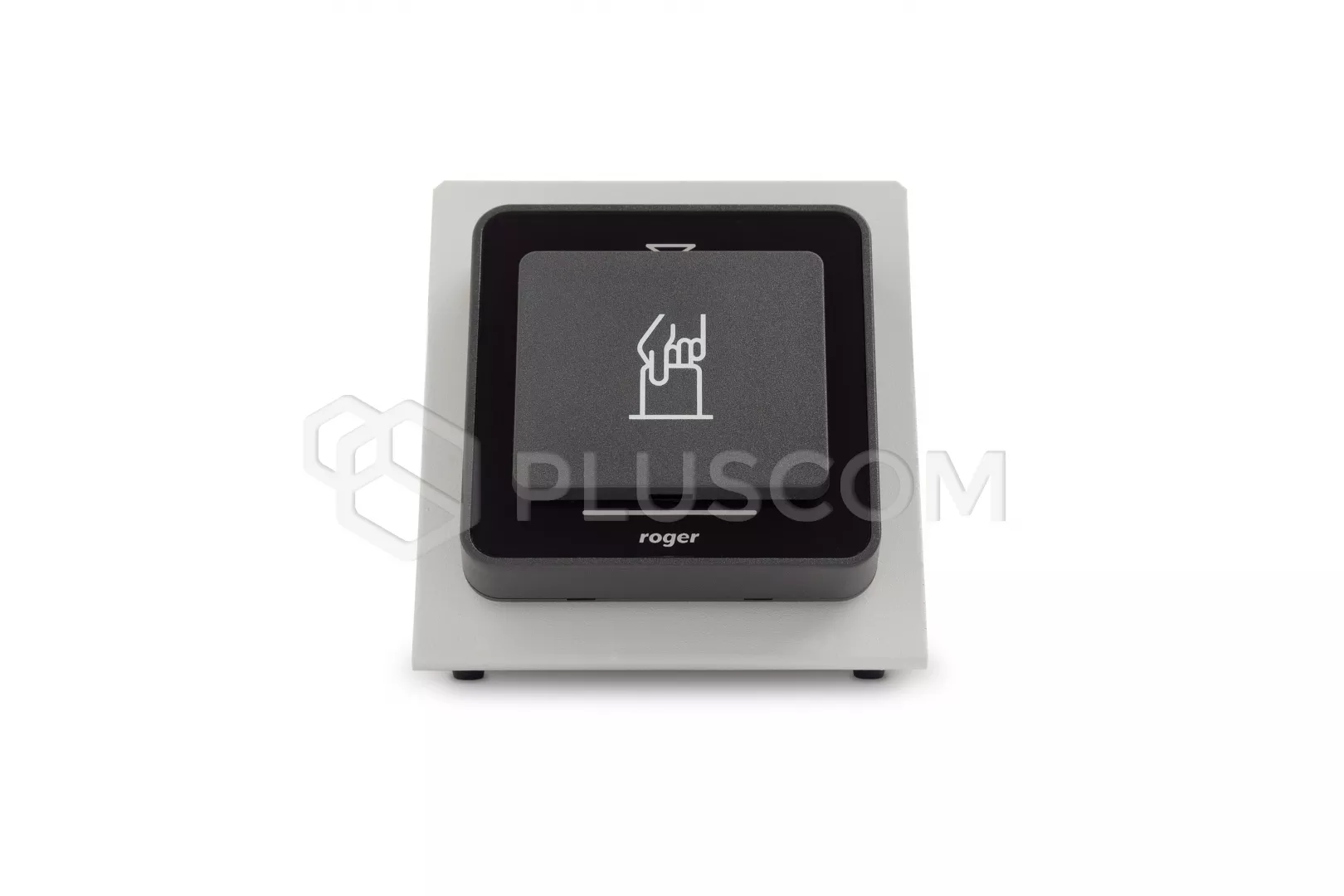

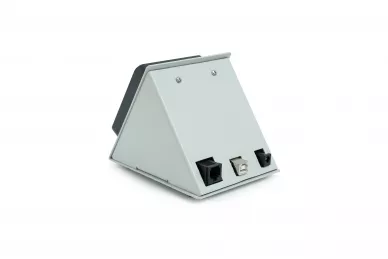

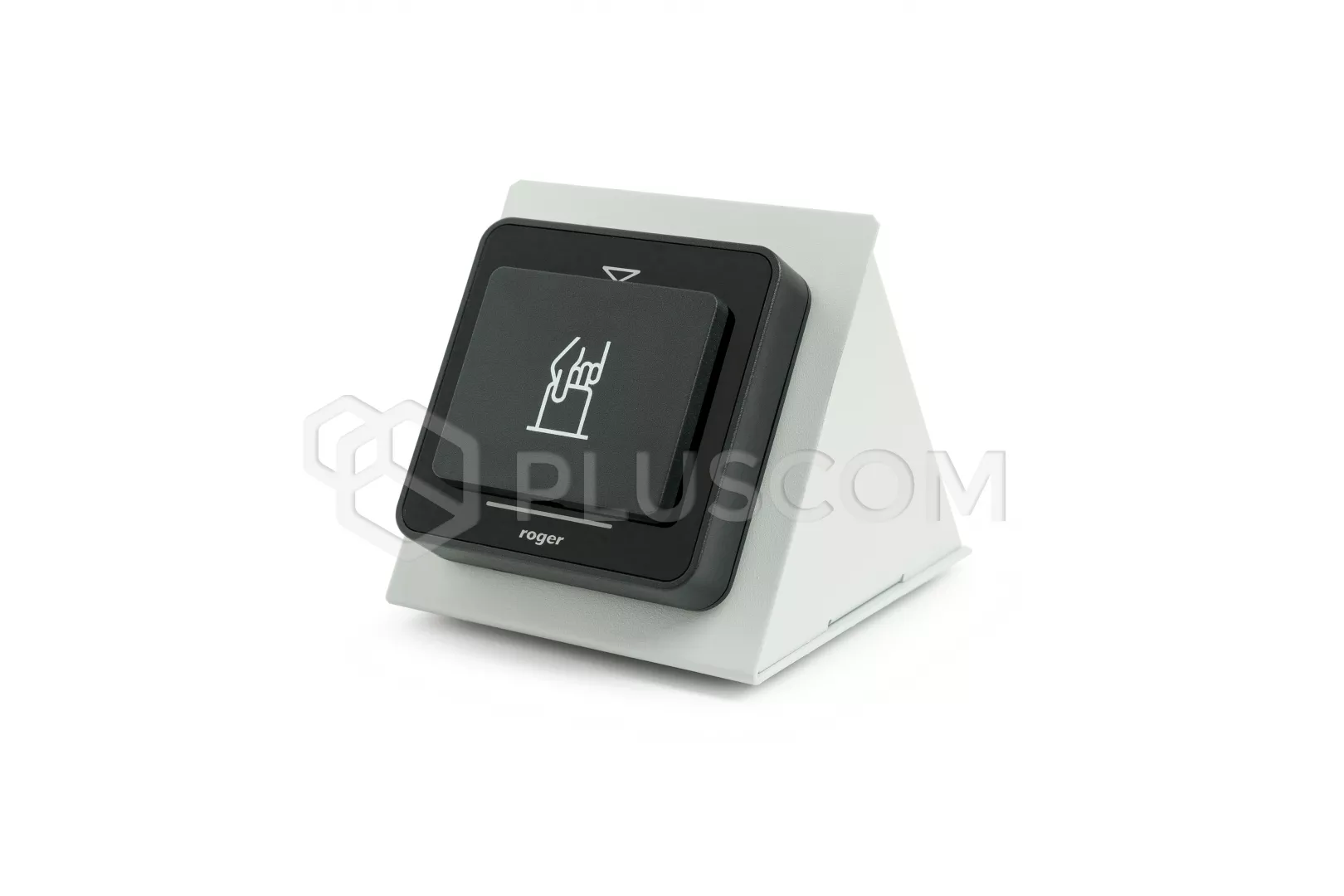

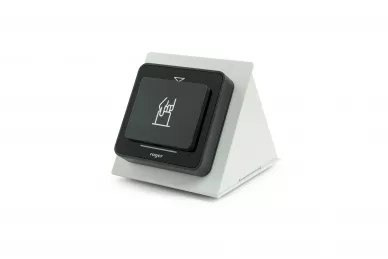

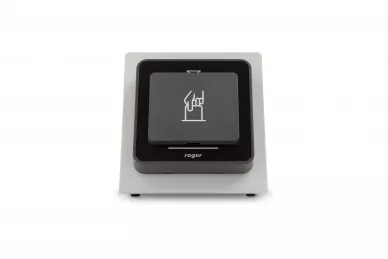

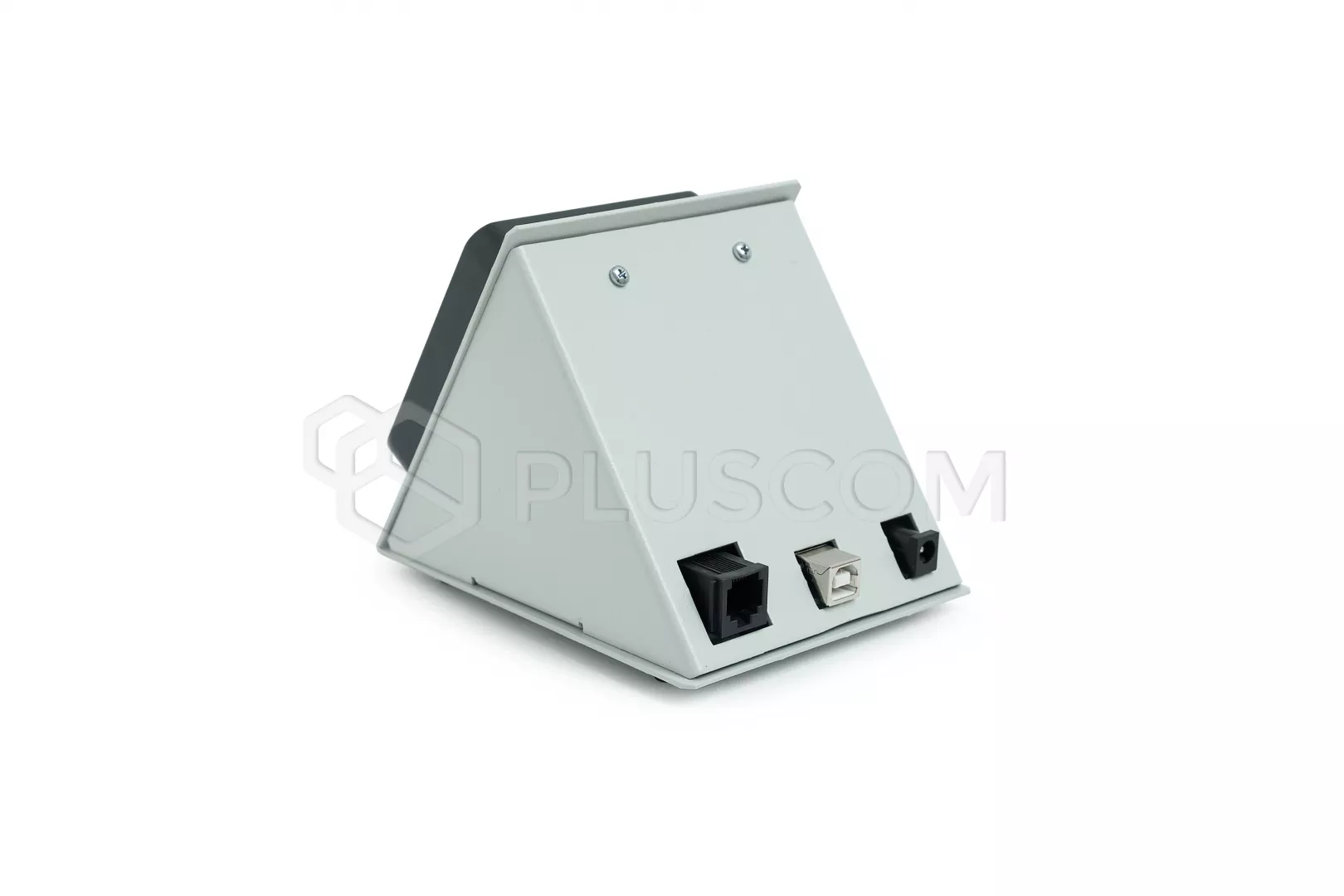

Roger RUD-4-DES MIFARE DESFire and EM 125 kHz card reader and programmer

Roger RUD-4-DES MIFARE DESFire and EM 125 kHz card reader and programmer

RUD-4-DES is a desktop reader and writer for 13.56MHz ISO/IEC 14443A MIFARE Classic, DESFire and allows to read a EM 125kHz standard proximity cards, it’s supplied directly from serial USB port which is also used for communication with the PC. The device has a stable metal desktop stand with a card holder. The RUD-4-DES can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.4.6 or above is required), VISO 1.x or using dedicated Roger MiniReader application (version 1.2 or above required). RUD-4 can also provide a MIFARE transponder programmer functionality, but in such cases RogerVDM (1.2.4 or above required) should be used. Roger company offers SDK programming package that enables a programmer to develop customized applications for a specific requirements.

FEATURES:

• MIFARE Classic: Ultralight, 1k i 4k
• MIFARE DESFire EV1
• EM 125kHz: compatible with EM 4100/4102 standard
• Read number for MIFARE: CSN, SSN, MSN, DESFire File
• Write number for MIFARE: SSN, MSN, DESFire File
• Read number for EM 125kHz: CSN
• Communication interface: USB-HID
• Dual color LED bar indicator
• Acoustic transducer
• Relay 1A/30V
• Configuration from PC (RogerVDM software)
• USB cable
• Metal desktop stand with card holder
• For indoor use only
• SDK programming package

TECHNICAL PARAMETERS

• supply voltage: 5 VDC directly from the USB port
• cards: ISO/IEC 14443A MIFARE Classic and EM 125kHz proximity transponders
• average current consumption: 80mA
• read range:
• • up to 3 cm for MIFARE Classic cards
  • up to 4 cm for EM 125kHz cards
  • up to 2 cm for MIFARE DESFire cards
• reading time ~ 200ms
• Relay: 1A/30V
• working temperature: +5 ° C ~ +45 ° C
• weight: approx. 640g
• dimensions: 11x10.5x14mm
