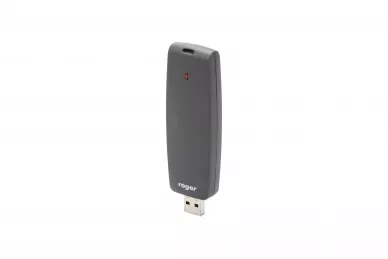

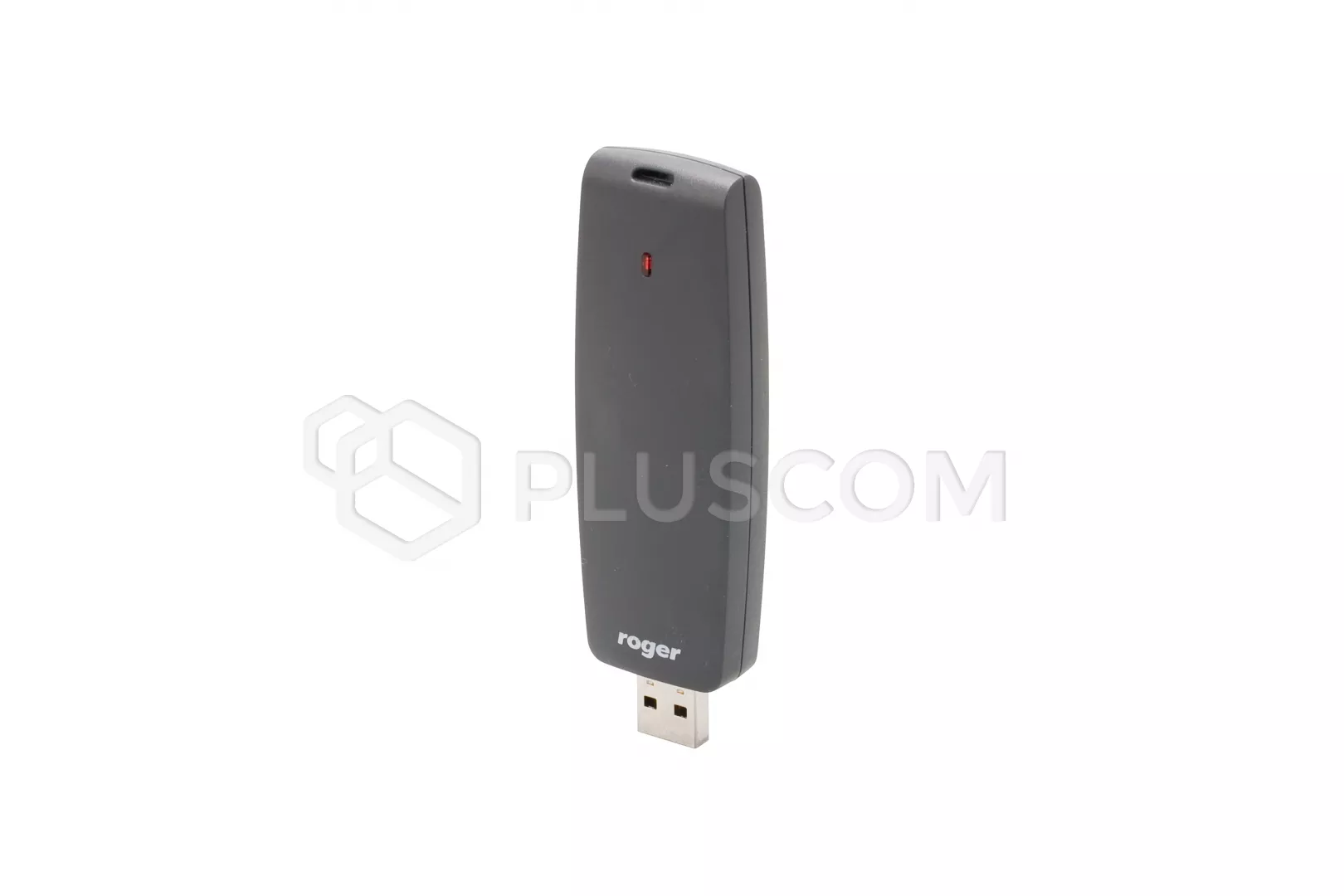

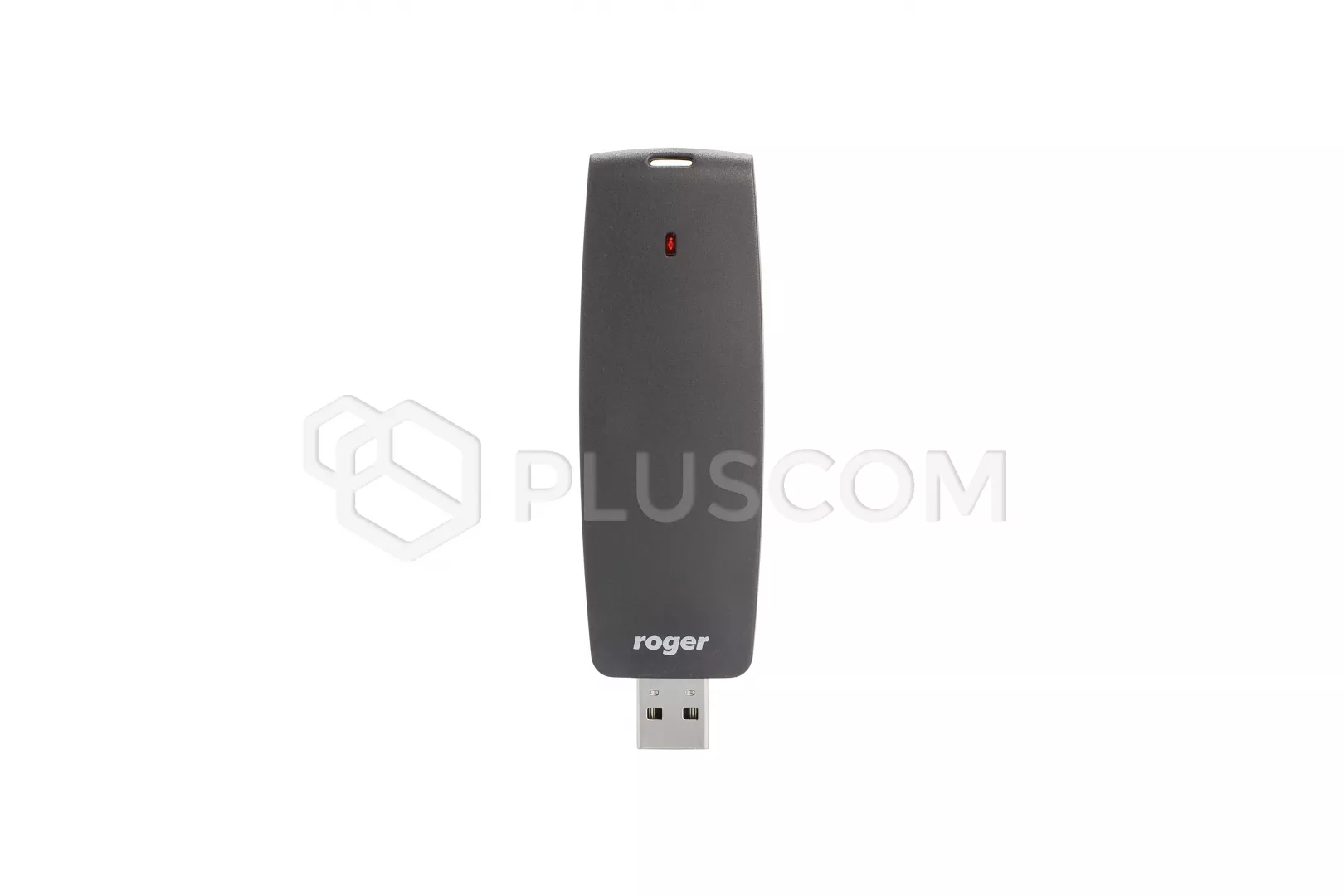

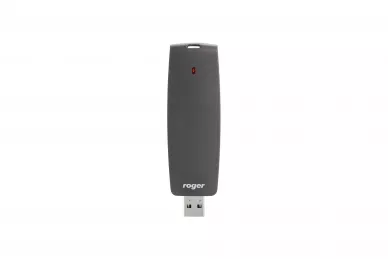

Roger RUD-3-DES MIFARE DESFire USB reader and programmer

Roger RUD-3-DES USB MIFARE Classic/Ultraligh, DESFire Reader

RUD-3-DES is a miniature reader and writer for 13.56MHz ISO/IEC 14443A MIFARE Classic, DESFire standard proximity cards and is supplied from serial USB port which is also used for communication with the device.
The RUD-3-DES can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.4.6 or above is required), VISO 1.x or using dedicated Roger MiniReader application (version 1.2 or above required). RUD-3-DES can also provide a transponder programmer functionality, but in such cases RogerVDM (1.2.4 or above required) should be used. Roger company offers SDK programming package that enables a programmer to develop customized applications for a specific requirements.

Features:

• MIFARE Classic transponders Ultralight, 1K, 4K, DESFire
• read number CSN, SSN, MSN, DESFire file
• write number SSN, MSN, DESFire file
• reading distance for MIFARE DESFire up to 3 cm
• USB-HID communication interface
• LED indicator
• configuration from PC (RogerVDM software)
• USB cable with magnetic stand
• for indoor use only
• SDK programming package

TECHNICAL PARAMETERS

• supply voltage: 5 VDC directly from the USB port
• cards: ISO/IEC 14443A MIFARE Classic, DESFire proximity transponders
• average current consumption: 80mA
• read range: up to 3cm
• reading time ~ 200ms
• IP65
• working temperature: +5 ° C ~ +45 ° C
• weight: approx. 20g
• dimensions: 88x30.5x14.5mm
