Roger RUD-2 USB EM 125 kHz Reader

Roger RUD-2 USB EM 125 kHz Reader

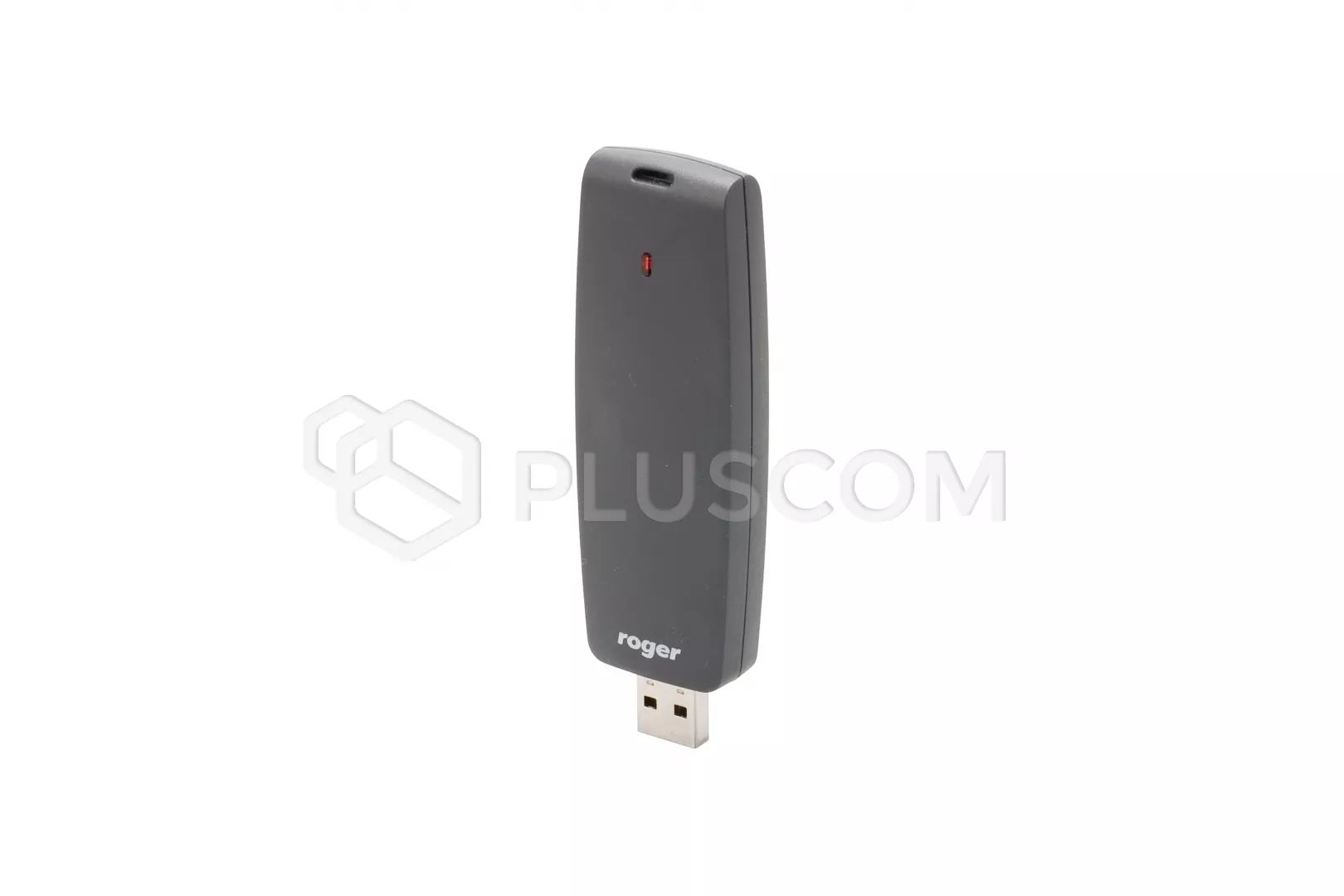

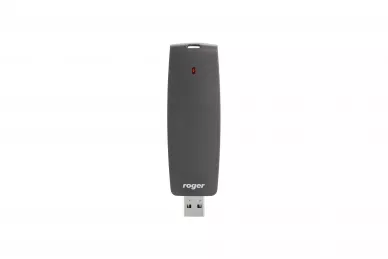

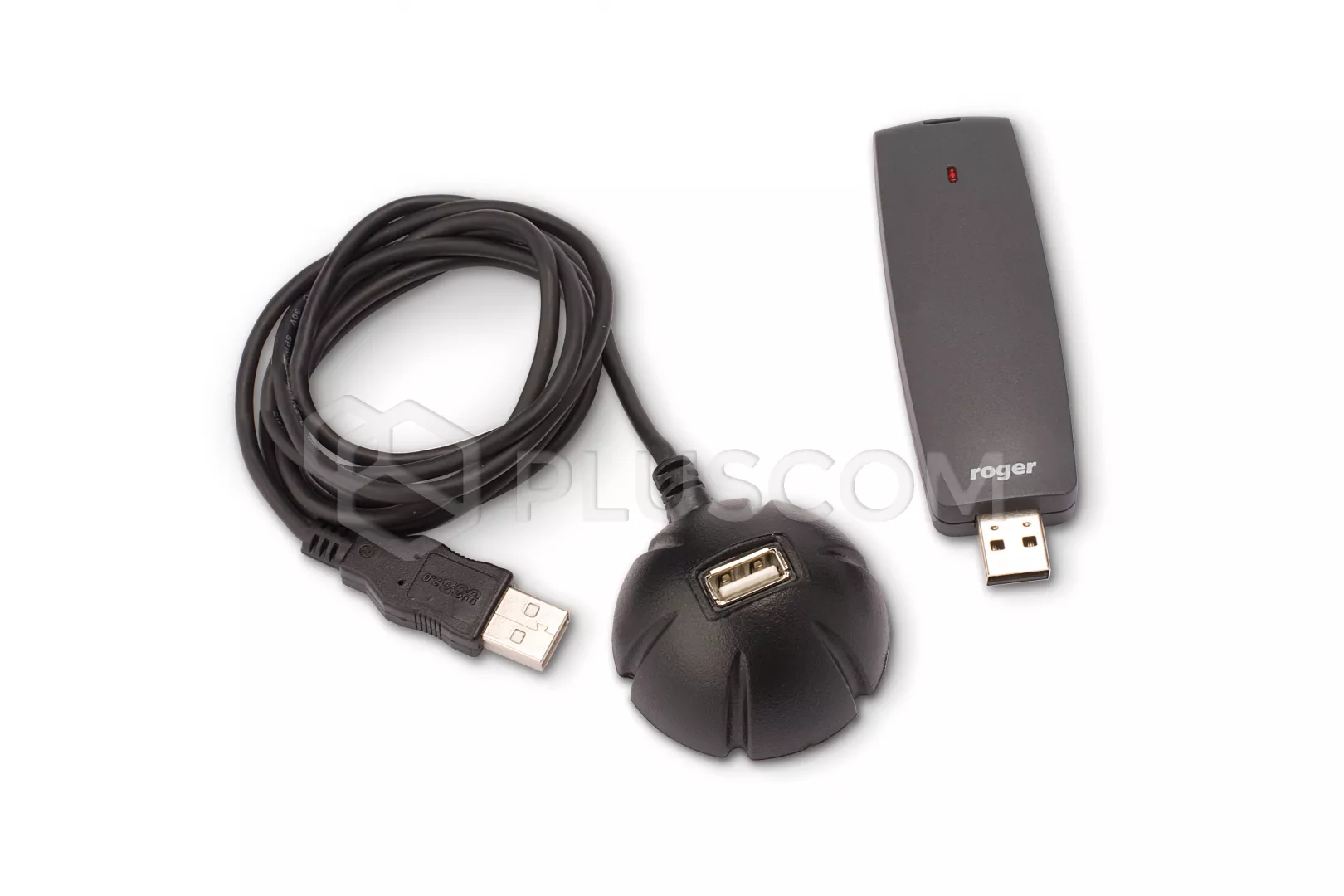

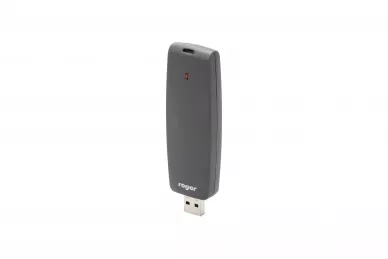

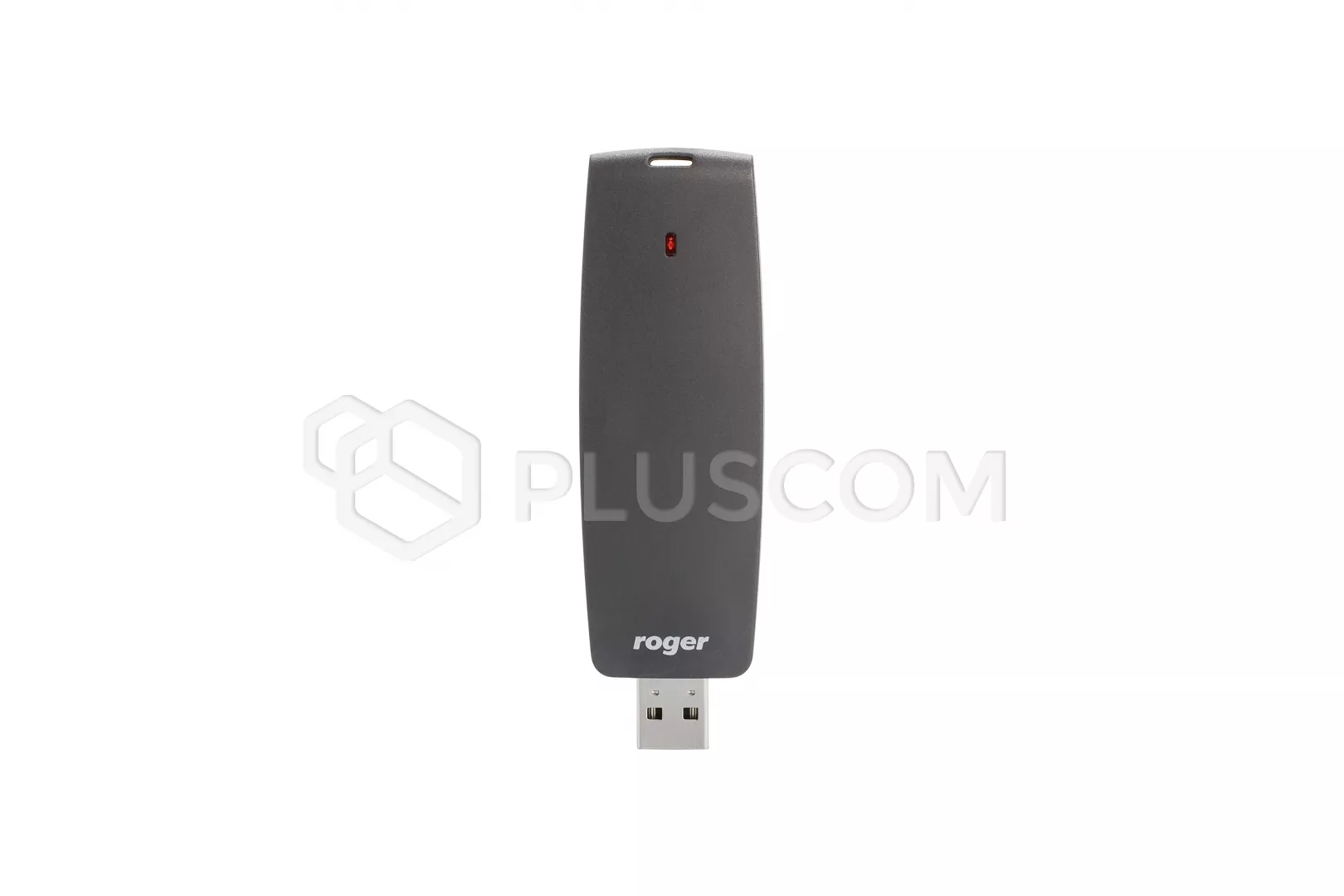

RUD-2 is a miniature reader for EM 125 kHz proximity transponders. The reader is supplied from serial USB port which is also used for communication with the device. The RUD-2 can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.4.8 is required) or using dedicated Roger MiniReader 1.1.3 application. For programmers who want to integrate RUD-2 with their systems the dynamic library DLL is available.

The RUD-2 can be used in three different scenarios:

• as a reader for card enrolling to the RACS access system
• as a reader for card enrolling through Roger MiniReader application
• as a reader used in third party applications using a DLL library provided

The reader is characterized by the fact that card readout is stable, fast and independent of computer performance and installation of dedicated drivers is not required.

TECHNICAL PARAMETERS

• supply voltage: 5 VDC directly from the USB port
• cards: EM 125 KHz (EM 4100/4102 compatible) proximity transponders
• average current consumption: 80mA
• read range: up to 3cm
• reading time ~ 200ms
• IP65
• working temperature: +5 ° C ~ +45 ° C
• weight: approx. 20g
• dimensions: 88x30.5x14.5mm
