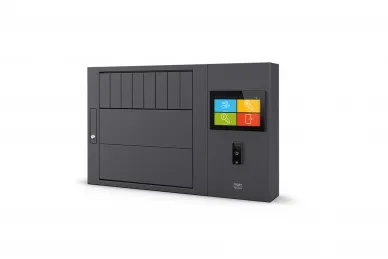

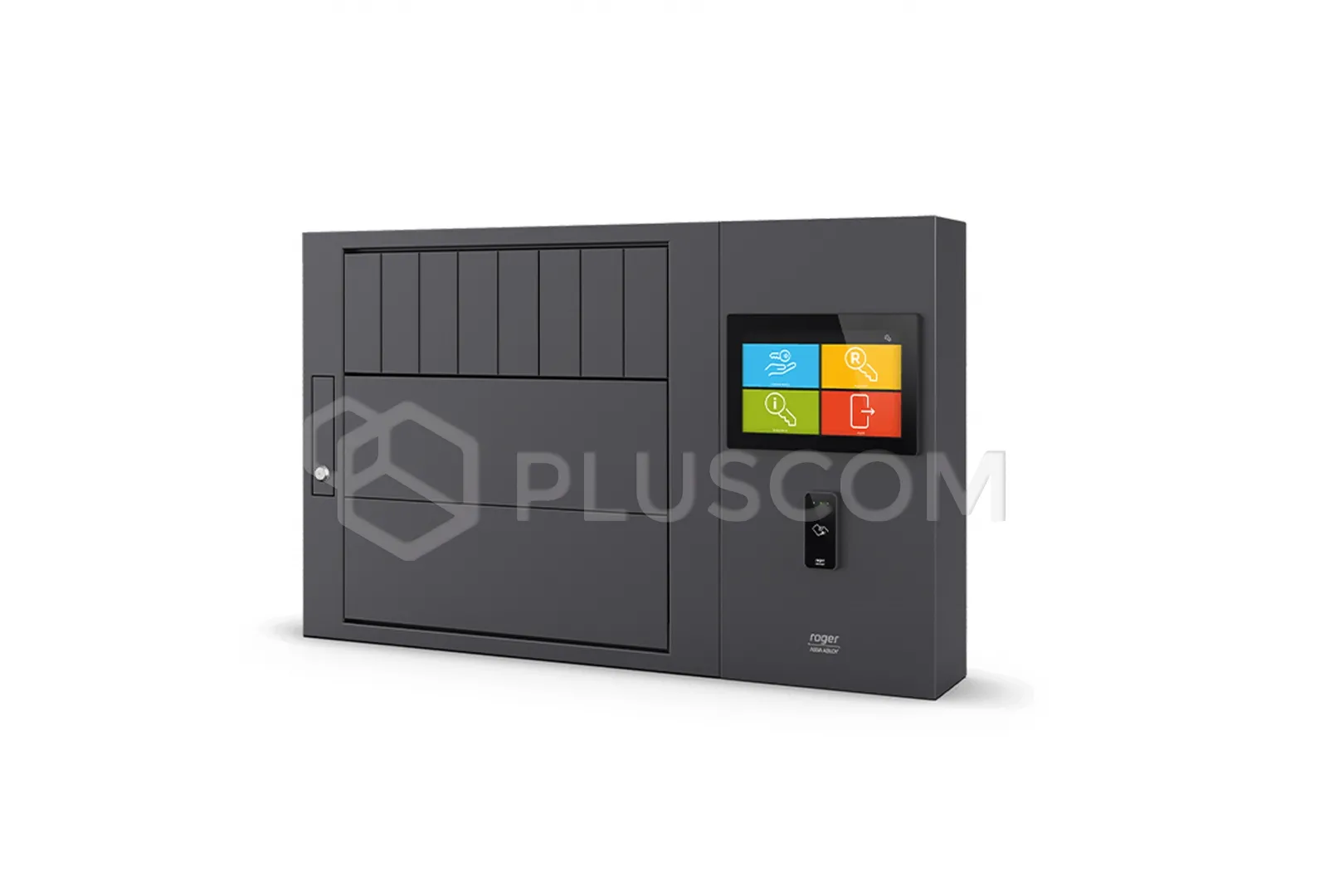

Roger RKD24CT-SE-8 Key depositor with independent compartments and a 10'' touch panel

Roger RKD24CT-SE-8 Key Depositor with Independent Compartments and a 10" Touchscreen Panel

The RKD24CT-SE-8 key depositor is an electro-mechanical system for distributing and monitoring key circulation within a facility. Each monitored key is permanently attached to a key fob containing a unique radio frequency (RFID) proximity identifier. The key is attached to the fob by the system user and does not require specialized equipment or additional seals.

Each key is stored in a separate compartment with a flap. Key collection is only possible by authorized users and at selected time intervals. System users are identified via a proximity card and/or PIN.

RKD24CT-SE-8 key depositors can operate in standalone or networked mode. When operating in network mode, configuration and monitoring of key circulation is performed via the RACS 5 (Roger) access control system software, and users can use the same identifiers as in the access control system. In the standalone version, the locker can be managed via a touchscreen control panel or remotely via a web browser.

FEATURES:

• Operates standalone or within the RACS 5 access control system
• Local management via touch panel
• Remote management via web browser
• Remote management via RACS 5 access control system software (VISO application)
• Graphical touch panel with a 10” screen
• ISO/IEC 14443A MIFARE® Ultralight, Classic, Plus, and DESFire EV1, EV2, EV3 card reader
• Supports encrypted MIFARE® card sectors
• Ability to connect an external reader with a Wiegand interface
• Ability to connect an external reader with a Roger RS485 interface
• 8 keys in the main safe deposit box RKD24CT-SE
• Option to connect 3 expansion lockers, RKD24CT-EXT or RKD32EXT, to the main locker RKD24CT-SE
• Permanent key-fob connection without the use of seals
• Option to use seals connecting the key to the key fob
• Mechanical key lock in the pocket
• Contactless key identification and presence control via MIFARE® proximity identifier
• Multi-level key access authorization system with time schedules
• Limit the number of keys collected by the user
• Division of keys into internal and external key groups
• Option for commissioned key collection
• Dual card+PIN identification mode
• Loan time overrun warning Keys
• Quick key return option without the need to identify the person returning the key
• Operation mode with a fixed key place
• Alarm event reporting via email
• Automatic indication of key position in the safe deposit box
• Key reservation
• User activity reporting
• Key circulation reporting
• Generating and sending reports
• Emergency unlocking of all keys via an external signal (e.g., from the fire alarm control panel)
• Emergency unlocking of keys from the emergency panel
• Possibility of expanding safe deposit boxes on site
• Detection of safe deposit box door opening
• Detection of safe deposit box housing opening (anti-sabotage)
• RAL7016 metal housing
• Housing dimensions: 600 x 969 x 182 mm
• Internal compartment dimensions: 115 x 55 x 73 mm
• Other compartment sizes available upon request
• Weight: 48.5 kg
• MK option: Master Key for opening the housing
• Software integration with third-party systems (SDK package)
• Built-in 230 VAC buffer power supply
• Space for an 18 Ah battery
• Post-warranty service
• No warranty inspections required
