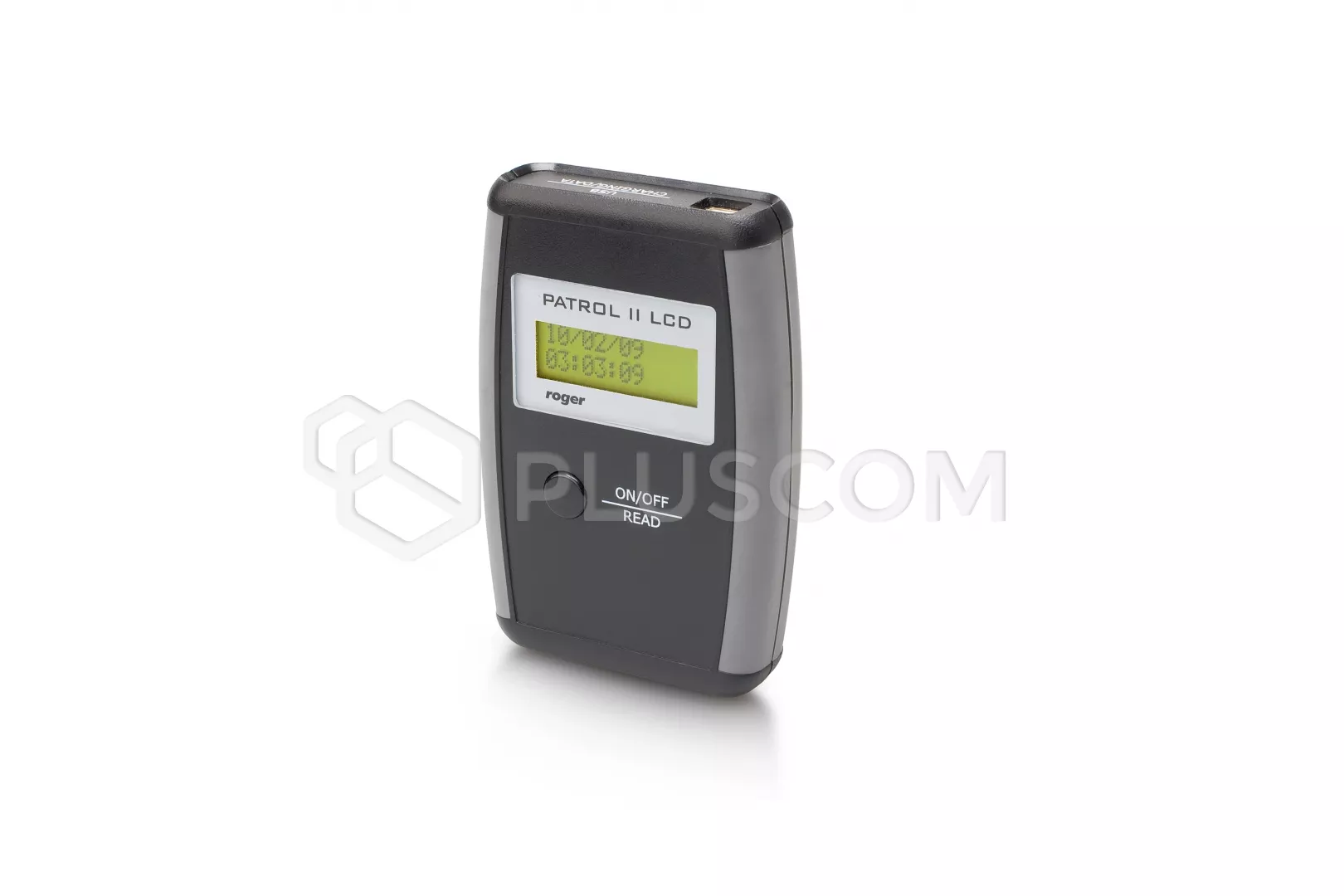

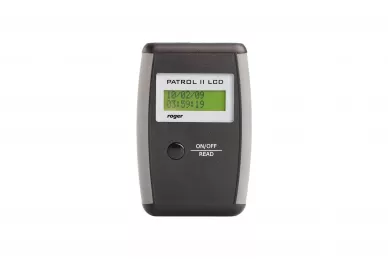

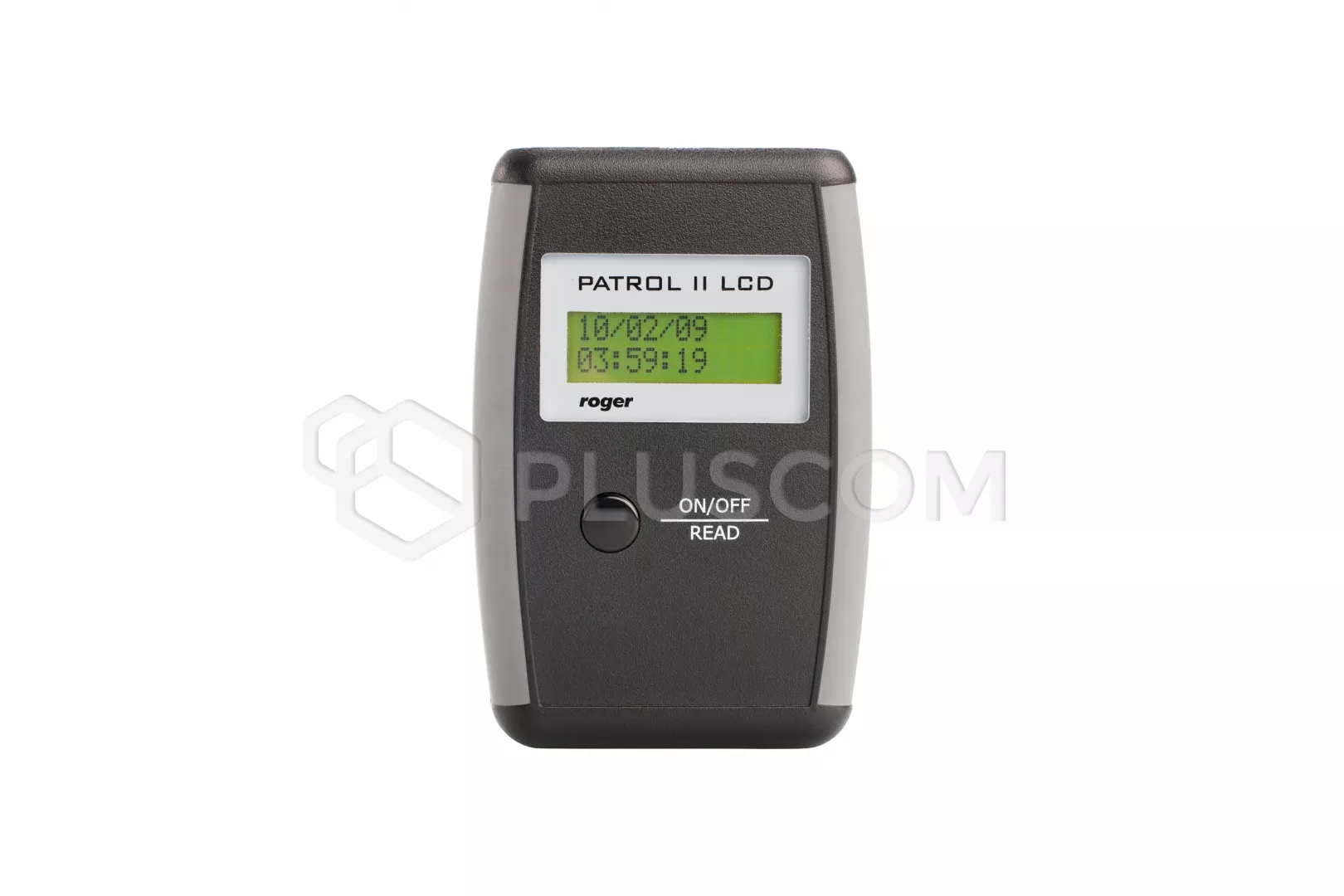

Roger PATROL II LCD Portable Reader

248,62 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #22442
Manufacturer: Roger
  • LCD display with backlight
  • Labels memory: 1000
  • Number of read cycles without a necessity to recharge batteries: 8000
  • Events log: 32768
  • Communication through USB port
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PK-3 Proximity Checkpoint Roger PK-2 Proximity Checkpoint

Roger PATROL II LCD Portable Reader

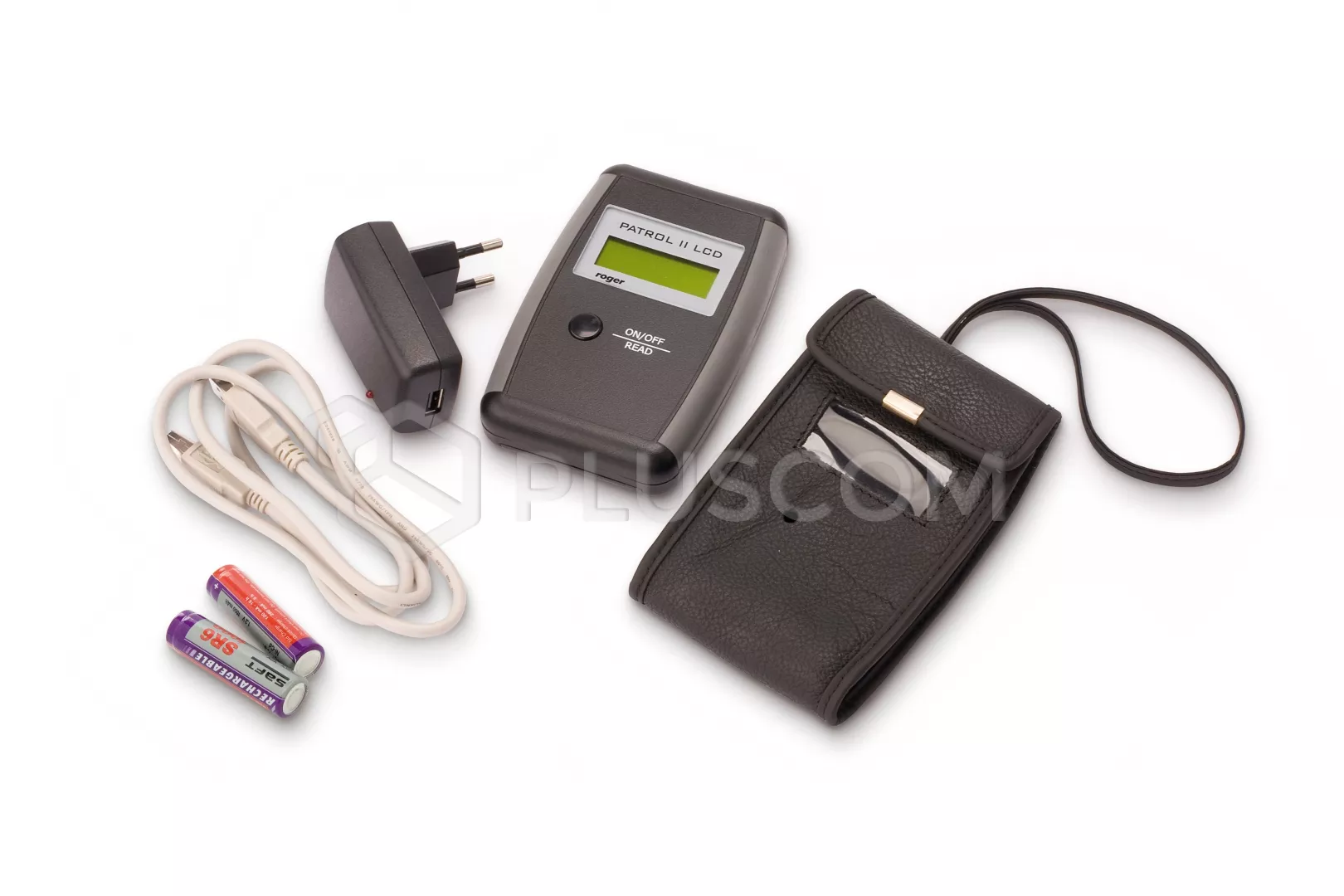

The kit includes:
  • reader
  • EMC-1 proximity card (3pcs)
  • checkpoint PK-2 (5 items)
  • PK-3 checkpoint (1 pc.)
  • CP-1 card holder (3pcs)
  • USB cable
  • two AA 1.2V batteries
  • battery charger
  • case
PATROL II LCD is a versatile portable proximity ID badge reader that may find application wherever it is necessary to confirm the employee’s presence at a designated place and time. A checkpoint may be any inexpensive and easily available proximity transponder of EM 125 kHz standard.
PATROL II LCD records the codes of checkpoints that have been read out and their readout date and time. The reader works with free of charge Patrol Master 3 software that allows reading the recorded events out and creating reports on work progress. In addition, the inspection round schedule can be programmed in the reader to inform the user where and at what time the next readout is to be done.
Roger PATROL II LCD Portable Reader

Roger PATROL II LCD Portable Reader


The reader records and signals the following alarm and service events via the LCD:
  • warning against filling up the memory
  • memory overfilled
  • low battery warning
  • reader overprogramming
  • date and time change
  • start, end and interruption of charging
Installation of the work recording system is very easy and consists in arrangement of checkpoints in selected places within the facility and configuration of the reader. Every checkpoint and user’s ID badge can be assigned labels (names) to allow easy interpretation of the history of recorded events later on.

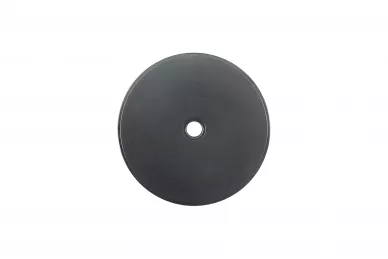

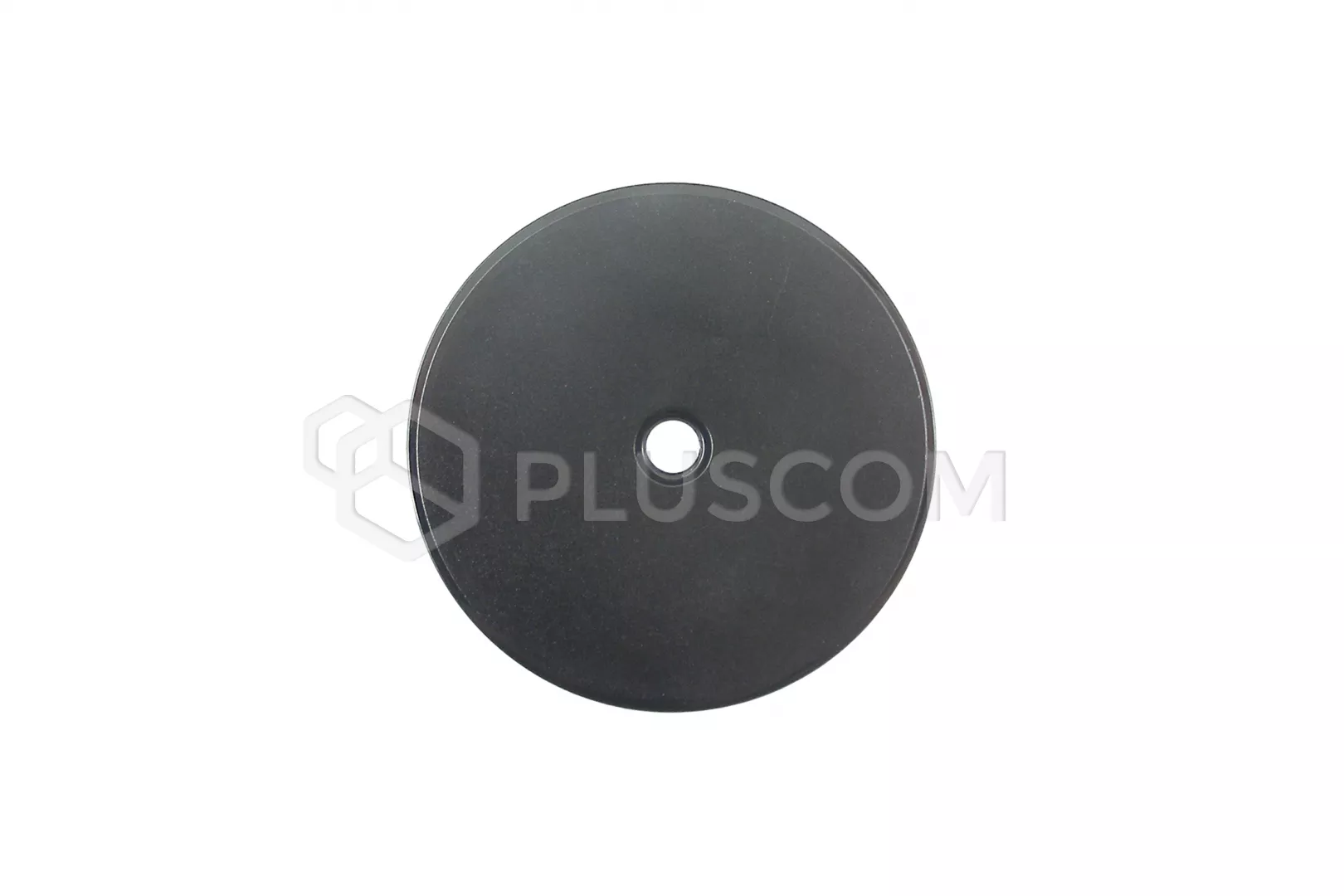

Checkpoint PK-2

Checkpoint PK-2

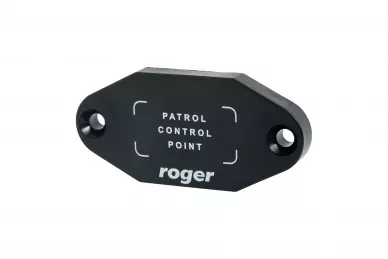

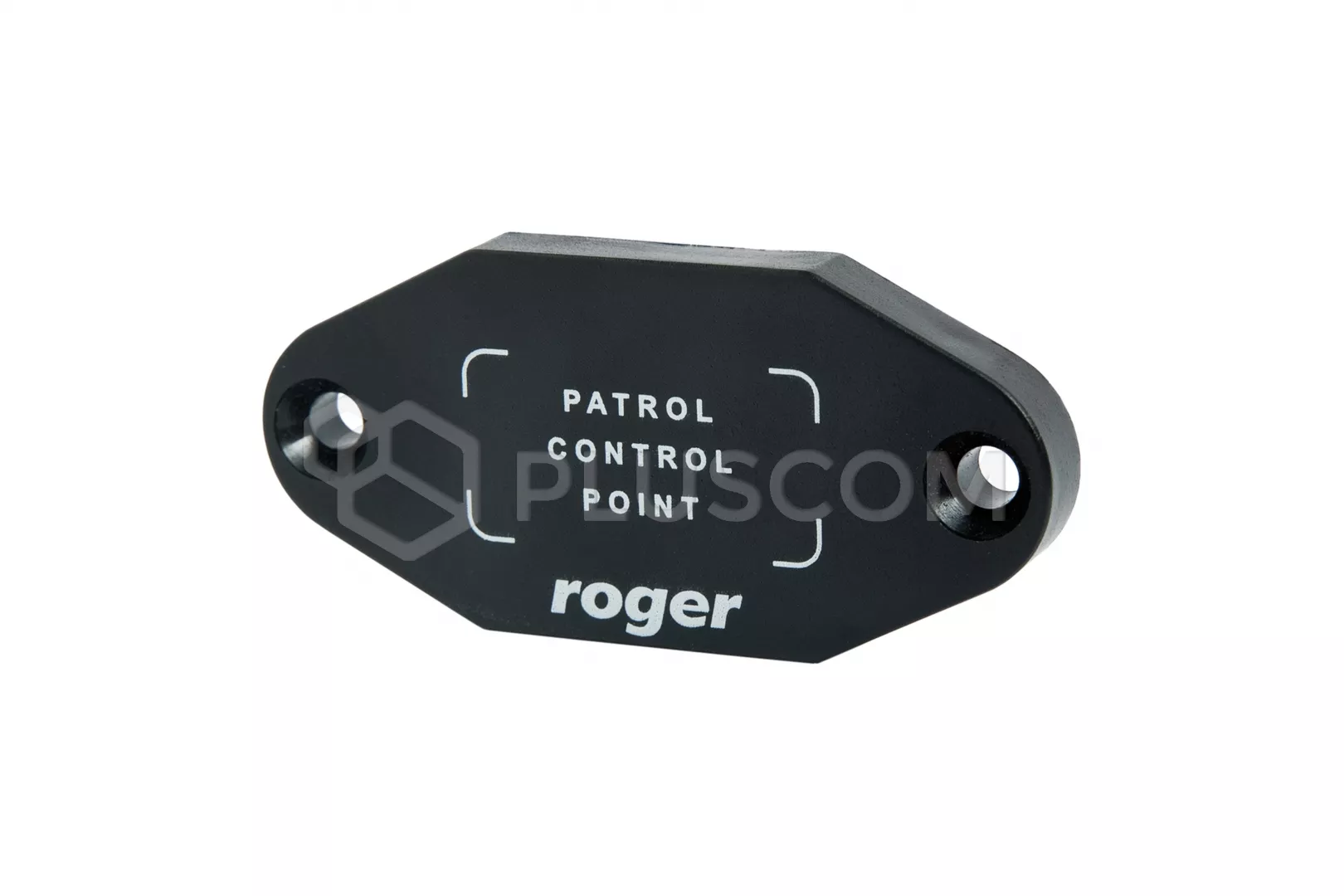

Checkpoint PK-23

Checkpoint PK-23


FEATURES:
  • operates with EM 125 KHz proximity cards and tags
  • resistant to humidity and water condensation
  • LCD display with backlight
  • simple and intuitive operation with a single key
  • non-volatile 32.768 event log buffer
  • up to 8K reads cycles without battery charging
  • guard tour, alarms and maintenance events
  • high mechanical durability - shock resistant for 1.5 m free falling
  • non-eraseable event register (reconstruction of events canceled intentionally)
  • programming and maintenance through USB
  • displays guard and checkpoint names
  • free windows managing software
  • displays guard tour schedule hints
  • warranty and non-warranty service
  • communication through USB port
  • firmware upgrade via USB
  • battery charging from PC’s USB or AC charger
  • possibility to customize the device
  • supply from two LR6 (AA) batteries

Roger SL2000F Indoor code lock

Roger SL2000F Indoor code lock


SPECIFICATION
  • charging: from USB port of PC or from dedicated AC charger (s 5V voltage and may consume up to 0.5 A current)
  • power: 2 x LR6 (AA) 1.5V batteries / accumulators
  • cworking temperature: -25°..+60°C
  • dimensions: 79x117x24mm
  • weight: ≈200g
Download
Datasheet 0.33 MB
CE Declaration 0.13 MB
User Manual 1 MB
