Roger MC16-PAC-ST-6 Network Access Controller for 6 Doors

956,62 EUR including 23.00% VAT
Product code: #43672
Manufacturer: Roger
  • Access control for 6 doors
  • Input lines: 36
  • Output lines: 24
  • Works only with the VISO ST (Standard) app
  • For smaller systems or standard applications
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

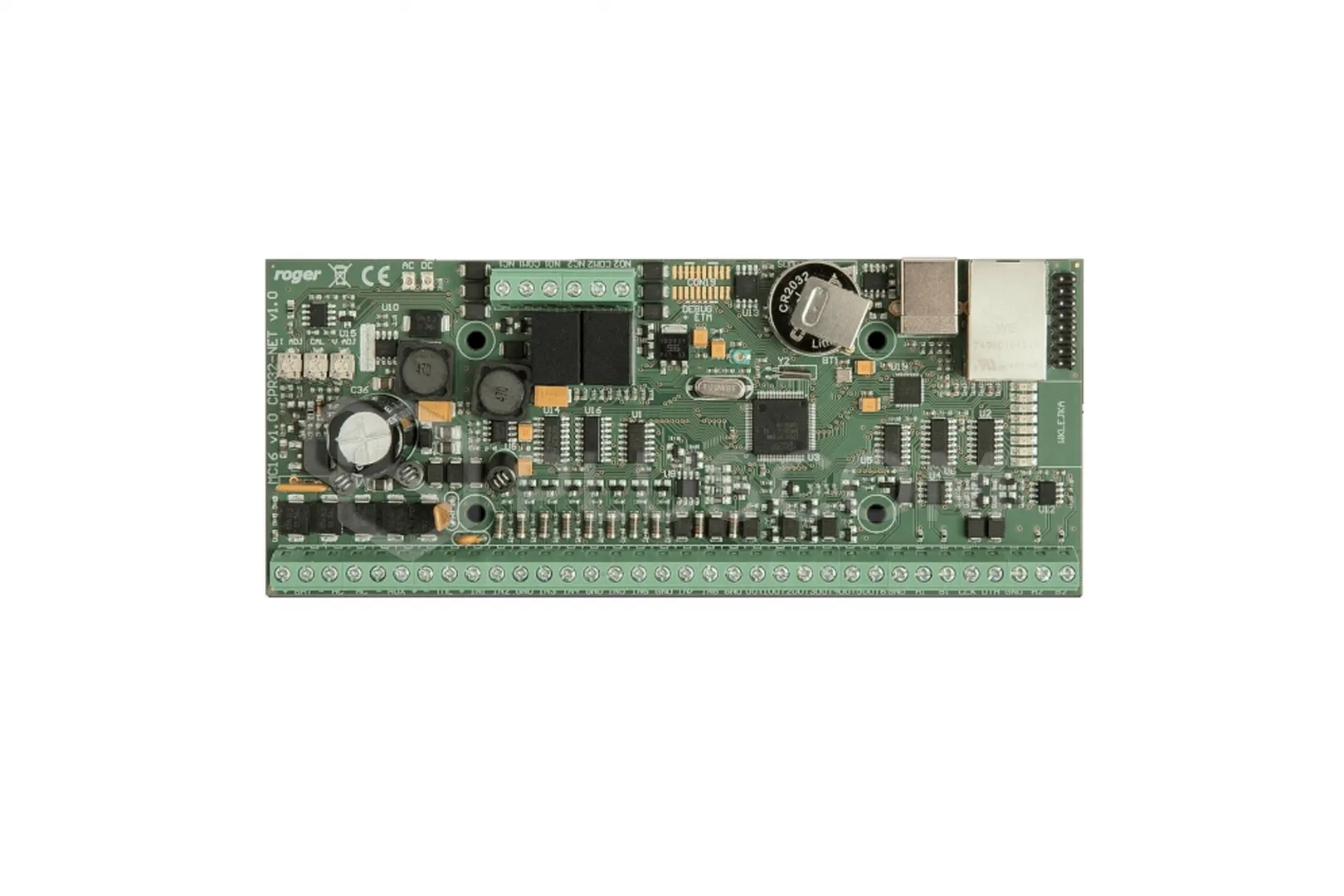

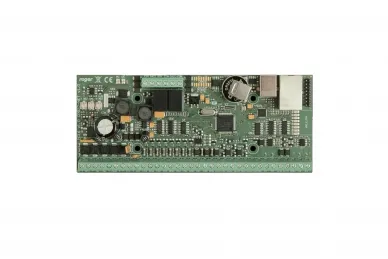

Roger MC16-PAC-ST-6 Network Access Controller for 6 Doors in the ST (Standard) Version


The MC16-PAC-ST-6 is a networked access and building automation controller dedicated to the RACS 5 v2 system in the ST (Standard) version. It works only with VISO ST software, offering basic access control functions.

The controller is managed using the VISO ST application, which enables interaction with a Microsoft SQL Server database. System management can be performed from multiple workstations running the VISO ST program and by operators with varying levels of privileges. The system enables free access to the system event log as well as user management. Communication with the management computer is achieved via a LAN/WAN network using the AES128-CBC encrypted protocol.

FEATURES:
  • 12,000 identifiers
  • 8 media (card, PIN, fingerprint, etc.) within a single identifier
  • 100 authorizations per identifier
  • 6 two-way passages (doors)
  • 12 identification points
  • 24 access terminals (readers)
  • 12 access zones
  • 12 alarm zones
  • 12 automation nodes
  • 512 authorizations
  • 64 rules within a single authorization
  • 64 T&A modes
  • 16 identification modes
  • 4 identification steps within a single identification mode
  • 36 Input lines (motherboard, expanders, built-in inputs on readers)
  • 24 output lines (motherboard, expanders, built-in inputs on readers)
  • 48 function keys
  • 12 local commands
  • Multiple entry blocking with timed reset (Timed Anti-passback)
  • 32 calendars
  • 99 time periods within a calendar
  • 250 time schedules
  • 40 time periods within a single schedule
  • 16 exceptions within a single schedule
  • Direct support for 16 MCT series readers (RS485 interface)
  • Support for up to 16 OSDP readers (OSDP v2 protocol) via the MCI-3 interface
  • Ability to connect 4 PRT series readers to the controller's motherboard
  • Ability to connect 4 Wiegand readers to the controller motherboard
  • Support for PRT and Wiegand readers via MCX bus interfaces
  • 8 parametric input lines on the controller board
  • 8 15 V/150 mA DC transistor outputs on the controller board
  • 2 30 V/1.5 A AC/DC relay outputs on the controller board
  • 8 million event buffer on a replaceable memory card
  • DC or AC power supply
  • Backup battery charging and monitoring
  • RACS CLK/DTA interface
  • RS485 interface
  • Ethernet interface
  • AES128-CBC encrypted data transmission
  • Quick configuration (less than 1 minutes)
  • Background settings transfer without interrupting current system operation
  • Built-in switching power supply with 12 VDC/1.0 A output
  • Dimensions: 72.0 x 175.0 x 30.0 mm
