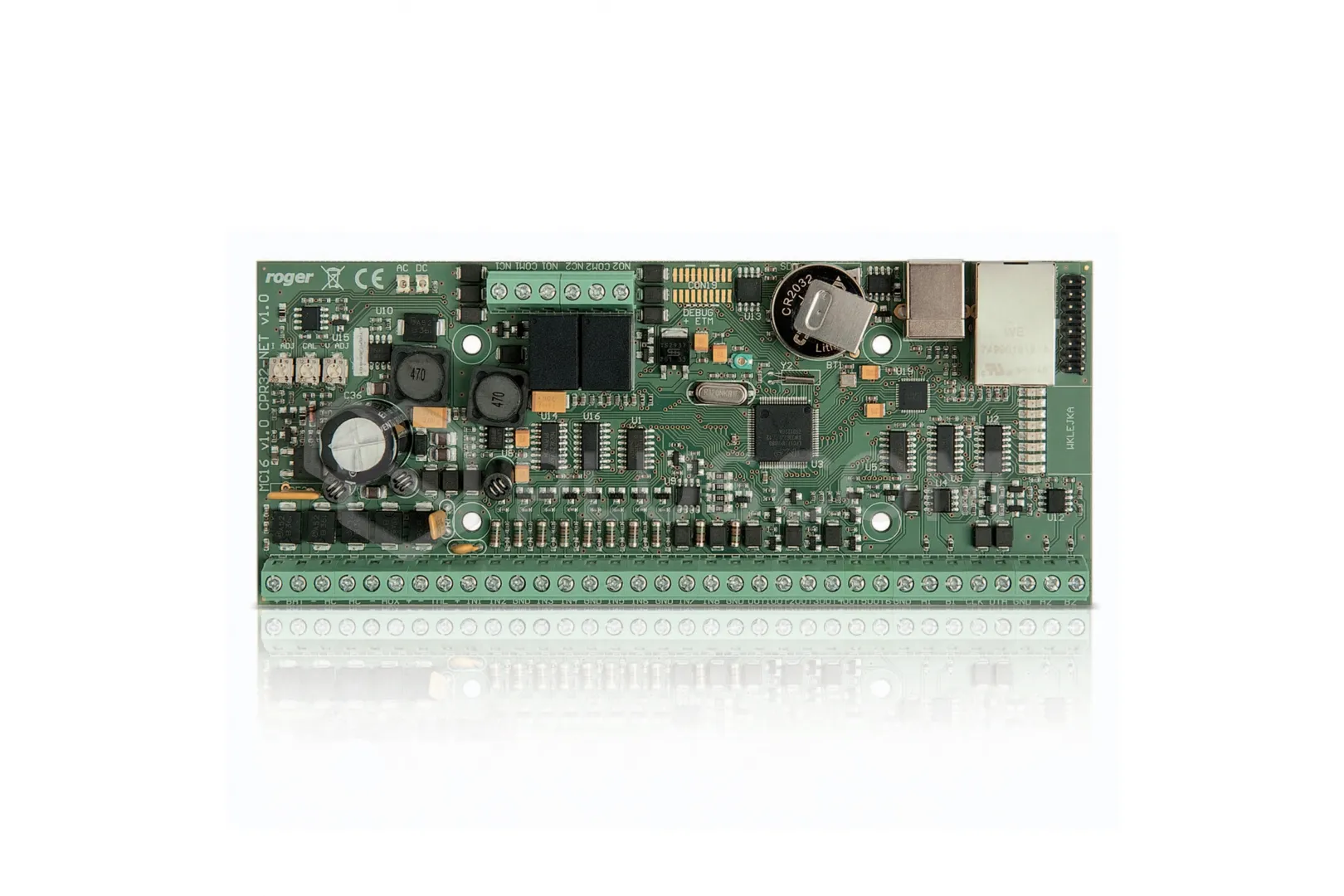

Roger MC16-PAC-EX-15 Network Access Controller for 15 Doors

4093,13 EUR including 23.00% VAT
Product code: #43657
Manufacturer: Roger
  • Access control for 15 doors
  • Input lines: 90
  • Output lines: 60
  • Event registration for RCP purposes
  • Extended version
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Roger MC16-PAC-EX-15 Network Access Controller for 15 Doors


The MC16-PAC-EX-15 is a networked access and building automation controller dedicated to the RACS 5 v2 EX system - an expanded, more intelligent version designed for more complex systems that require integration with alarms and advanced supervision.

It offers event logging for time and attendance purposes and integration with the alarm system. The integration concept with the alarm system allows for the presentation of alarm zone status and its control directly from access terminals.
It enables more efficient management of users and their permissions. It is managed using the VISO EX application and a Microsoft SQL Server database, communicating with the management computer over LAN/WAN using AES128-CBC encryption.
The controller offers a faster and more efficient configuration process, regardless of the number of controllers.

FEATURES:
  • 12,000 identifiers
  • 8 media (card, PIN, fingerprint, etc.) within a single identifier
  • 100 authorizations per identifier
  • 15 two-way passages (doors)
  • 30 identification points
  • 60 access terminals (readers)
  • 30 access zones
  • 30 alarm zones
  • 30 automation nodes
  • 512 authorizations
  • 64 rules within a single authorization
  • 64 T&A modes
  • 4 identification steps within a single identification mode
  • 90 input zones (motherboard, expanders, built-in reader inputs)
  • 60 input zones (motherboard, expanders, built-in inputs on readers)
  • 120 function keys
  • 30 local commands
  • Multiple entry blocking with timed reset (Timed Anti-passback)
  • 32 calendars
  • 99 time periods within a calendar
  • 250 time schedules
  • 40 time periods within a single schedule
  • 16 exceptions within a single schedule
  • Direct support for 16 MCT series readers (RS485 interface)
  • Support for up to 16 OSDP readers (OSDP v2 protocol) via the MCI-3 interface
  • Ability to connect 4 PRT series readers to the controller's motherboard
  • Ability to connect 4 Wiegand readers to the controller motherboard
  • Support for PRT and Wiegand readers via MCX bus interfaces
  • 8 parametric input lines on the controller board
  • 8 15 V/150 mA DC transistor outputs on the controller board
  • 2 30 V/1.5 A AC/DC relay outputs on the controller board
  • 8 million event buffer on a replaceable memory card
  • DC or AC power supply
  • Backup battery charging and monitoring
  • RACS CLK/DTA interface
  • RS485 interface
  • Ethernet interface
  • AES128-CBC encrypted data transmission
  • Quick configuration (less than 1 minutes)
  • Background settings transfer without interrupting current system operation
  • Built-in switching power supply with 12 VDC/1.0 A output
  • Dimensions: 72.0 x 175.0 x 30.0 mm (H x W x D)
Download
