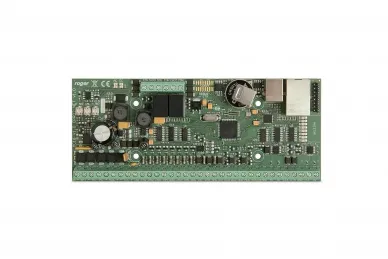

Roger MC16-PAC-13 Network Access Controller for 13 Doors

2347,36 EUR including 23.00% VAT
Product code: #43646
Manufacturer: Roger
  • Access control for 13 doors
  • Input lines: 78
  • Access terminals: 52
  • Access zones: 26
  • Possibility to connect a WIEGAND reader
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

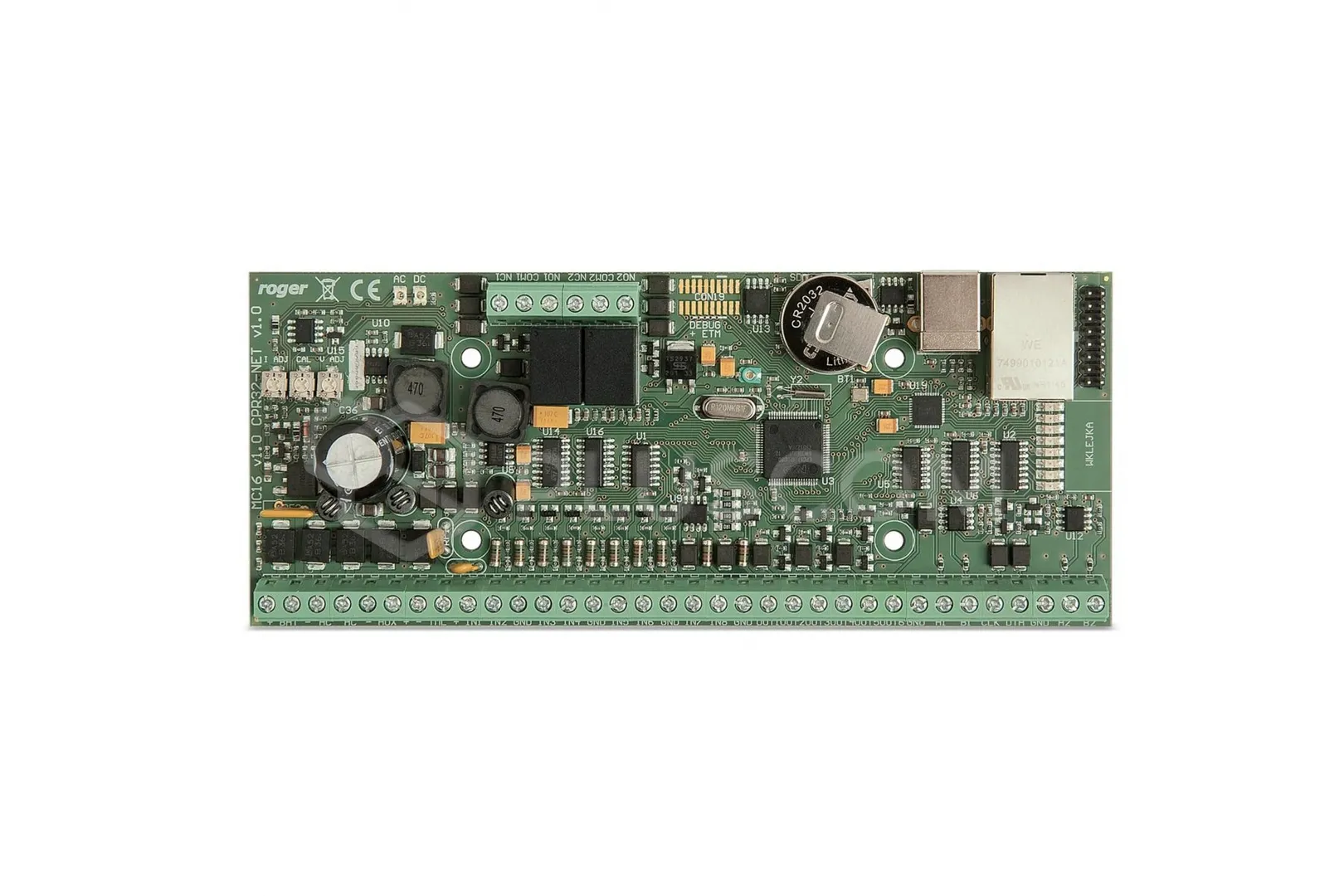

Roger MC16-PAC-13 Network Access Controller for 13 Doors


The MC16-PAC is an access and building automation controller dedicated to the RACS 5 system for 13 doors.
It offers event logging for time and attendance purposes and integration with the alarm system. The integration concept with the alarm system allows for the presentation of the alarm zone's status and its control directly from the access terminals.

The controller is managed using the VISO application, which enables interaction with the Microsoft SQL Server server database and the Microsoft SQL Server Compact file database. System management can be performed from multiple workstations running the VISO program and by operators with varying levels of authorization. Communication with the management computer is achieved via LAN/WAN using the AES128 CBC encrypted protocol.

FEATURES:
  • Number of supported passages: 13
  • Inputs: 78
  • Outputs: 52
  • Number of users: max. 8192 - Number of IDs
  • Number of ID media: 8 - Proximity card, PIN, fingerprint, etc.
  • Number of authorizations per ID: 32
  • Buffer memory: 8,000,000 event buffer
  • MCT reader support: 16
  • Reader connections: 4 - Wiegand / PRT
  • Number of login points: 26
  • Number of access terminals: 52
  • Number of access zones: 26
  • Number of alarm zones: 26
  • Number of automation nodes: 26
  • Battery support: 13.8 V / 7 Ah
  • Communication:
    • Ethernet 10BASE-T 10/100 Mb/s - RJ-45 socket
    • 2 x RS-485 port
    • RACS (Roger)
  • Automation control from system terminals
  • Presentation of alarm monitoring states on terminals
  • Control of monitoring status of alarm system zones
  • Hardware integration with alarm and fire protection systems
  • Multifunctional parametric inputs, including double wiring
  • Weekly access schedules
  • Multi-year exception calendars
  • Integrated operation in the VISO software
  • Power supply:
    • 17 - 18 V AC
    • 10 - 15 V DC
    • 22 - 26 V DC
  • Operating temperature: 5 °C ... 40 °C
  • Weight: 0.15 kg
  • Dimensions: 175 x 72 x 30 mm
Download
