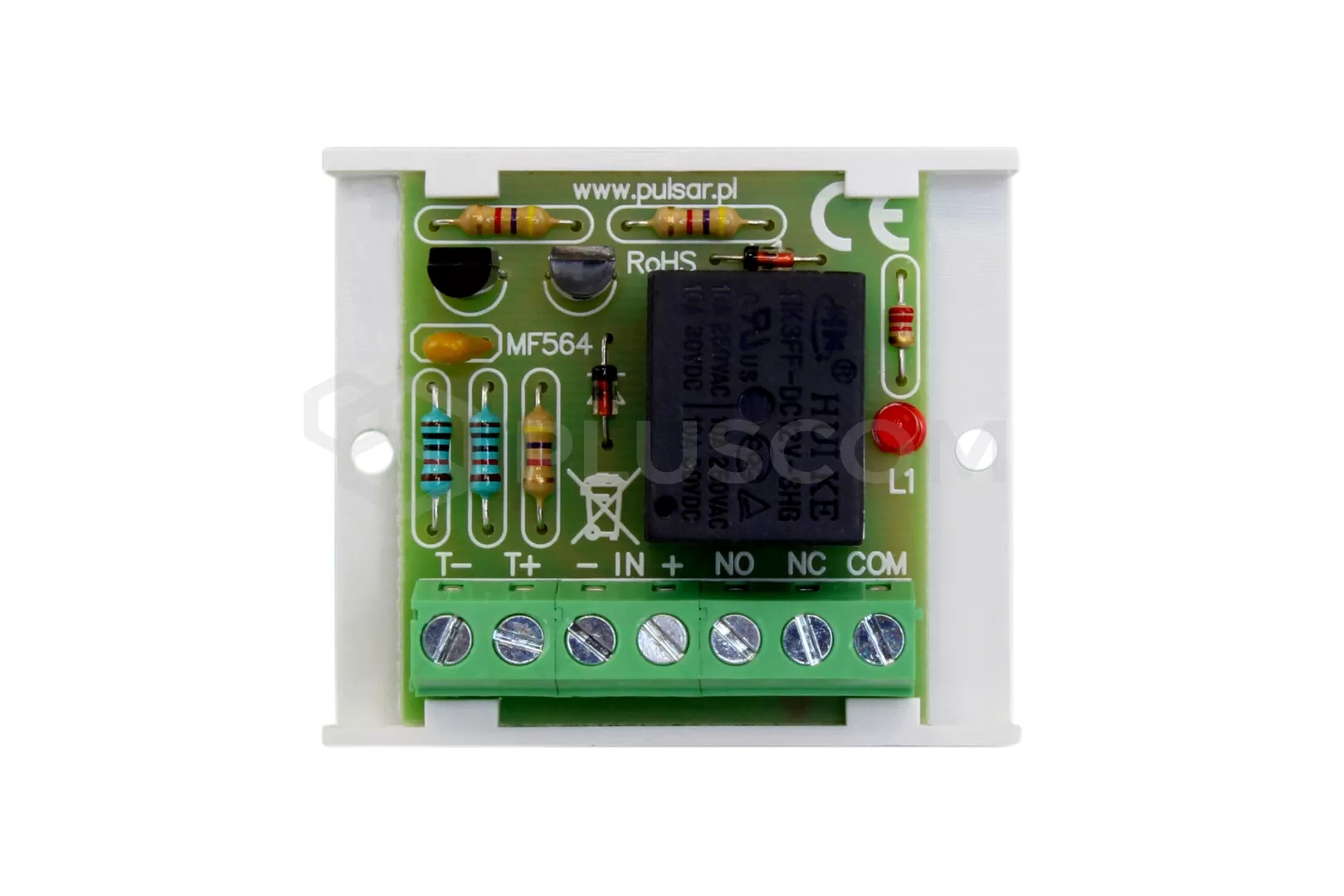

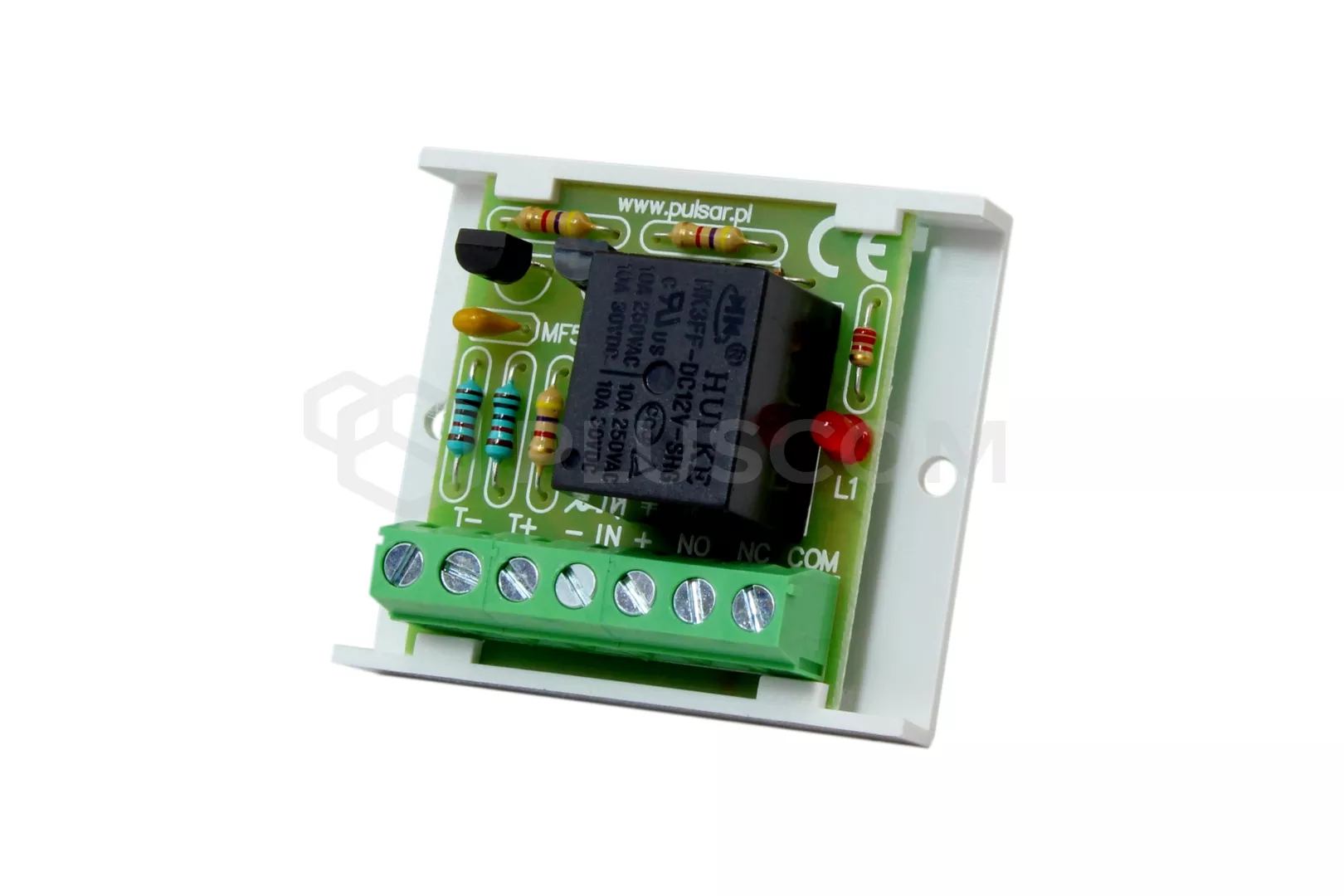

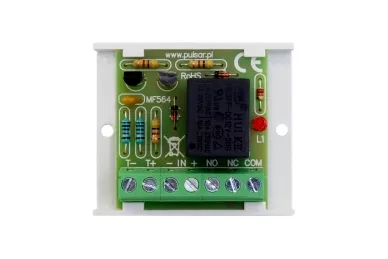

Relay module Pulsar AWZ 610

9,96 EUR including 23.00% VAT
Product code: #10677
Manufacturer: Pulsar
  • The number of relays: 1
  • The number of contacts: 1
  • Supply voltage: 10-14V DC
  • T input, used to trip relays low / high condition
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Relay module PK2 Pulsar AWZ508

Pulsar AWZ610 MP1 Relay module

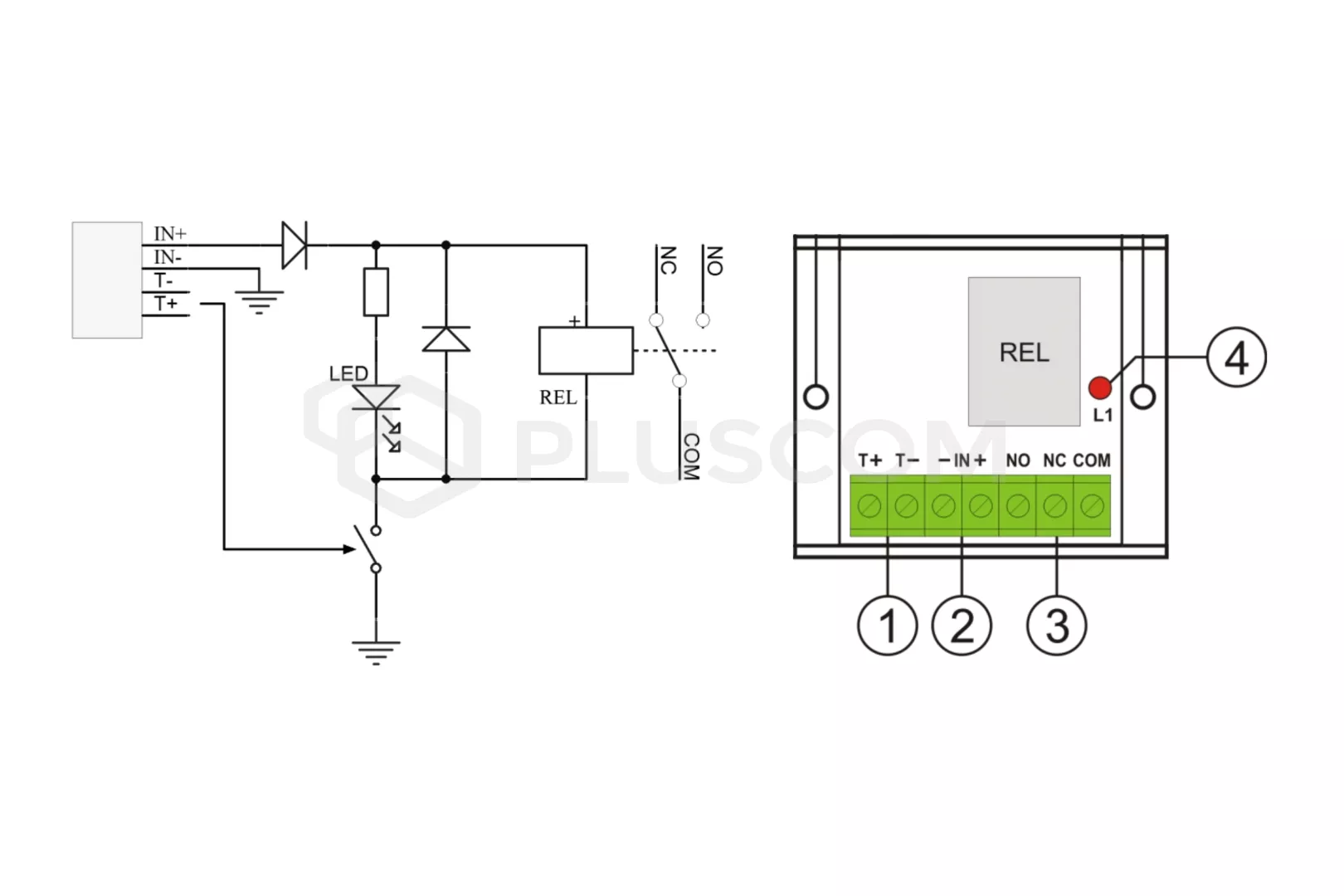

The MP1 (AWZ610) relay module is to be used in low-voltage installations. It is intended for controlling and status indication in e.g. alarm or access control systems. It may be used to control devices of high power consumption via OC outputs of alarm systems. Moreover, it ensures galvanic isolation of signals, power sources relating to the outputs of the module. It is equipped with two separate T+, T- inputs used to trip relays with high or low condition.
Relay module Pulsar AWZ 610

Relay module Pulsar AWZ 610


SPECIFICATION:
  • Voltage of the relay’s coil: 12V (10VDC÷14VDC)
  • Power consumption: 45mA max.
  • Number of relays: 1
  • Voltage of the relay’s contacts: 30VDC / 50VAC max.
  • Tripping voltage T
    • T+ 5V - (Unom.)
    • T- 0V - (Unom - 5V)
  • Current of the relay’s contacts: 2A max.
  • Operating conditions: II environmental class, -10°C...50°C
  • Dimensions 50x22x43 (WxHxD)
  • Net/gross weight 0,03 / 0,05 [kg]

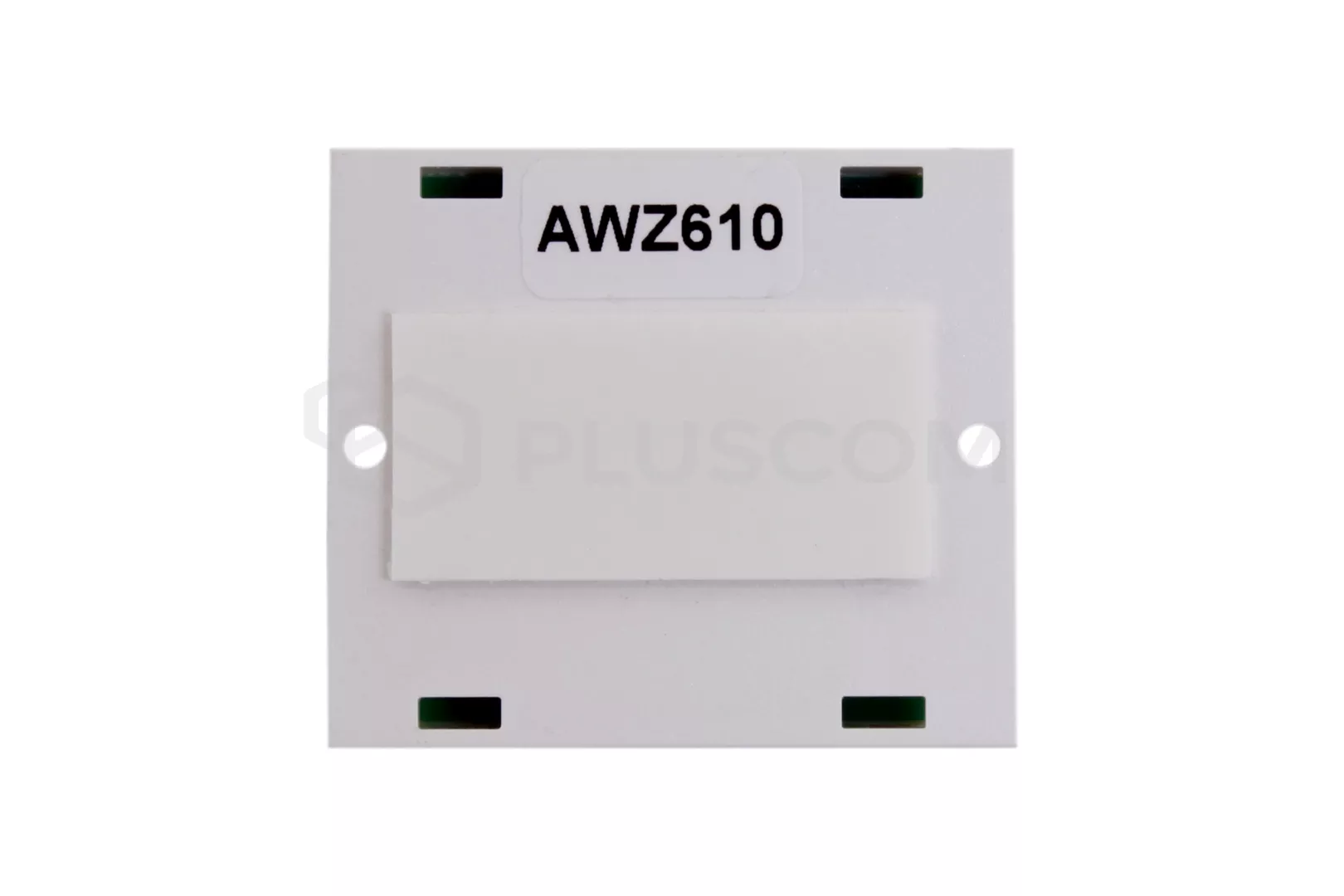

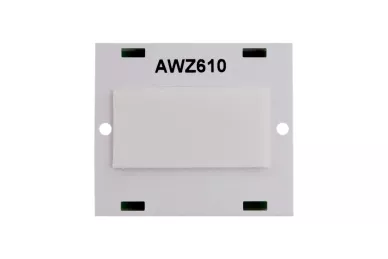

  • Installation: Iinstallation tape or installation bolt x2
  • Notes leads on connections: Ø 0,41-1,63 (AWG 26-14), 0,2-1mm2
