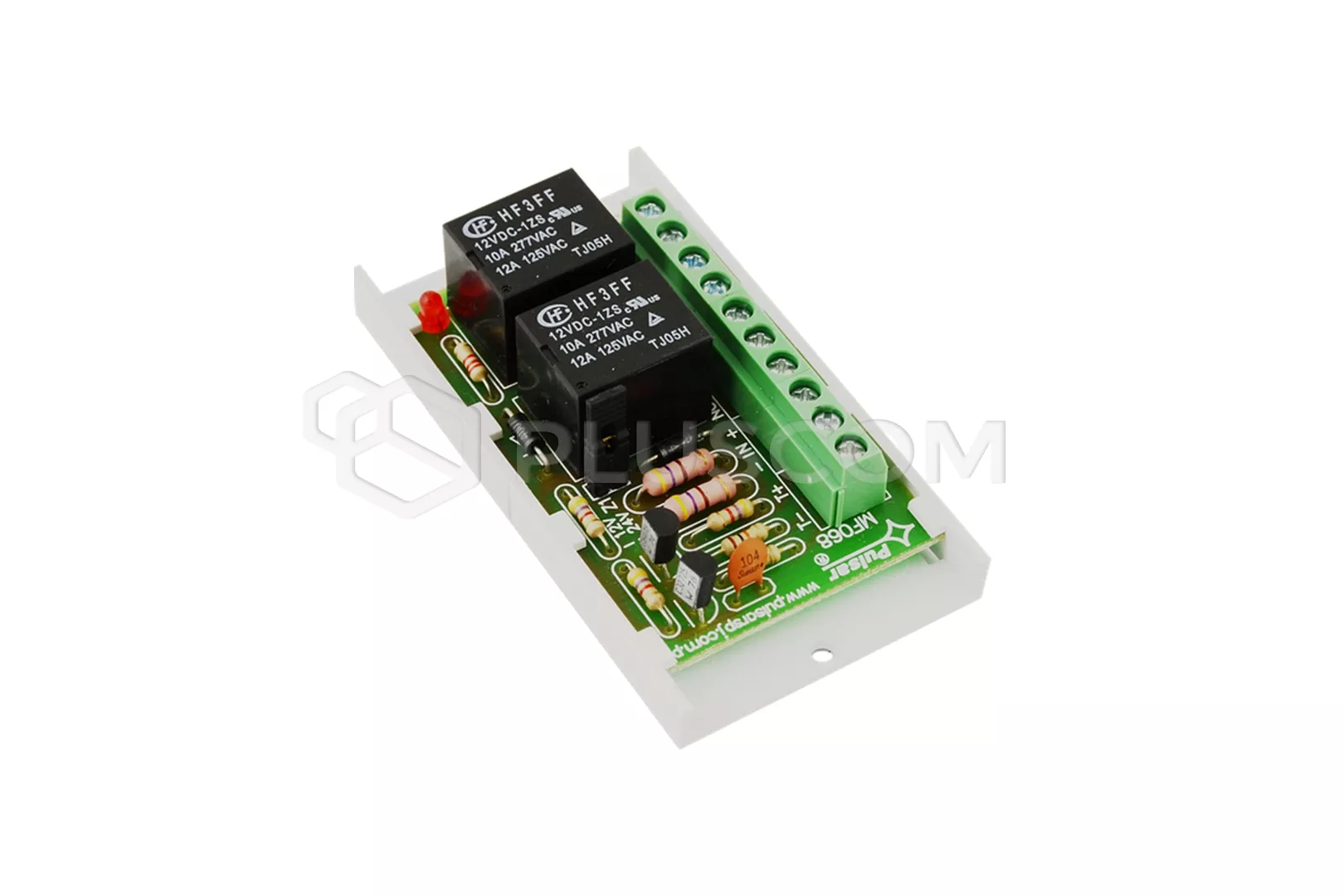

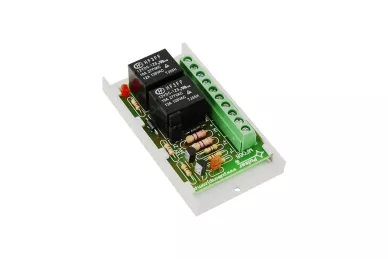

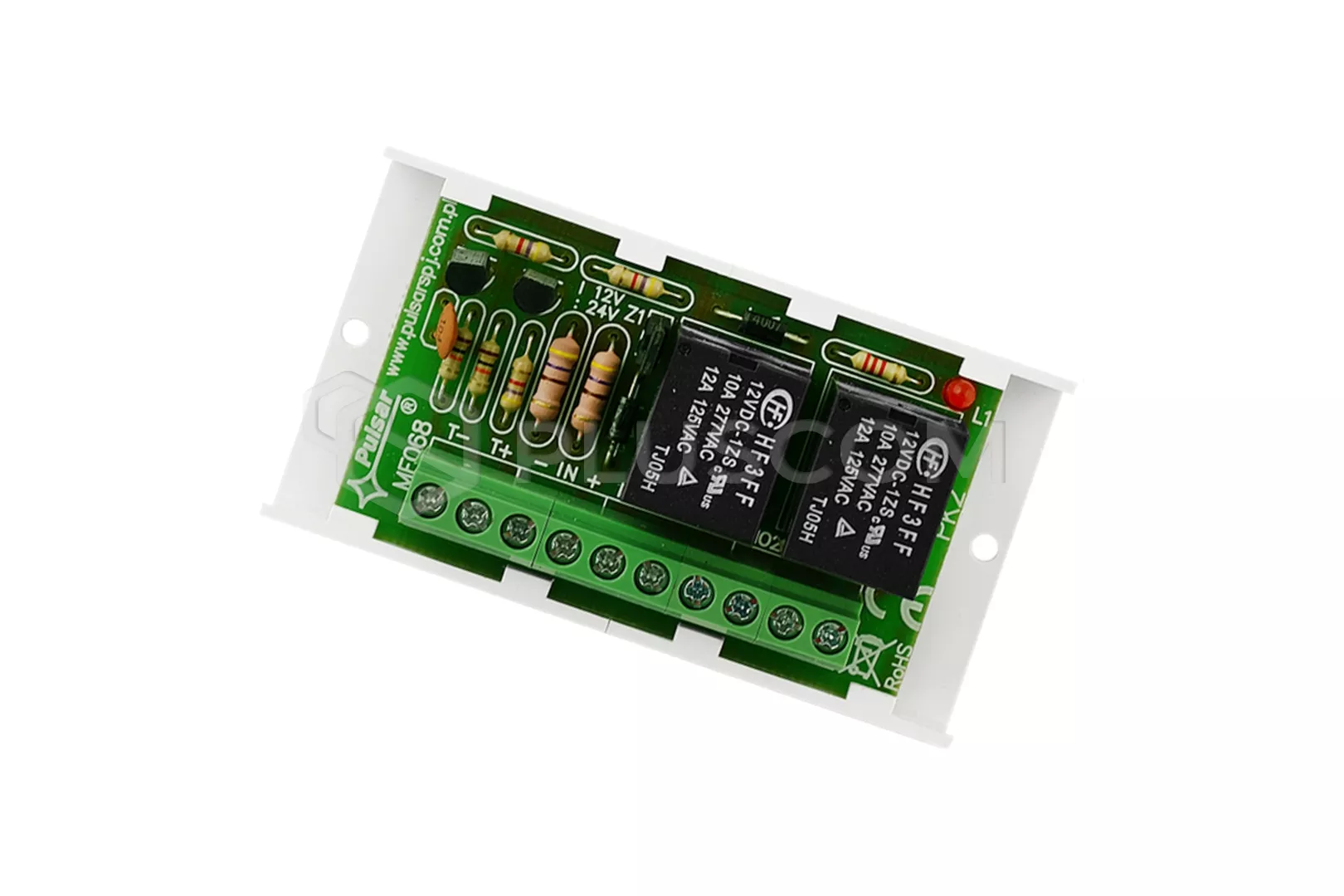

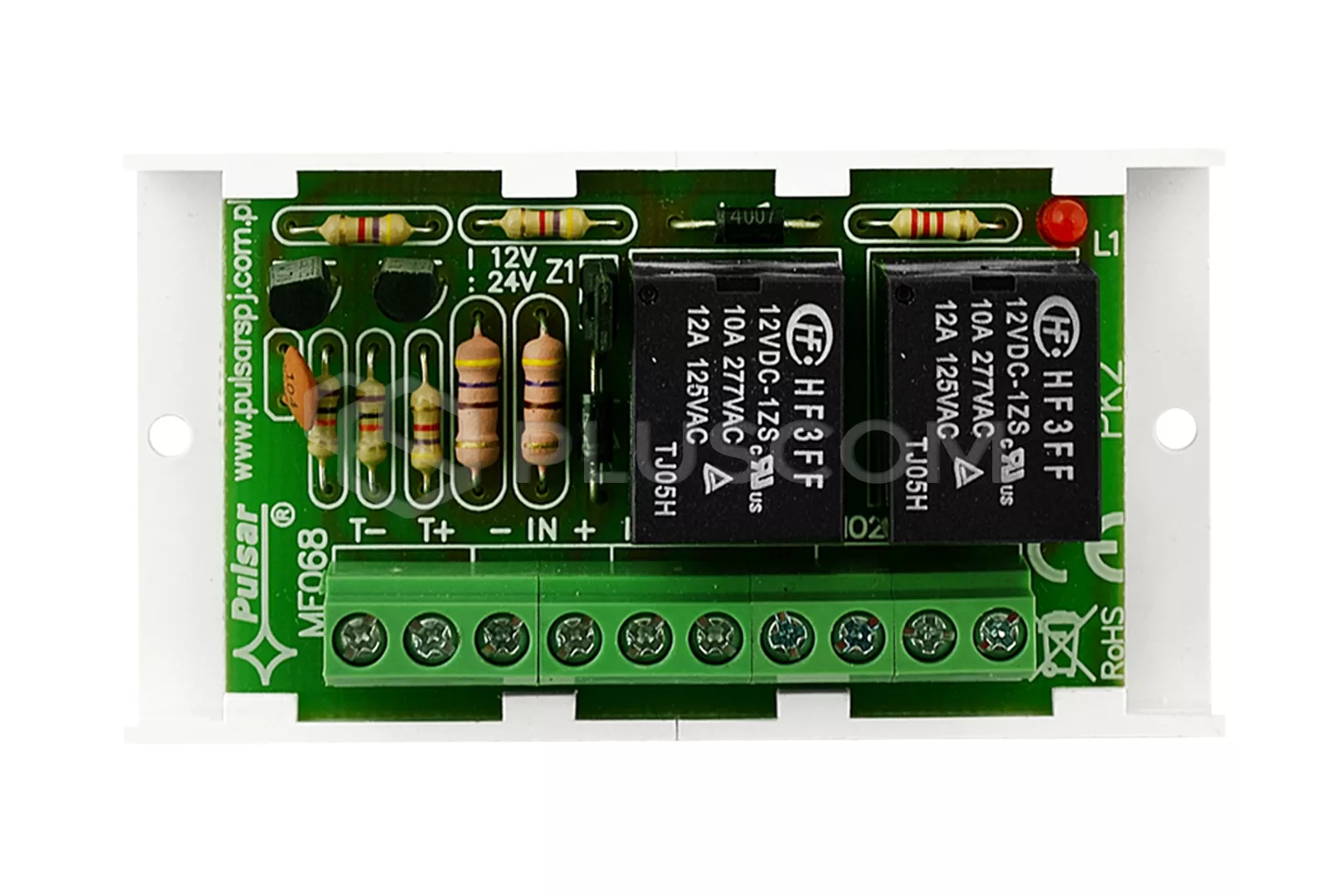

Relay module PK2 Pulsar AWZ508

4,98 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #10636
Manufacturer: Pulsar
  • The number of relays: 1
  • Load of relay contacts: 2A 30V DC
  • Power consumption:75mA
  • Voltage: 12/24V DC
  • The control inputs: T-, T+

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Relay module Pulsar AWZ 610

PK2 Relay module AWZ508

The PK2 (AWZ508) relay module is to be used in low-voltage installations. It is intended for controlling and status indication in e.g. alarm or access control systems. It may be used to control devices of high power consumption via OC outputs of alarm systems. Moreover, it ensures galvanic isolation of signals, power sources relating to the outputs of the module. It is equipped with two separate T+, T- inputs used to trip relays with high or low condition.
Relay module PK2 Pulsar AWZ508

Relay module PK2 Pulsar AWZ508



SPECIFICATIONS

  • Voltage of the relay’s coil:
    • 12V (10VDC÷15VDC)
    • 24V (21VDC÷28VDC)
  • Power consumption: 75 mA max.
  • Number of relays: 2
  • Voltage of the relay’s contacts: 30VDC / 50VAC max.
  • Current of the relay’s contacts: 2A max.
  • Tripping voltage
    • T+ 5V÷Uzas
    • T- 0V÷7V
  • Dimensions: 80x43x22mm
  • Weight: 0,07kg

Relay module PK2 Pulsar AWZ508

Relay module PK2 Pulsar AWZ508



Download
Datasheet 1.53 MB
Declaration CE 0.32 MB
User Manual 0.31 MB
