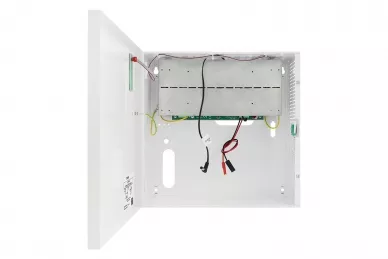

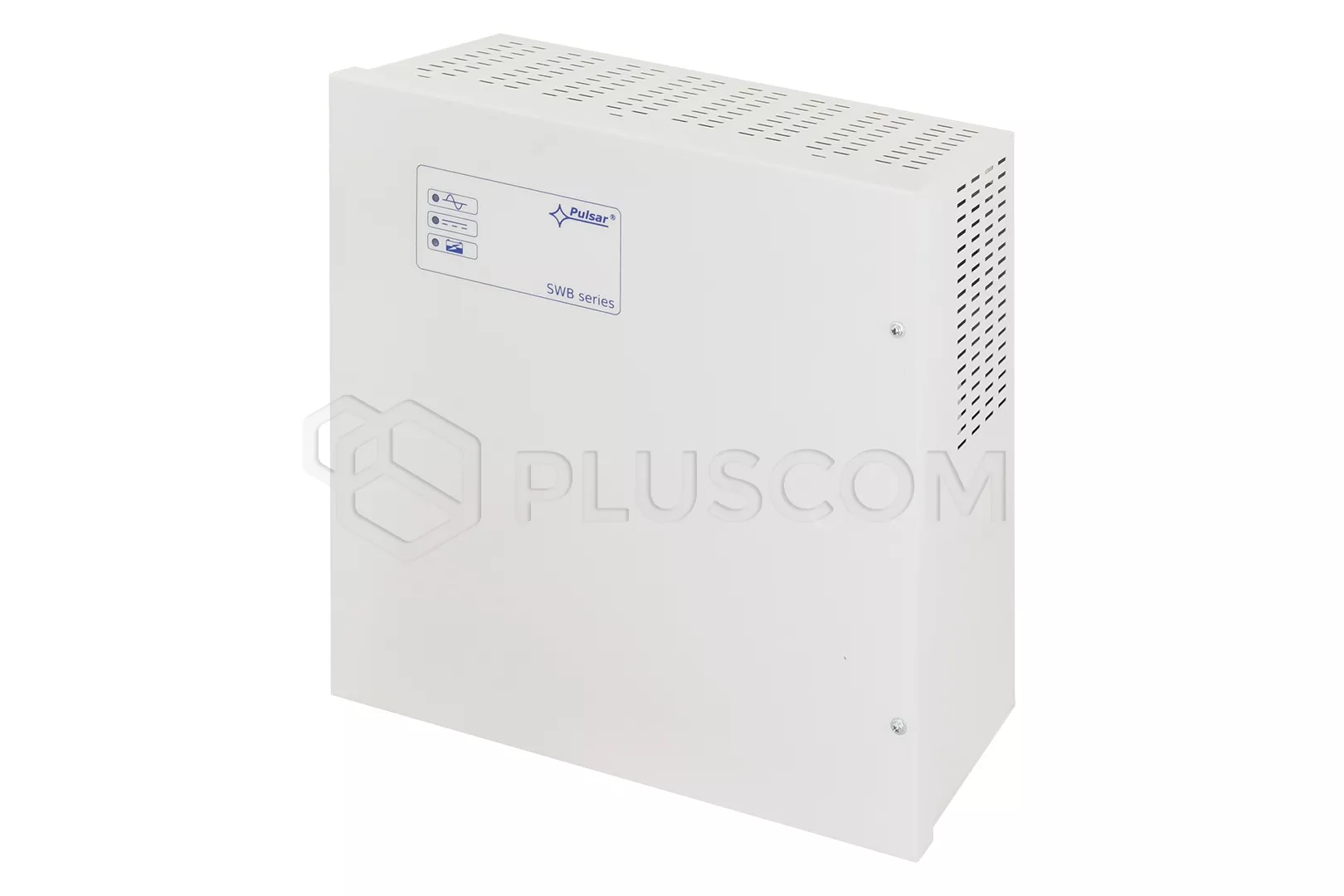

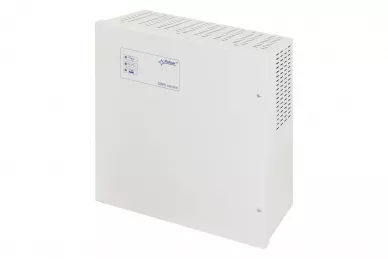

Pulsar SWB-60 Buffer power supply system for PoE switches, 52VDC/7Ah/60W

151,02 EUR including 23.00% VAT
Product code: #24623
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Battery charging current: 0.5A
  • Battery: 1 x 7Ah
  • Efficiency: 83%
  • Dimensions: 300 x 300 x 105 [+/-2 mm]distance from surface: 8 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar SWB-300 Buffer power supply system for PoE switches, 54VDC/4x17Ah/300W Pulsar SWB-120 Buffer power supply system for PoE switches, 52VDC/2x17Ah/120W Pulsar SWB-300RACK Buffer power supply system for PoE switches, RACK-3U, 54VDC/4x17Ah/300W

Pulsar SWB-60 Buffer power supply system for PoE switches, 52VDC/7Ah/60W


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 52 V DC/60 Wpower cable included - JACK 5,5 / 2,1function START allows running PSU from battery power
  • Battery charging current: 0.5A
  • Battery: 1 x 7Ah
  • Efficiency: 83%
  • Dimensions: 300 x 300 x 105 [+/-2 mm]distance from surface: 8 mm
  • Mounting plate: blacha (BM2), 230 x 110 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosurepossibility of mounting tamper switch PKAZ066 detects detachment from the wall
  • Closing: bolted (lock assembly possible)
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL9003 (white), metallic
  • Warranty: 2 years
  • Notes: - 4 screws included
Download
Data sheet 0.64 MB
Instruction 0.63 MB
