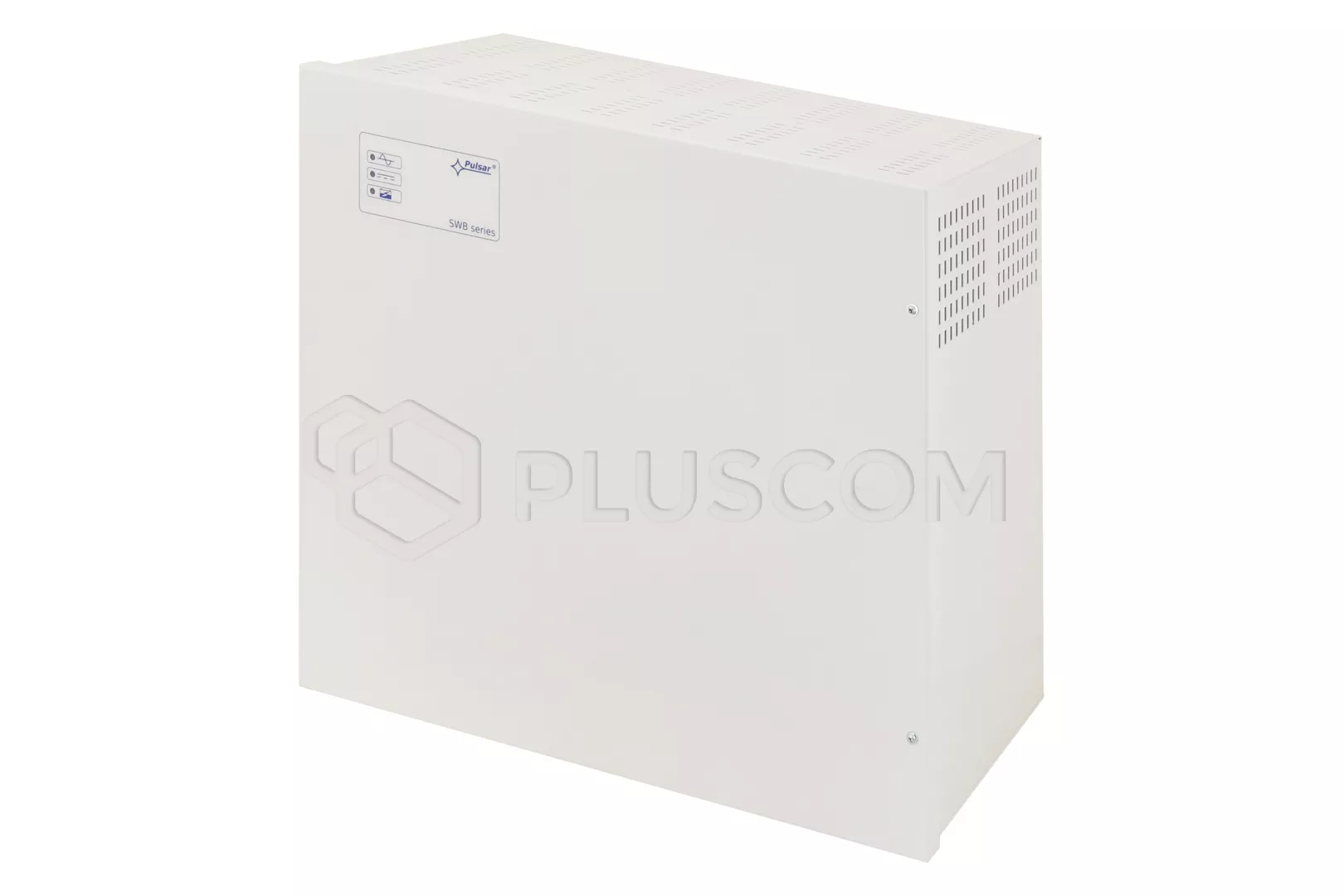

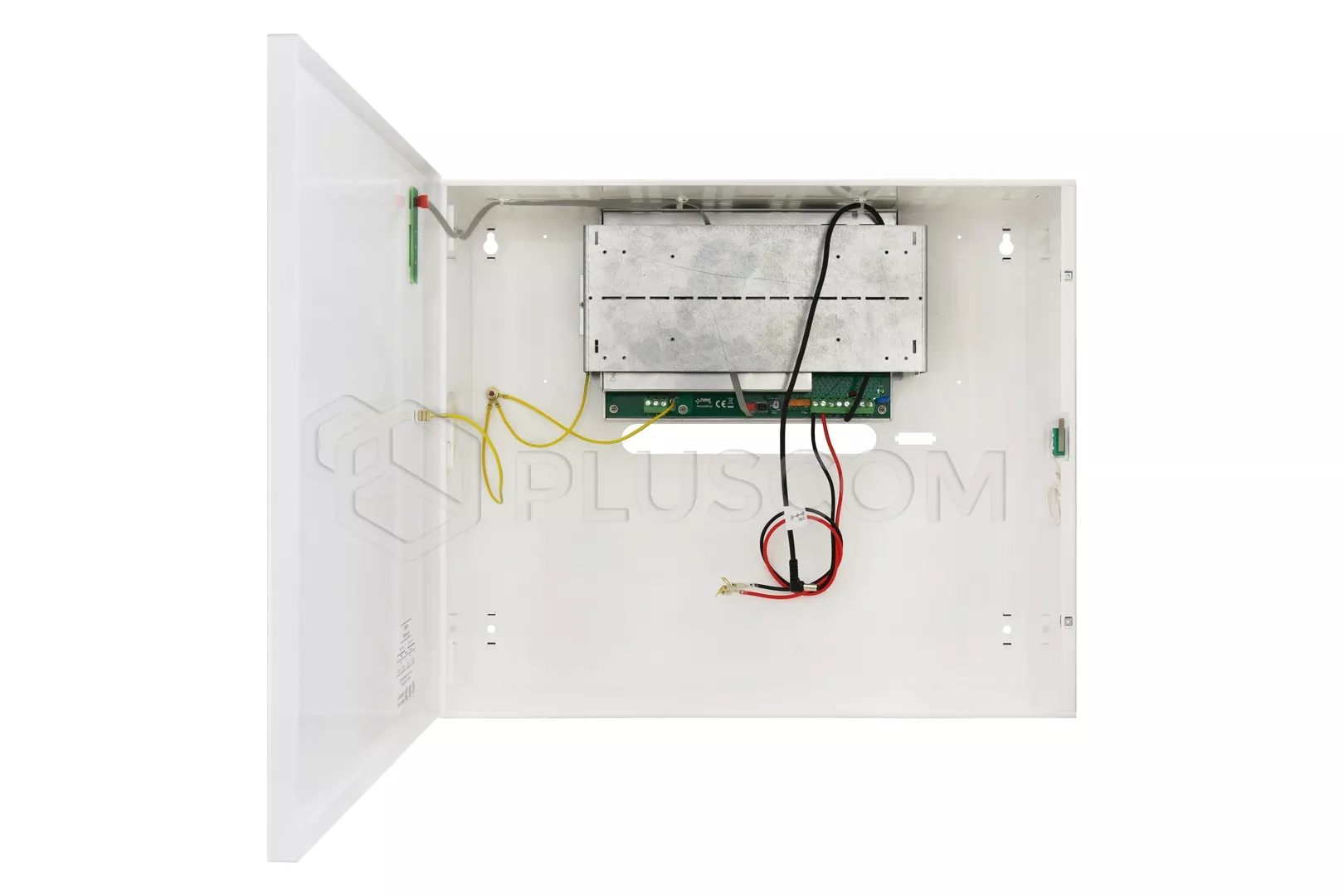

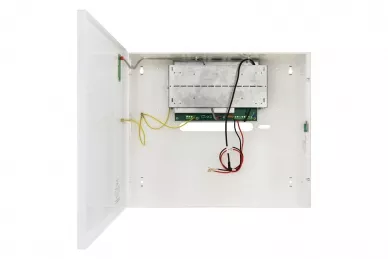

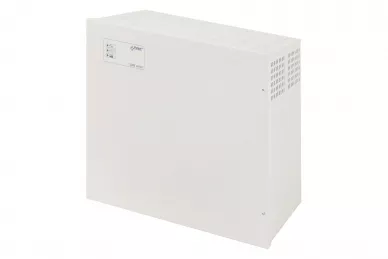

Pulsar SWB-300 Buffer power supply system for PoE switches, 54VDC/4x17Ah/300W

238,20 EUR including 23.00% VAT
Product code: #24621
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Power supply output: 54 V DC/300 Wpower cable included - JACK 5,5 / 2,1
  • Battery charging current: 0.5A/1A/2A
  • Battery: 4 x 17Ah
  • Efficiency: 87%

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar SWB-60 Buffer power supply system for PoE switches, 52VDC/7Ah/60W Pulsar SWB-300RACK Buffer power supply system for PoE switches, RACK-3U, 54VDC/4x17Ah/300W Pulsar SWB-120 Buffer power supply system for PoE switches, 52VDC/2x17Ah/120W

Pulsar SWB-300 Buffer power supply system for PoE switches, 54VDC/4x17Ah/300W


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 54 V DC/300 Wpower cable included - JACK 5,5 / 2,1
  • Battery charging current: 0.5A/1A/2A
  • Battery: 4 x 17Ah
  • Efficiency: 87%
  • Dimensions: 460 x 390 x 173 [+/-2 mm]distance from surface: 14 mm
  • Mounting plate: blacha (BM1), 245 x 150 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP, OHP, tamper – opening of enclosurepossibility of mounting tamper switch PKAZ067 detects detachment from the wall
  • Closing: bolted (lock assembly possible)
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL9003 (white), metallic
  • Warranty: 2 years
  • Notes: - 4 screws included

Download
Data sheet 0.81 MB
Instruction 0.45 MB
