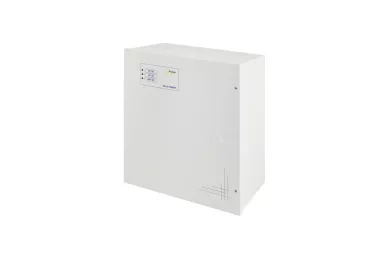

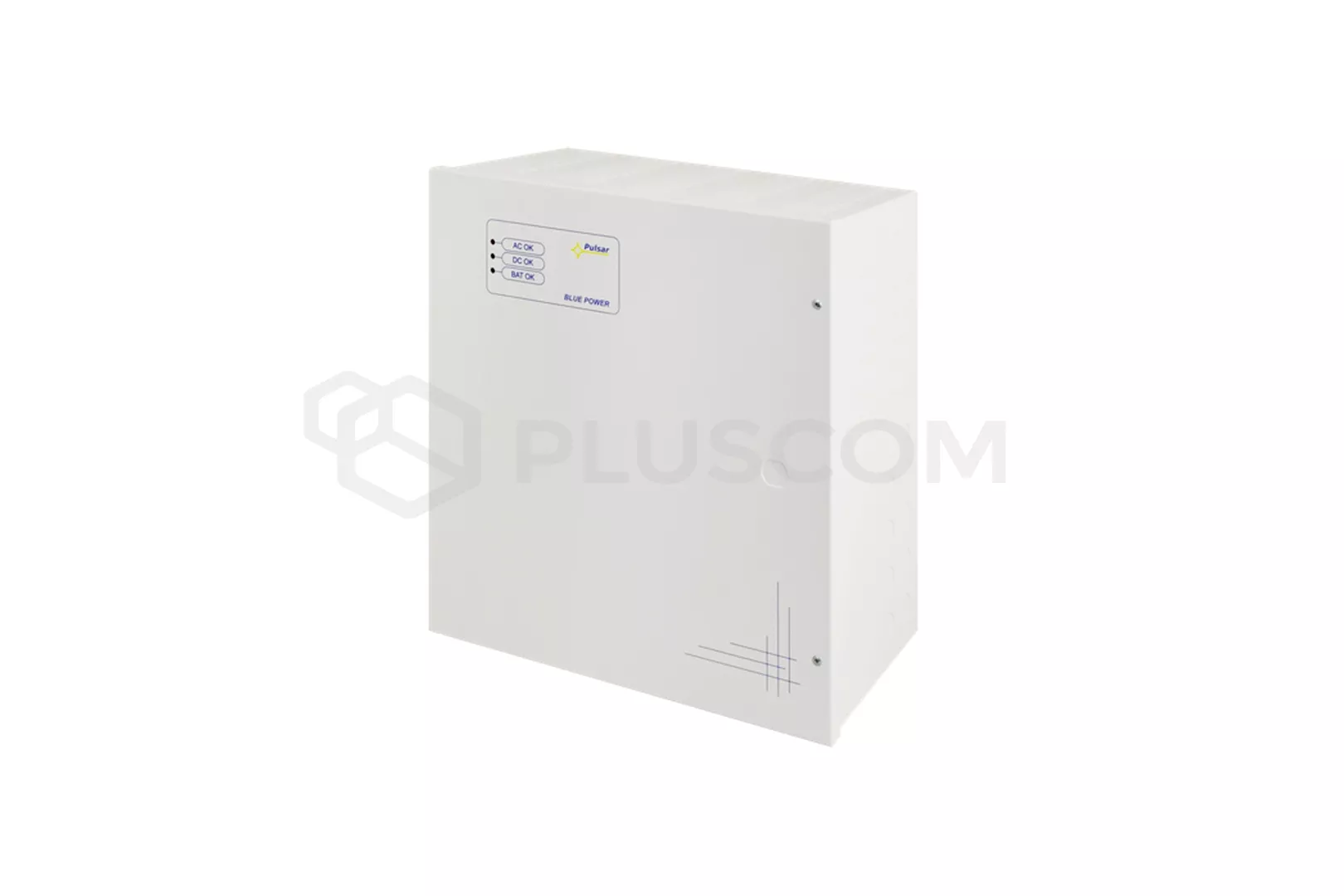

Pulsar PSBS10A12D 13,8V 10A 40Ah backup power supply

169,56 EUR including 22.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #11032
Manufacturer: Pulsar
  • Output voltage: 13.8V DC
  • Output current: 10A max
  • Place on battery: 12V 40Ah
  • Technical outputs EPS, PSU, LoB
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar MPSBS PSBS technical outputs relay module

Pulsar PSBS10A12D 13,8V 10A 40Ah backup power supply with technical outputs

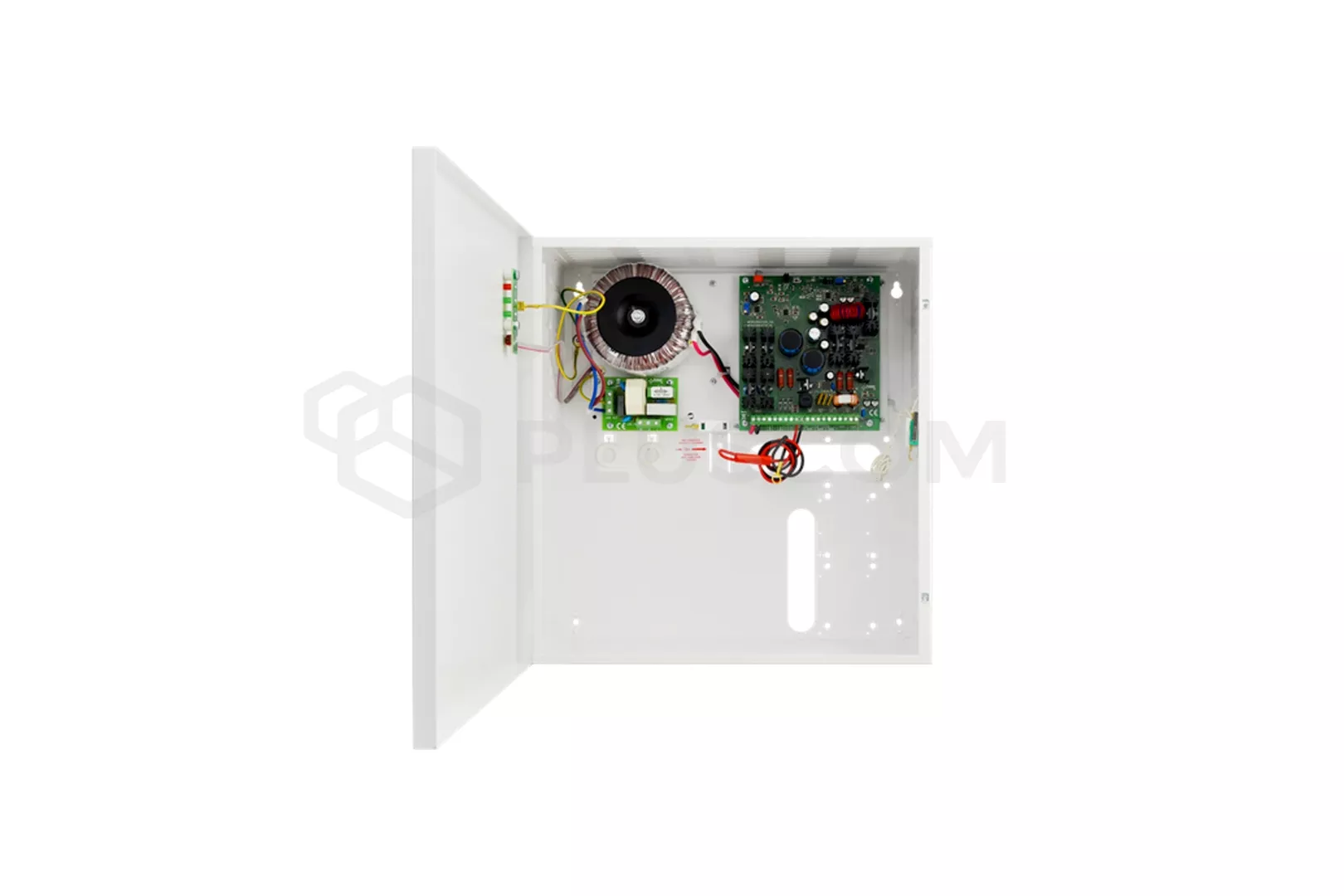

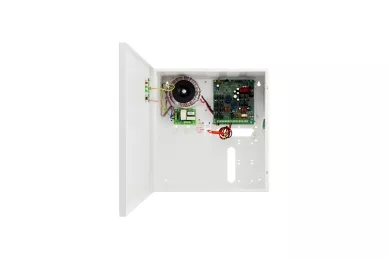

A buffer PSU is designed for uninterrupted supply of devices requiring stabilized voltage of 12V DC (+/-15%). In case of mains power loss, the unit will instantly switch to battery operation. The PSU is enclosed in a metal casing (color RAL 9003) with battery housing for 40Ah/12V batteries. The enclosure is fitted with a micro switch indicating door opening (front cover) and the detachment from the wall.

Pulsar PSBS10A12D

Pulsar PSBS10A12D


PSU features:
  • uninterruptible power supply DC 13,8V/1A
  • battery housing: 40Ah/12V
  • supply voltage AC 230V
  • high efficiency 79%
  • low voltage ripple
  • battery charging and maintenance control
  • deep discharge battery protection (UVP)
  • battery charging current 1A/2A/3A/5A, jumper selectable
  • START button to start the battery
  • battery output protection against short-circuit and reverse connection
  • LED indication
  • EPS technical output of 230V power failure - OC type
  • PSU technical output indicating PSU failure - OC type
  • LoB technical output indicating low battery voltage - OC type
  • Optional installation of the MPSBS relay module changing technical outputs of the OC type to relay type
  • adjustable times of 230V AC failure indication
  • Protection type:
    • SCP short-circuit protection
    • Overheat protection OHP
    • surge protection
    • overload protection OLP
    • overvoltage protection OVP
    • Tamper protection: enclosure opening and detachment from the wall

Download
Data Sheet 0.11 MB
Declaration CE 0.32 MB
