Pulsar MPSBS PSBS technical outputs relay module

16,51 EUR including 23.00% VAT
Product code: #10904
Manufacturer: Pulsar
  • Output voltage: DC 10-30V
  • LED optical signalisation
  • Technical output: EPS, PSU, LoB
  • Protection against reverse connection of power supply

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSBS technical outputs relay module Pulsar MPSBS

The MPSBS relay module of technical outputs is designed to change the OC (open collector) outputs to relay outputs in buffer power supplies of the PSBS 13,8V and PSBS 27,6V series. The LEDs on the PCB indicate the status of the individual relays. Power supply input of the module is protected against reverse connection of power supply.

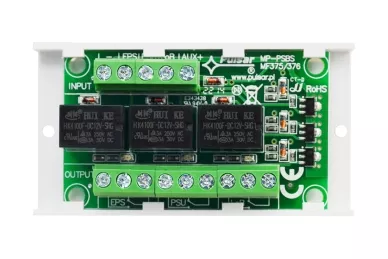

Pulsar MPSBS

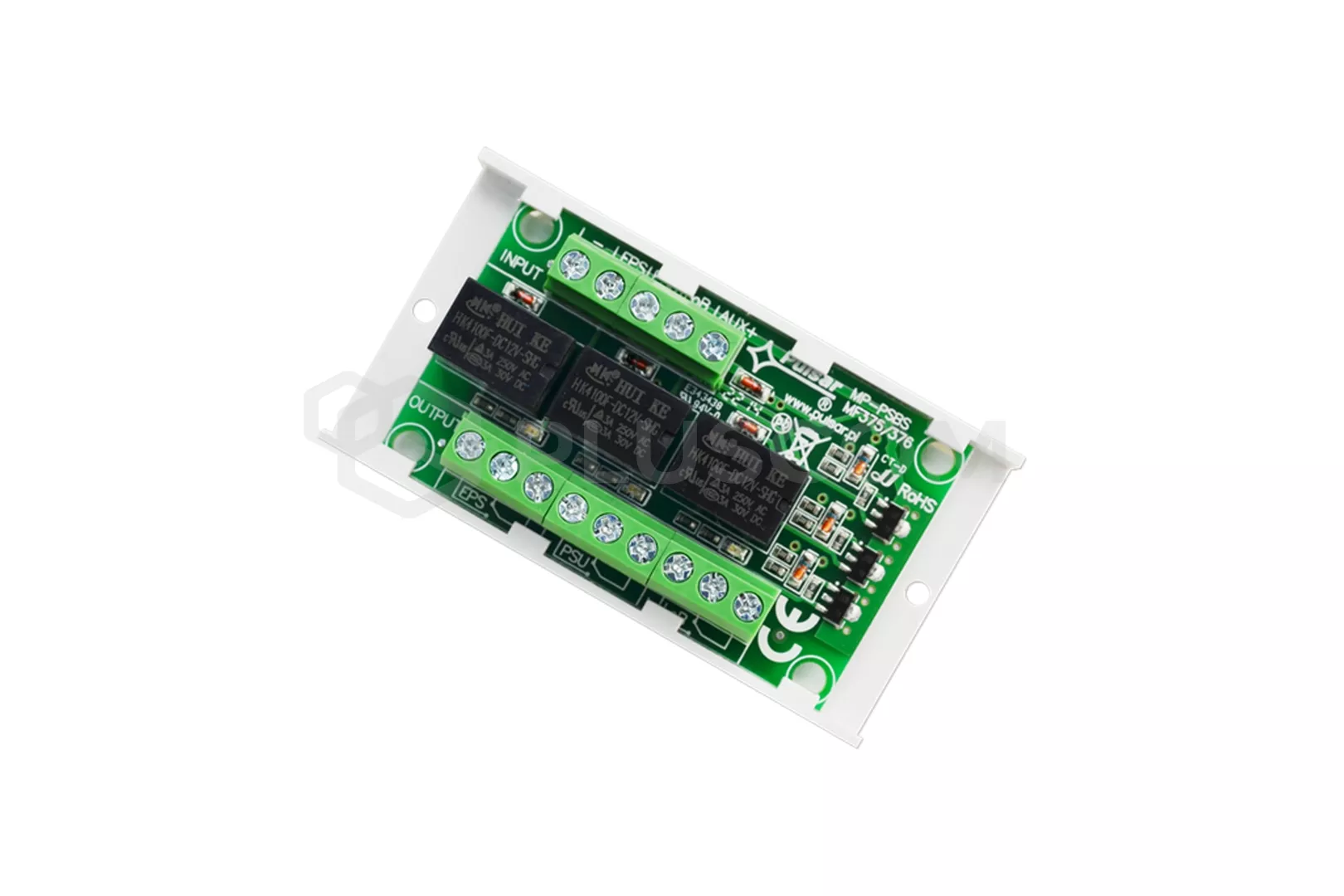

Pulsar MPSBS

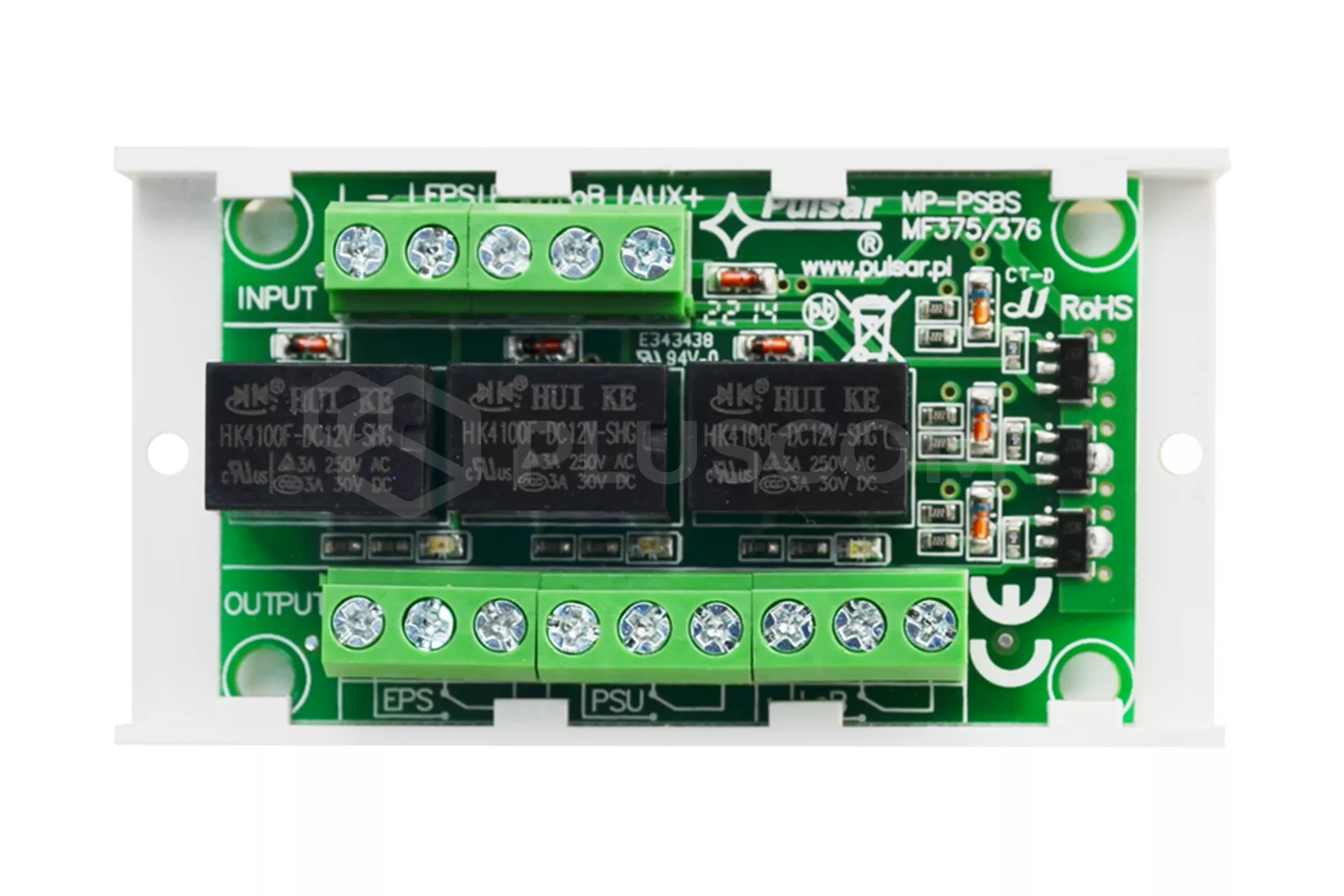

Pulsar MPSBS

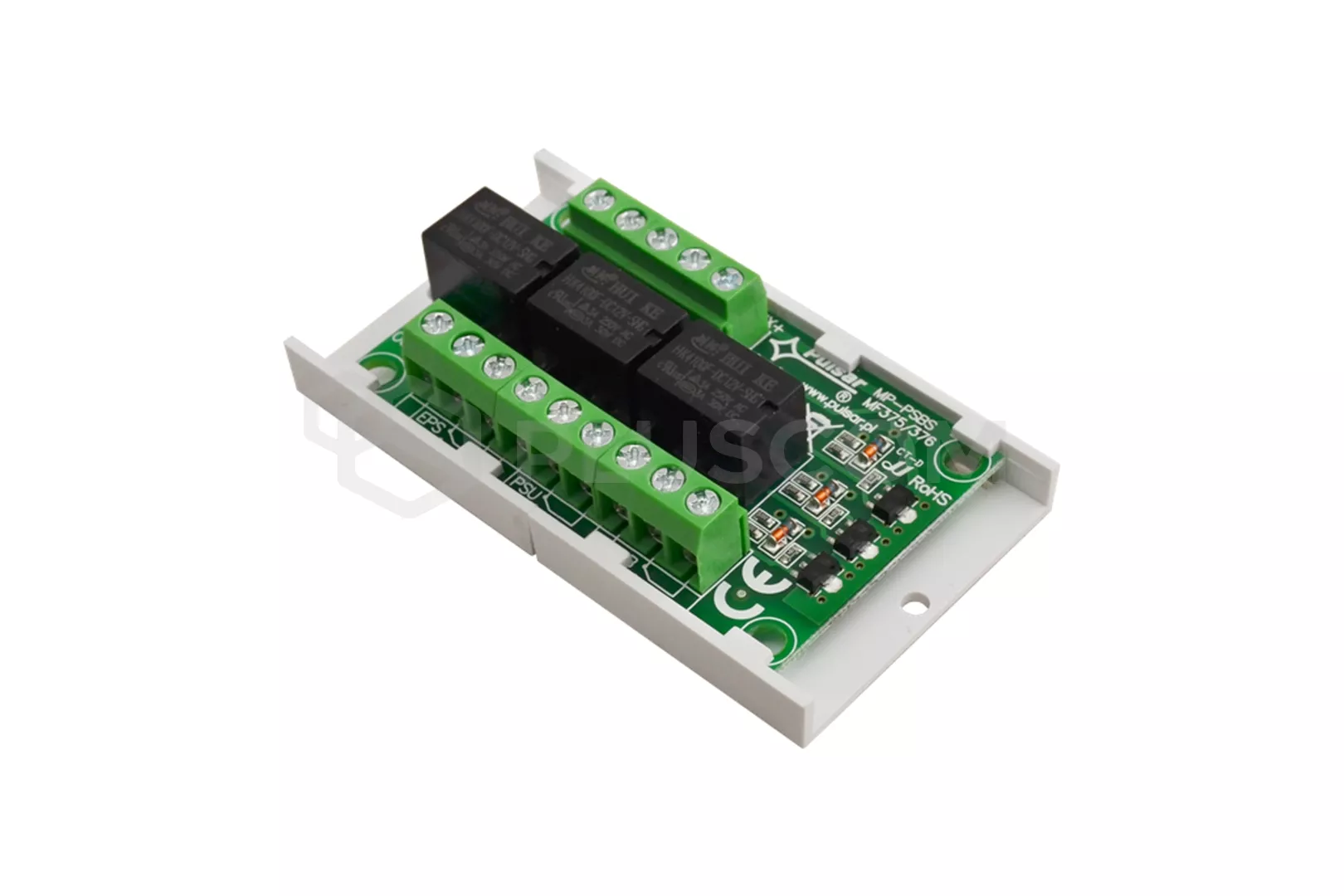

Pulsar MPSBS

FEATURES:

  • Supply voltage: 10-30V DC
  • Current consumption: 40-65mA
  • Technical outputs: 3 x 1A@ 30V DC/50V AC
  • Working temperature range: -10°C...40°C
  • Technical outputs: PSU, LoB, EPS
  • Mounting: mounting strip with adhesive tape
  • Dimensions: 66,5x39,5x18 [mm] (+/-2)
  • Weight: 0,06kg

Download
Data Sheet 0.09 MB
Instruction 0.35 MB
Declaration CE 0.32 MB
