Pulsar P-TRPV1 Set of passive video HD transmitters and power supply

10,27 EUR including 23.00% VAT
Product code: #14198
Manufacturer: Pulsar
  • Range: 450m/350m/250m
  • Video signal: 1,0Vp-p, 75Ω
  • Power supply/connector type: socket/plug JACK 2,1/5,5
  • Operation voltage: 12÷15VDC

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar P-TR1HD3 Set of passive video HD transmitters with BNC plug Pulsar P-TR1HD P-TR1HD Set of passive video HD transmitters

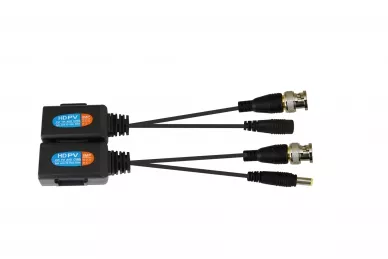

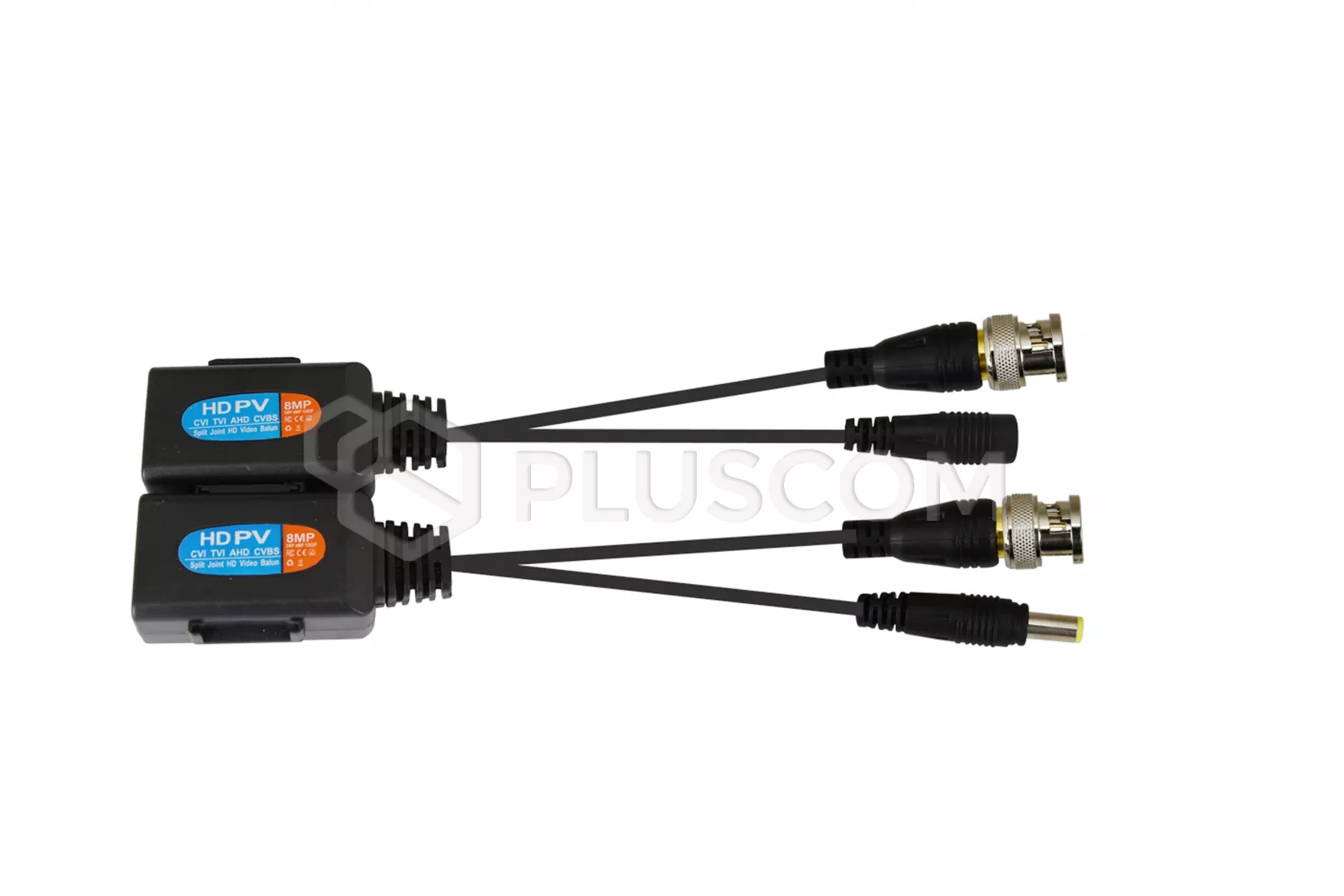

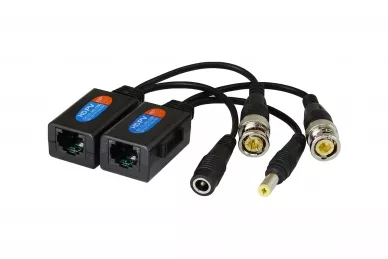

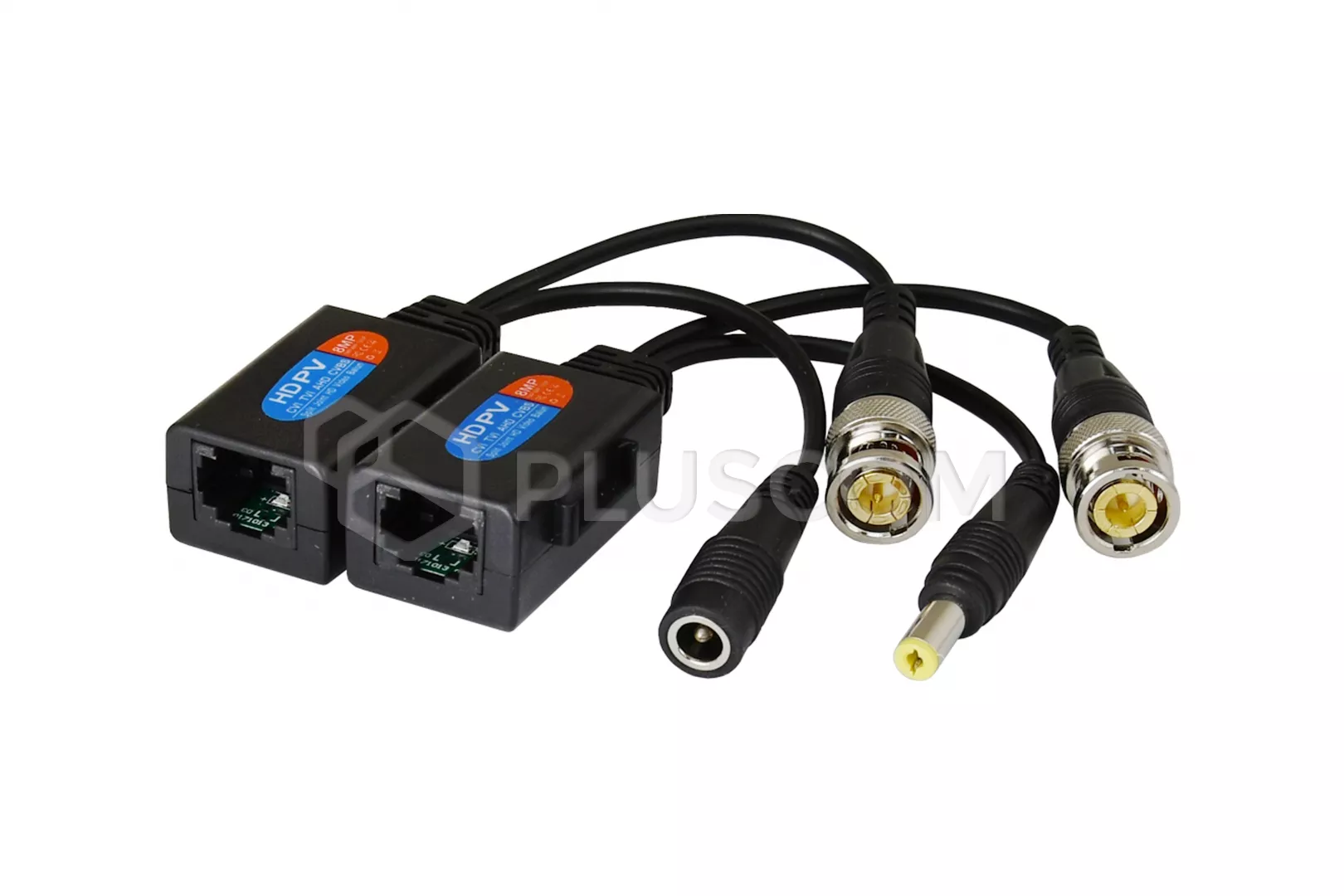

Pulsar P-TRPV1 Set of passive video HD transmitters and power supply

Pulsar P-TRPV1 is a ready set of passive transmitters designed to transmit HD video signal and power thanks to one twisted pair cable. The device provides video signal transmission for distances up to 450m and one pair of twisted pair is used. Power is transmitted using two pairs of twisted pair. In order to obtain the best transmission quality and resistance to interference, UTP cat. 5 (or higher) should be used.
P-TRPV1 modules are terminated with two types of connectors:
  • BNC connector (HD-CVI / HD-TVI / AHD video transmission)
  • JACK 2.1 / 5.5 power socket / plug (camera power supply)
LED optical signaling.

TECHNICAL DATA:
  • operation voltage: 12÷15VDC
  • current (max.): 1A/12VDC
  • video signal: 1,0Vp-p, 75Ω
  • video transmission range (UTP5e or higher):
    • 450m – HD-CVI (720p)
    • 350m – AHD (720p/960
    • 250m - HD-CVI(1080p), HD-TVI (720p/1080p), AHD (1080p)
  • impedance of the coaxial connector / connector type: 75Ω / BNC plug (on the cable 100mm)
  • impedance of the unbalanced connector / connector type: 100Ω / RJ45 socket
  • attenuation: - 0,5dB / 5MHz
  • connector type: socket/plug JACK 2,1/5,5
  • dimensions: 22x10x40mm
  • the length of the wire: 180mm
  • weight: 0.075kg
  • operation temperature: -10°C ÷ 55°C
