Pulsar P-TR1HD3 Set of passive video HD transmitters with BNC plug

6,54 EUR including 23.00% VAT
Product code: #11483
Manufacturer: Pulsar
  • Range: 450m/350m/250m
  • Video signal: 1,0Vp-p, 75Ω
  • Connector type: BNC plug/ screw terminals
  • cable - 155mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar P-TRPV1 Set of passive video HD transmitters and power supply Pulsar P-TR1HD P-TR1HD Set of passive video HD transmitters

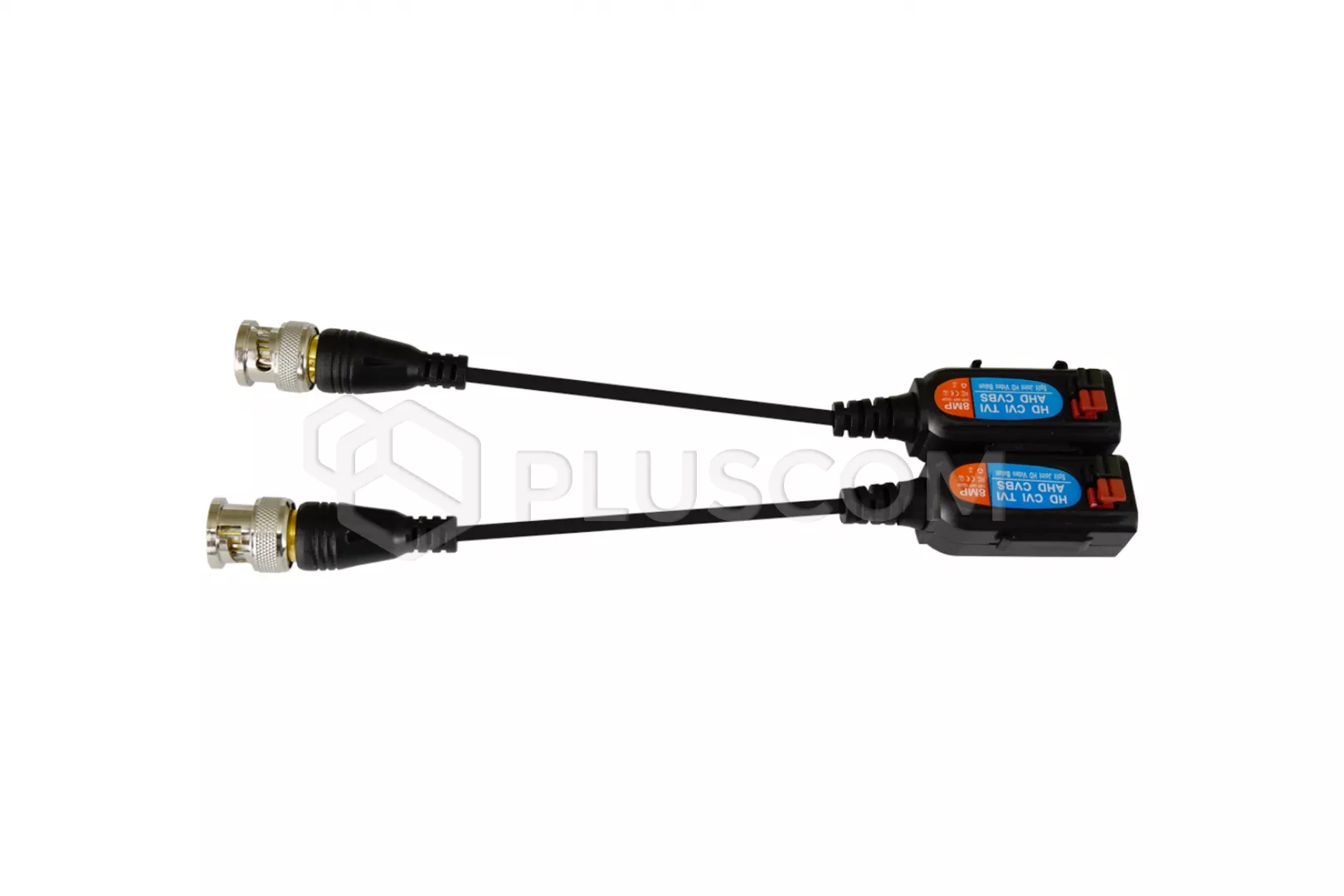

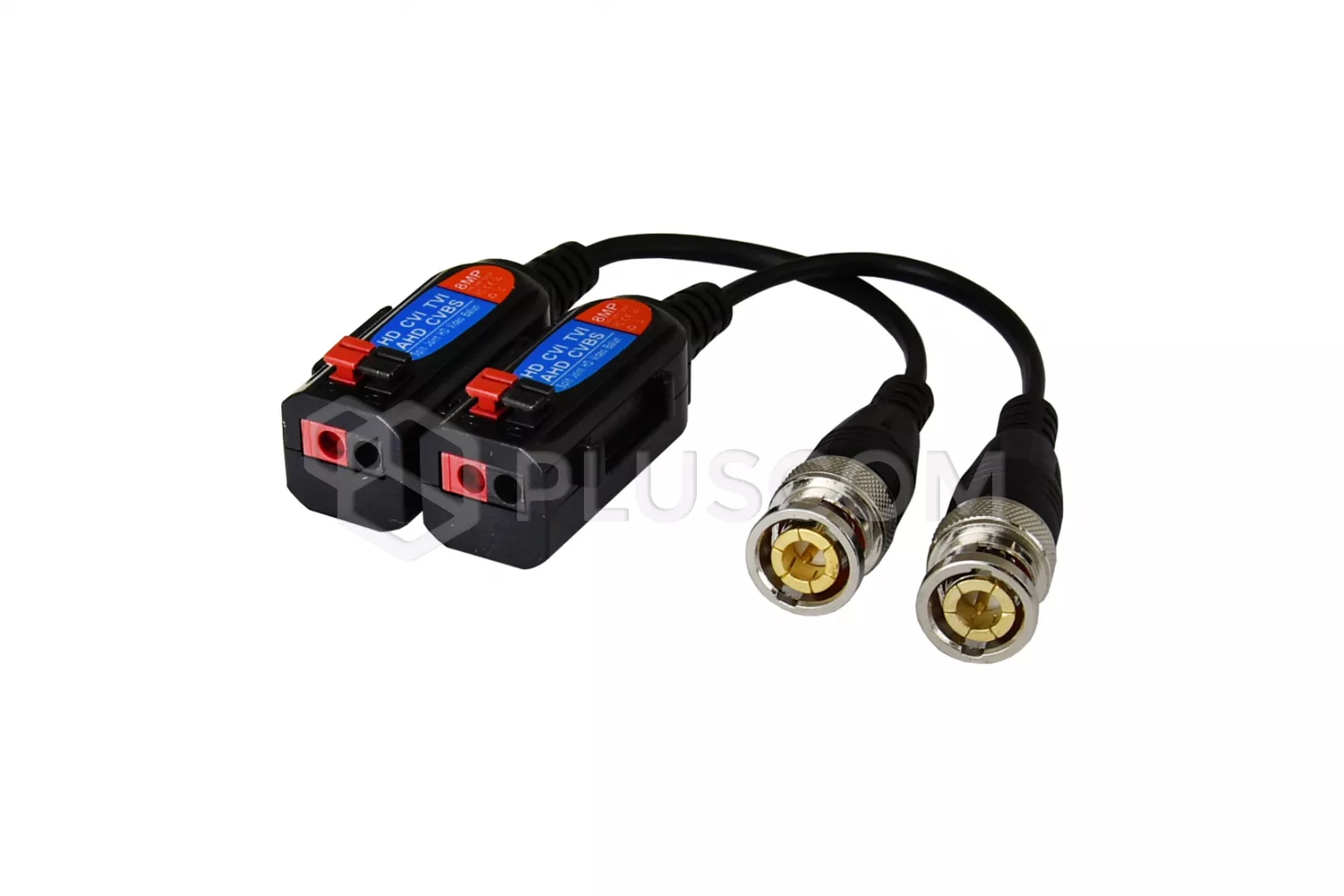

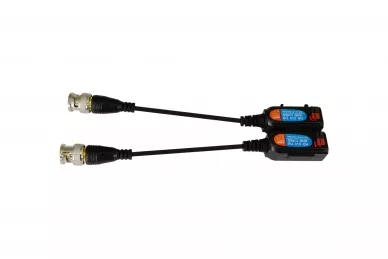

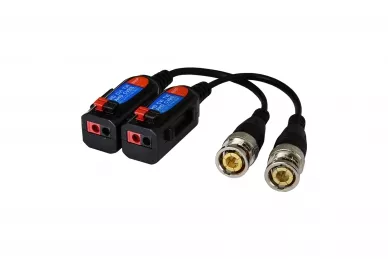

Pulsar P-TR1HD3 Set of passive video HD transmitters with BNC plug on the cable (self clinching terminal)

Pulsar P-TR1HD3 is a ready set of passive transmitters designed to transmit HD video signal thanks to one twisted pair cable. The device provides video signal transmission for distances up to 450m and one pair of twisted pair is used. In order to obtain the best transmission quality and resistance to interference, UTP cat. 5 (or higher) should be used.

The P-TR1HD3 is ended with BNC plug on the cable. Such design allows easy connection of these elements to devices, where the sockets are arranged close to each other. In addition, all transmitters can be combined with each other (Click system) into larger groups, which improves the aesthetics of the installation.

TECHNICAL DATA:
  • video signal: 1,0Vp-p, 75Ω
  • video transmission range (UTP5e or higher):
    • 450m – HD-CVI i CVBS
    • 350m – AHD
    • 250m - HD-TVI
  • impedance of the coaxial connector / connector type: 75Ω / BNC plug
  • impedance of the unbalanced connector / connector type: 100Ω / self clinching
  • attenuation: - 0,5dB / 5MHz
  • dimensions: 15x15x47mm
  • the length of the wire: 155mm
  • weight: 0.06kg
  • operation temperature: -20°C ÷ 55°C
