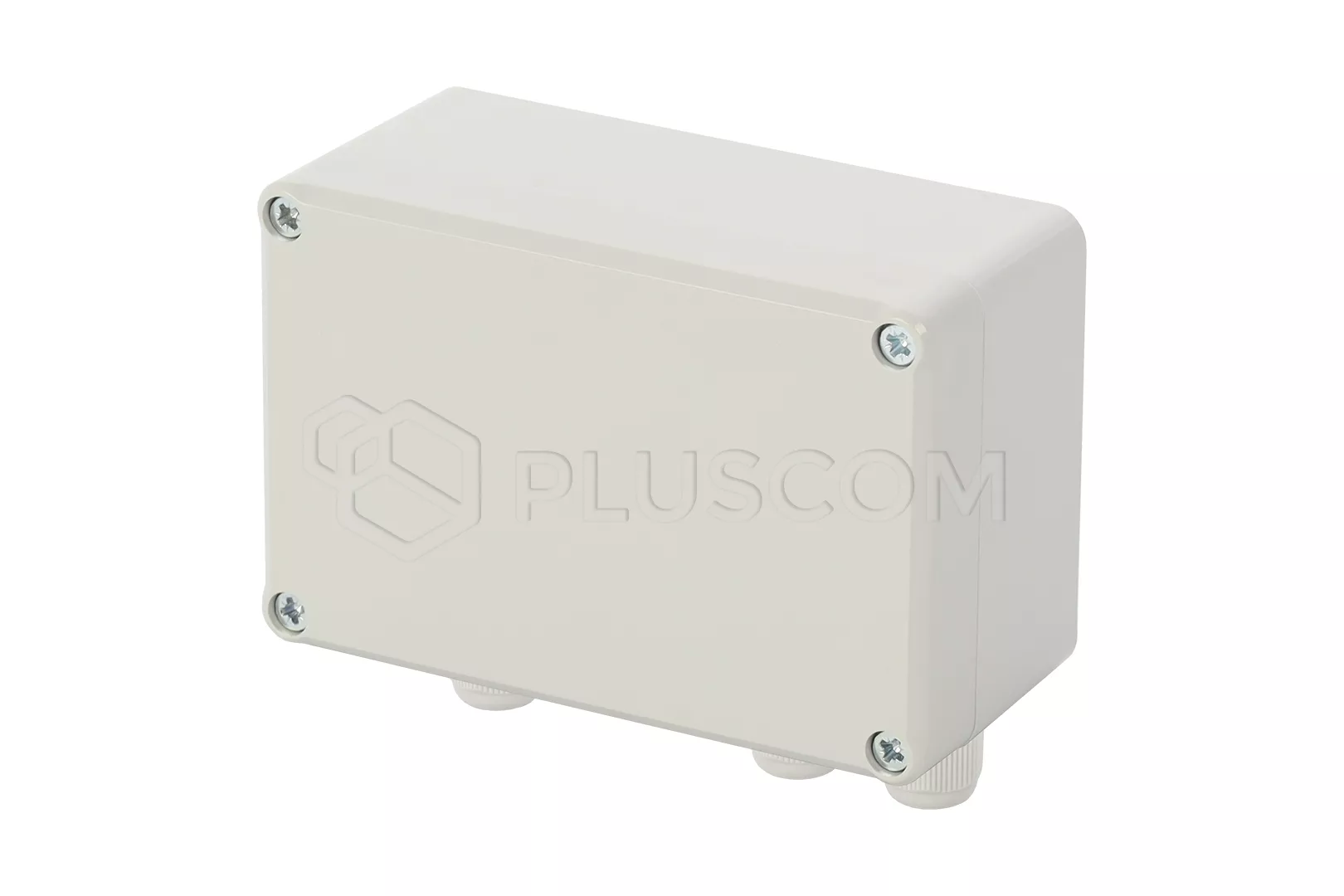

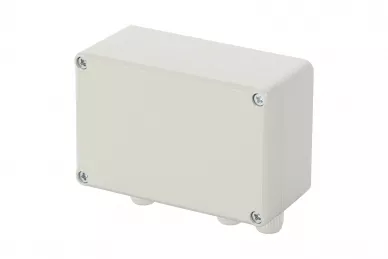

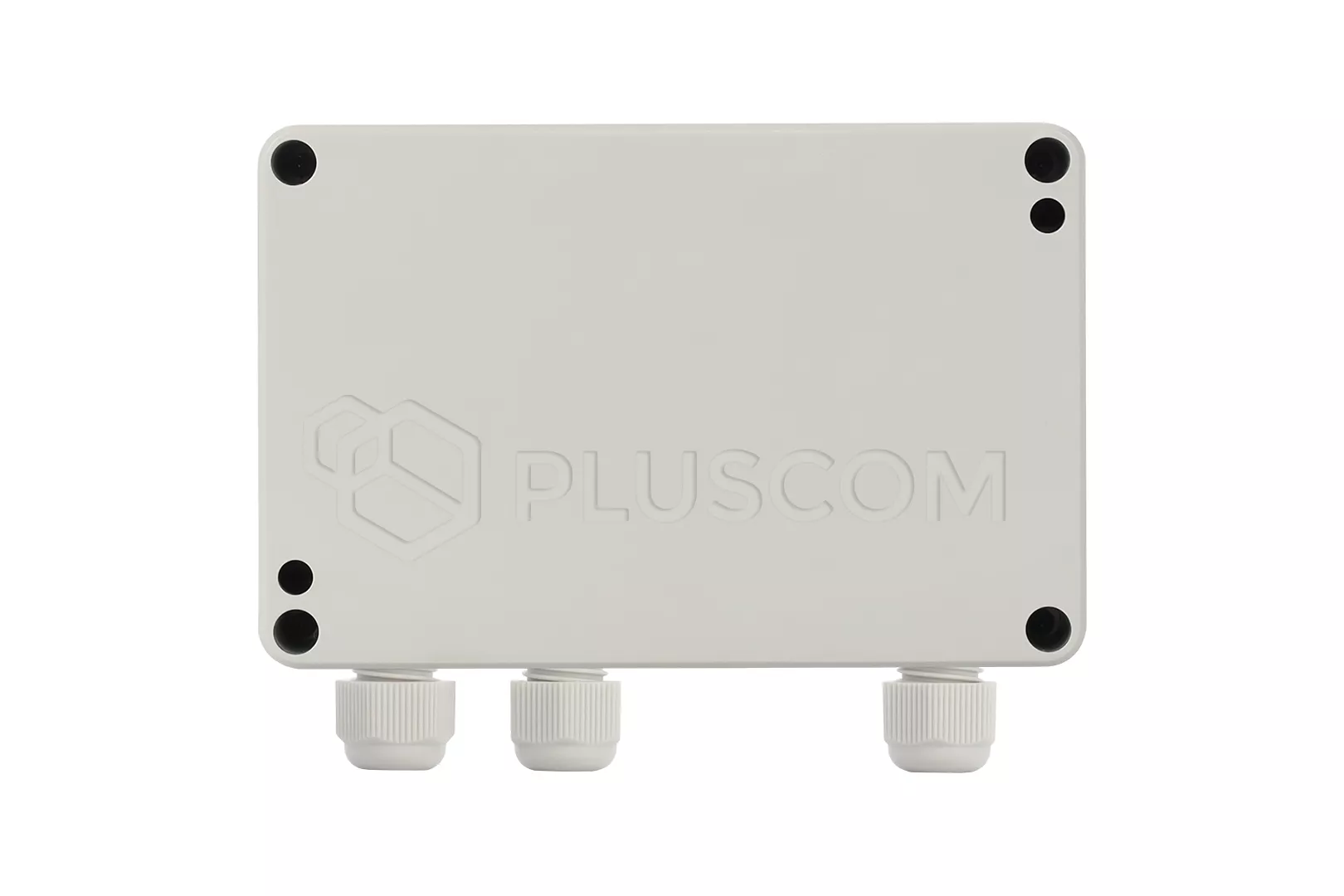

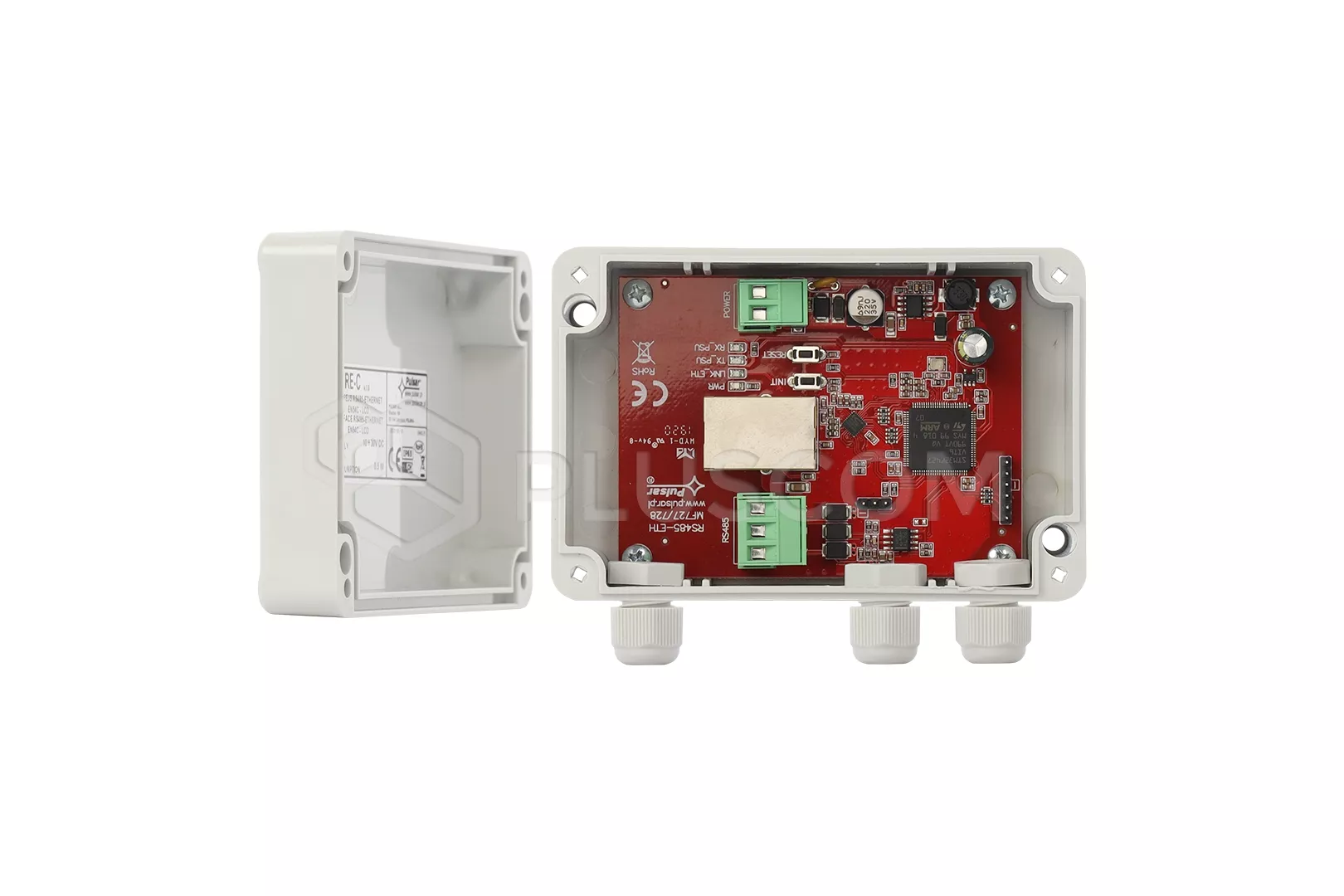

Pulsar INTRE-C Interfaces RS485-ETHERNET

173,43 EUR including 23.00% VAT
Product code: #22643
Manufacturer: Pulsar
  • Power supply: 10 - 30 V DCexternal power supply required
  • Dimensions: 121 x 60 x 81 [+/-2 mm]
  • Glands: 3 x Φ=3÷6.5mm
  • LAN transmission’s speed: 10/100 Mb/s
  • TTL transmission’s speed: max. 115200 bauds
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar INTR-C Interface RS485-TTL Pulsar INTE-C Interface ETHERNET

Pulsar INTRE-C Interfaces RS485-ETHERNET


Technical parameters:

  • Destination: The RS485-ETHERNET interface is intended for cooperation with PSUs of the EN54C-LCD and HPSG3-LCD series. The PowerSecurity software enables remote monitoring of parameters through a cyclical preview of the current status of the power supply, reading the event log and diagrams of currents and voltages and performing remote battery test. Interface is a device used to convert signals between RS485 bus and Ethernetnetwork.
  • Power supply: 10 - 30 V DCexternal power supply required
  • Compliant with standards: Permission of Scientific and Research Centre for Fire Protection - National Research Institute for use with power supplies of EN54C-LCD series in fire alarm systems
  • Dimensions: 121 x 60 x 81 [+/-2 mm]
  • Glands: 3 x Φ=3÷6.5mm
  • LAN transmission’s speed: 10/100 Mb/s
  • TTL transmission’s speed: max. 115200 bauds
  • PC connection: RJ-45
  • Connection with power supply: RS485(appropriate modules required - INTR-C)
  • IP protection class: IP 65
  • Warranty: 3 years
  • Notes: - cooperation with the PowerSecurity web application - built-in web server for configuration - galvanic isolation between Ethernet interface and RS485 - automatic email notifications of PSU malfunctions
Download
Data sheet 0.35 MB
Instruction 2.18 MB
