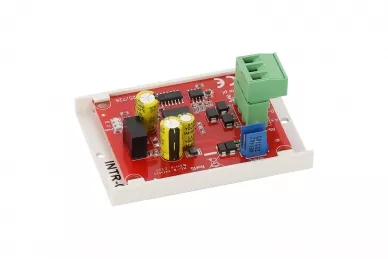

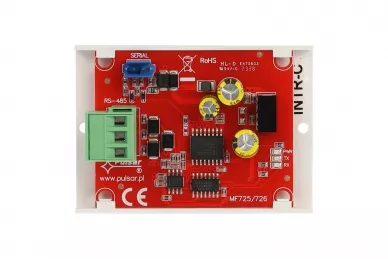

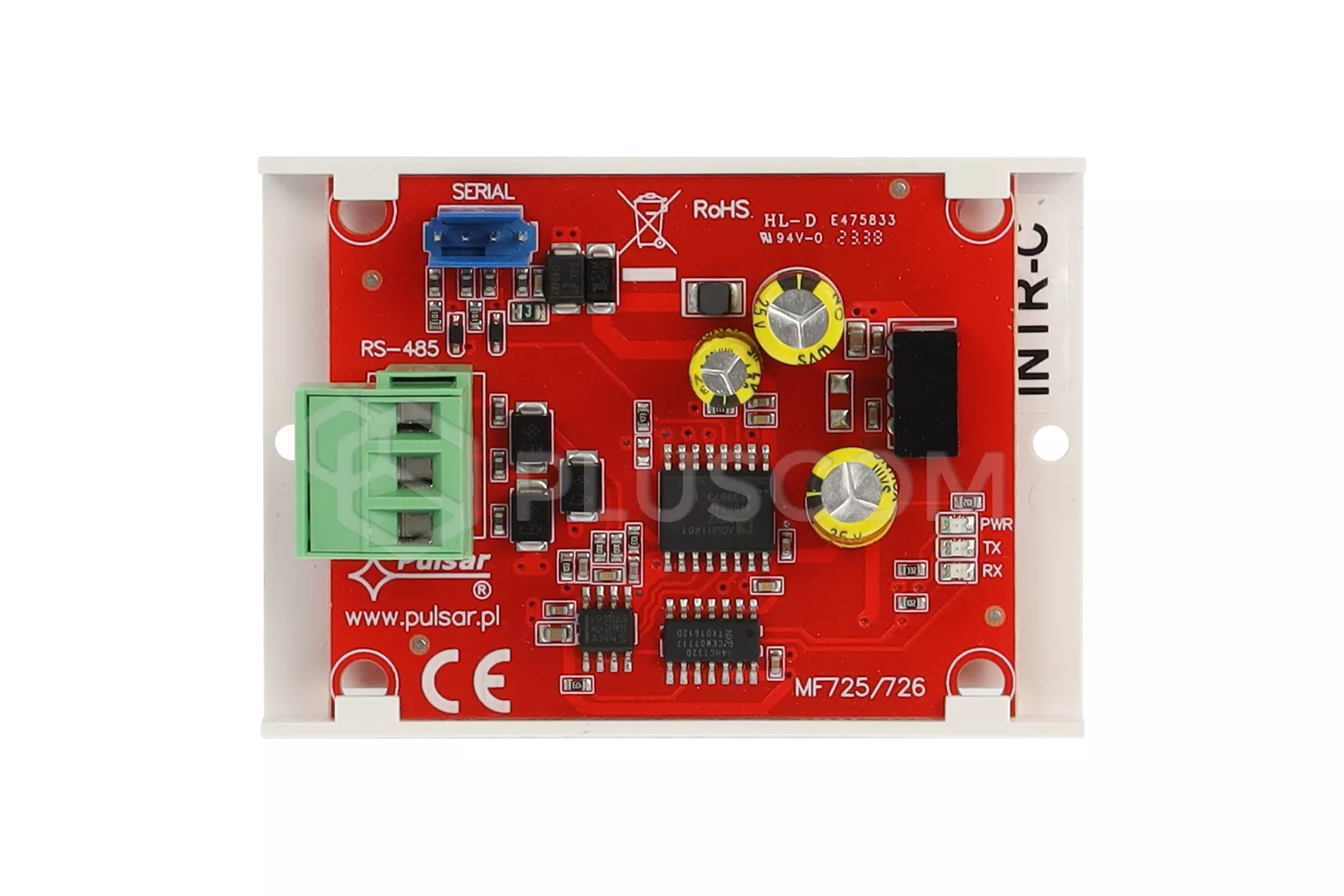

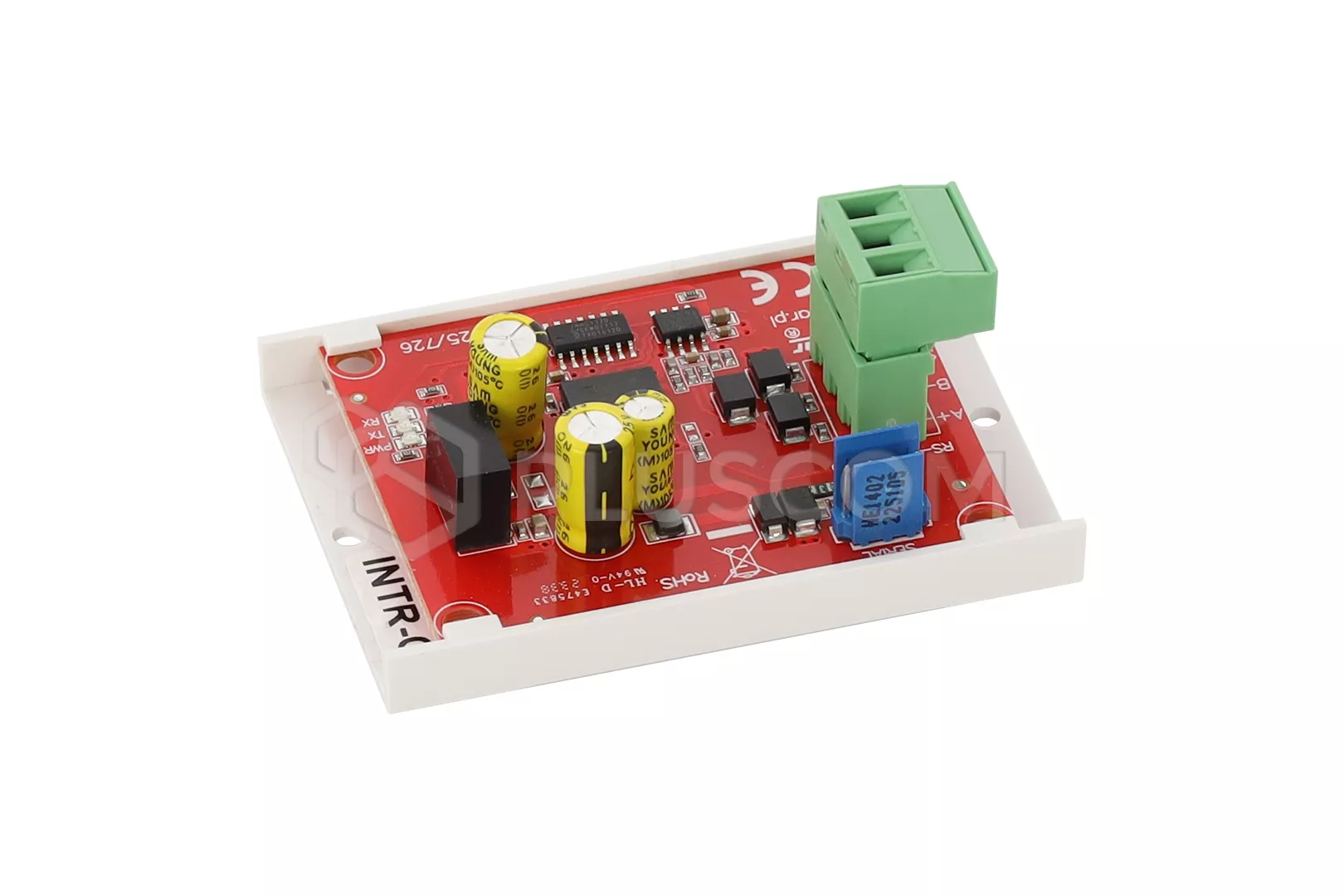

Pulsar INTR-C Interface RS485-TTL

123,31 EUR including 23.00% VAT
Product code: #22642
Manufacturer: Pulsar
  • Power supply: 3.3 V DCpower through SERIAL outlet
  • Dimensions: 63 x 20 x 50 [+/-2 mm]
  • TTL transmission’s speed: max. 115200 bauds
  • Connection with power supply: SERIAL
  • Indication: LED optical indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar INTRE-C Interfaces RS485-ETHERNET Pulsar INTE-C Interface ETHERNET

Pulsar INTR-C Interface RS485-TTL


Technical parameters:

  • Destination: The RS485-TTL „INTR-C” interface is intended for cooperation with PSUs of the EN54C-LCD and HPSG3-LCD series. Interface enables connecting of PSU to RS485 bus remaining galvanic isolation. Communication in RS485 bus is due to a two-way channel, differential in a half-duplex system where transmitting and receiving data is alternate.
  • Power supply: 3.3 V DCpower through SERIAL outlet
  • Compliant with standards: Permission of Scientific and Research Centre for Fire Protection - National Research Institute for use with power supplies of EN54C-LCD series in fire alarm systems
  • Dimensions: 63 x 20 x 50 [+/-2 mm]
  • TTL transmission’s speed: max. 115200 bauds
  • Connection with power supply: SERIAL
  • Indication: LED optical indication
  • Warranty: 3 years
  • Notes: - cooperation with the PowerSecurity web application - galvanic isolation between RS485 interface and TTL
Download
Data sheet 0.37 MB
Instruction 0.69 MB
