Pulsar Interface RS485-ETHERNET

155,04 EUR including 22.00% VAT
Product code: #10838
Manufacturer: Pulsar
  • Connection to the ETHERNET network via the RJ45 connector
  • Compliance with the IEEE 802.3 standard
  • 10/100Mbps transmission speed
  • full-duplex or half-duplex operation (auto-negotiation)
  • Power supply 10 ÷ 30V DC
  • Hermetic enclosure IP65

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar Interfejs RS485-ETHERNET for converting signals between the RS485 bus and the Ethernet network

The RS485-ETHERNET network interface is a device used to convert signals between the RS485
bus and the Ethernet network and is designed to operate with power supplies of the PSBEN or EN54 series in the LAN/WAN network. For proper operation, the unit requires an external power supply in the range of 10÷30V DC e.g. drawn from a PSU of the PSBEN or EN54 series. The physical connection of the interface takes place under galvanic isolation. The unit is mounted in a hermetic enclosure protecting against adverse environmental conditions.

The most important features of the device are:
  • connection to the ETHERNET network via the RJ45 connector
  • Permission of the Scientific and Research Centre for Fire Protection - National Research
  • Institute for use with power supplies of the EN54 series in fire alarm systems
    compliance with the IEEE 802.3 standard
  • 10/100Mbps transmission speed
  • full-duplex or half-duplex operation (auto-negotiation)
  • assigning a static or dynamic IP address (DHCP server
  • galvanic isolation between the Ethernet interface and the RS485 bus
  • configured with the free PowerConfig program
  • 10 ÷ 30V DC power supply
  • cooperation with the freeware PowerSecurity
  • optical indication
TECHNICAL PARAMETERS:
  • Power supply: 10-30V DC
  • Current consumption max.0,95mA
  • TTL transmission’s speed max 115200 bauds, parity checking
  • LAN transmission’s speed 10/100Mbps (auto-sensing)
  • Optical LED signaling
  • domensions: 121x81x60mm
  • weight: 0.26kg
  • working temperature: -10ºC...+40ºC
Pulsar Interface RS485-ETHERNET

Pulsar Interface RS485-ETHERNET

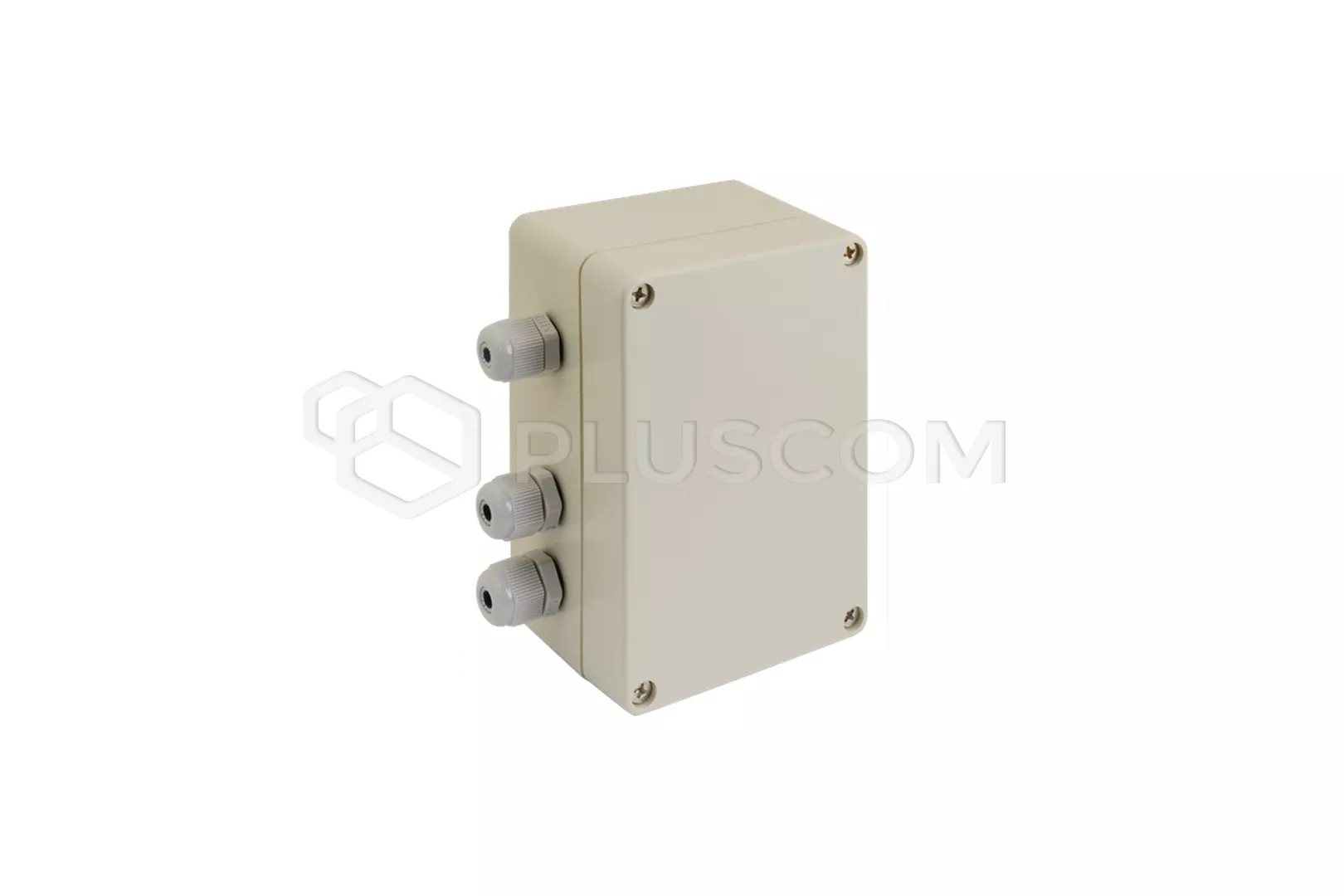

Hermetic enclosure IP65:

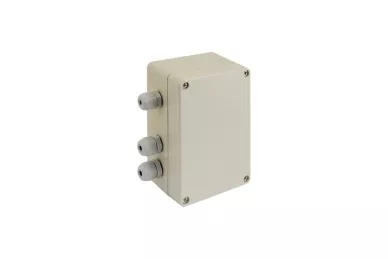

Hermetic enclosure IP65:
