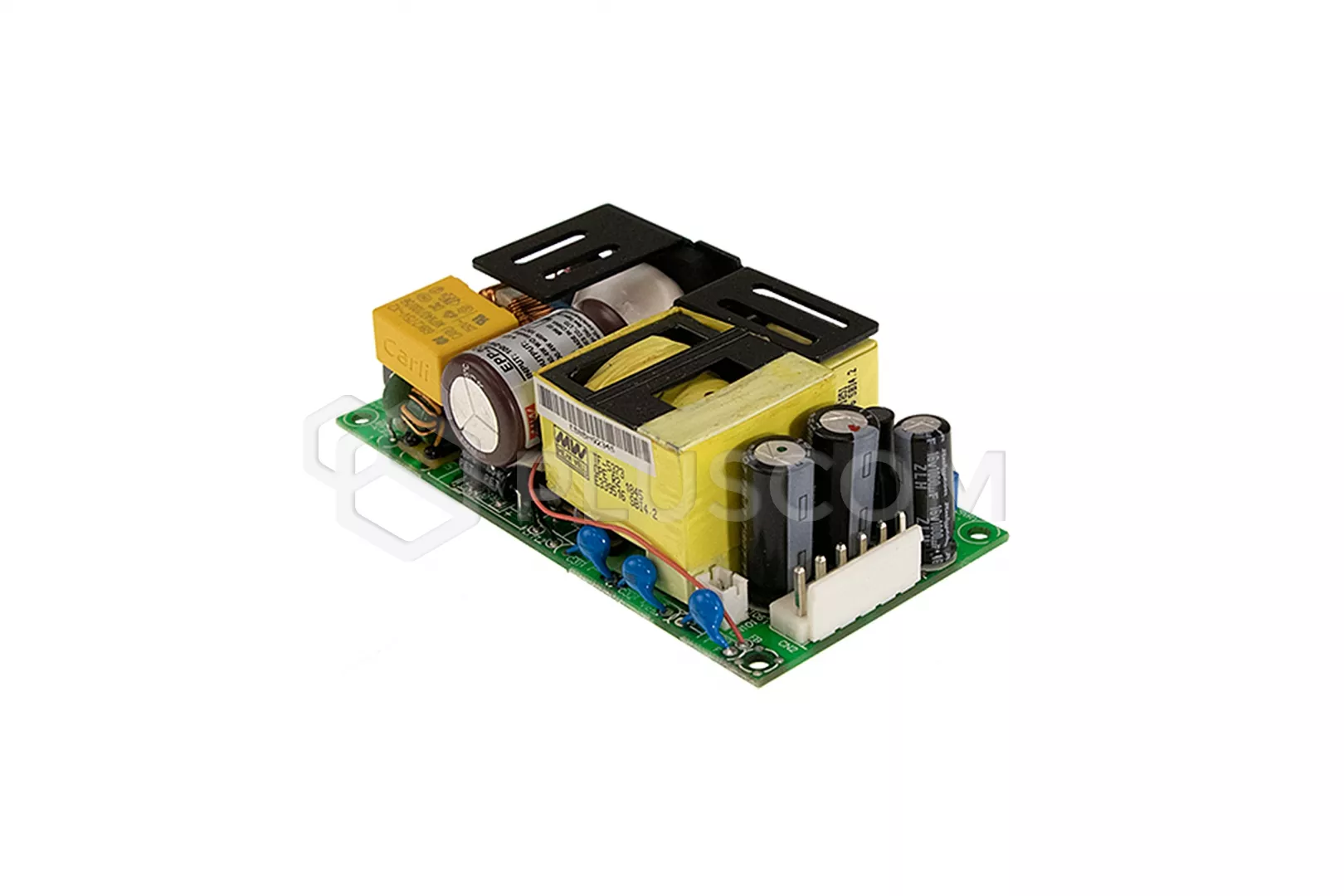

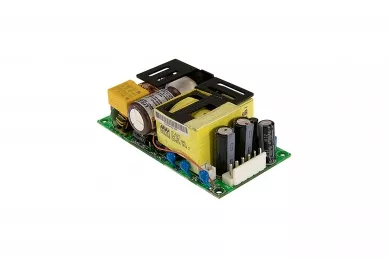

Pulsar EPP-200-24 Open frame power supply 24V/201.6W/8.4A

69,43 EUR including 23.00% VAT
Product code: #27352
Manufacturer: Pulsar
  • Output voltage: DC 24V
  • Rated current: 5.9A
  • No load power consumption: <0.5W
  • Built-in active PFC function
  • Built-in 12V/0.5A fan supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar EPP-150-48 Open frame power supply 48V/150W/3.125A Pulsar EPP-150-27 Open frame power supply 27V/150W/5.56A Pulsar EPP-100-48 Open frame power supply 48V/100W/2.1A Pulsar EPP-100-15 Open frame power supply 15V/100W/6.67A Pulsar EPP-300-48 EPP 48V/300W/6.25A open frame power supply Pulsar EPP-150-12 EPP 12V/150W/8.4A open frame power supply Pulsar EPP-100-27 EPP 27V/100W/3.71A open frame power supply Pulsar EPP-300-27 EPP 27V/300W/11.12A open frame power supply

Pulsar EPP-200-24 Open frame power supply 24V/201.6W/8.4A


The EPP-150-27 open frame power supply has a wide power supply range of 80 - 264 V AC, 113 - 370 V DC, built-in active PFC function and built-in 12V/0.5A fan power supply.
It is equipped with security features:
  • short-circuitSCP
  • overload OLP
  • over voltage
  • over temperature
TECHNICAL DATA:
  • output voltage: 80 ~ 264VAC
  • output voltage adjustment range: 22.8~25.2V
  • output voltage: 24V
  • current efficiency: 5.9A
  • power: 201.6W
  • efficiency: 94%
  • ripple voltage: 150 mV p-p max.
  • LED optical signaling
  • operating temperature: -30°C...+70°C
  • dimensions: 101.6x50.8x29mm
  • weight: 190g
  • no housing, built-in module
Download
Datasheet 0.64 MB
CE Declaration 0.61 MB
