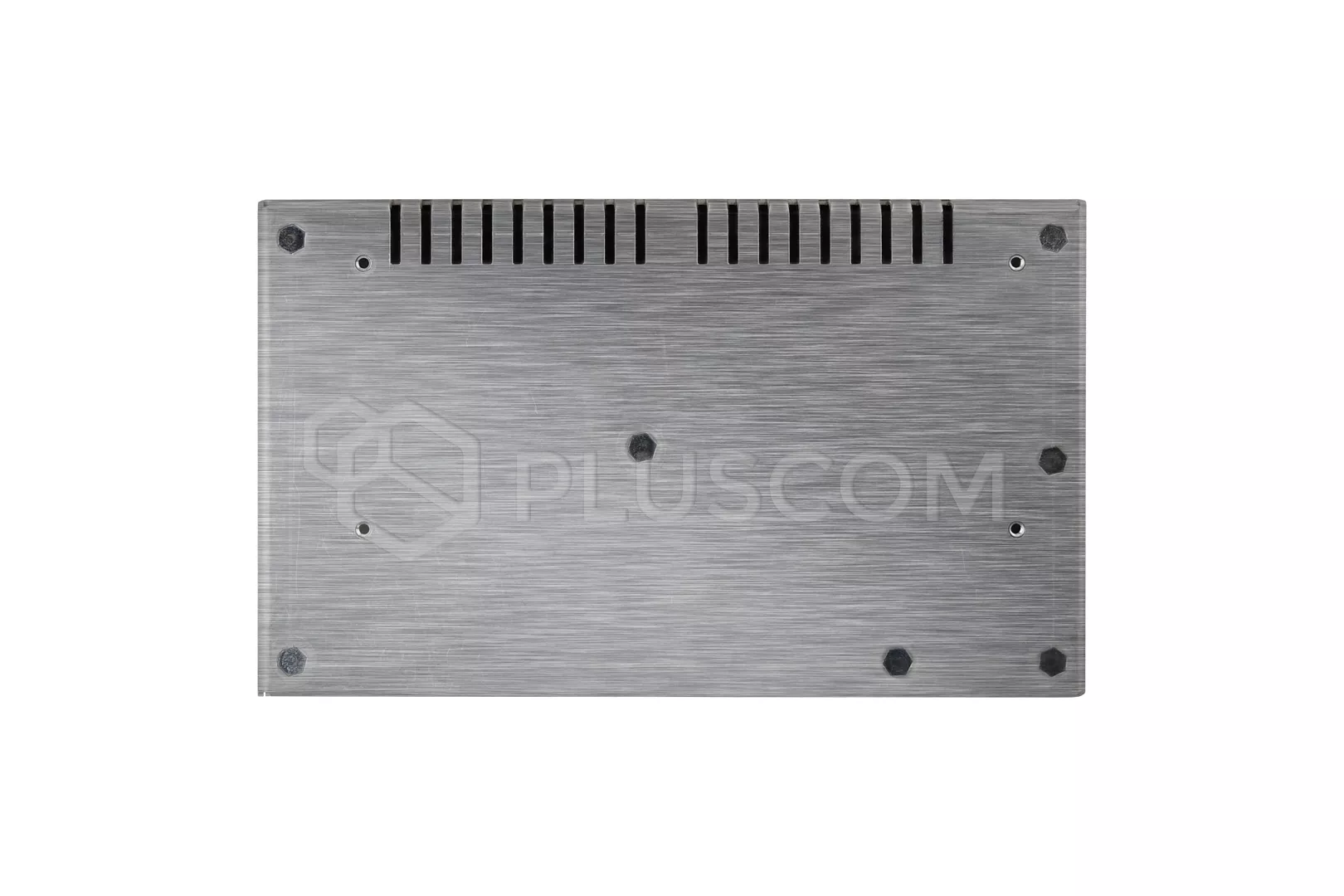

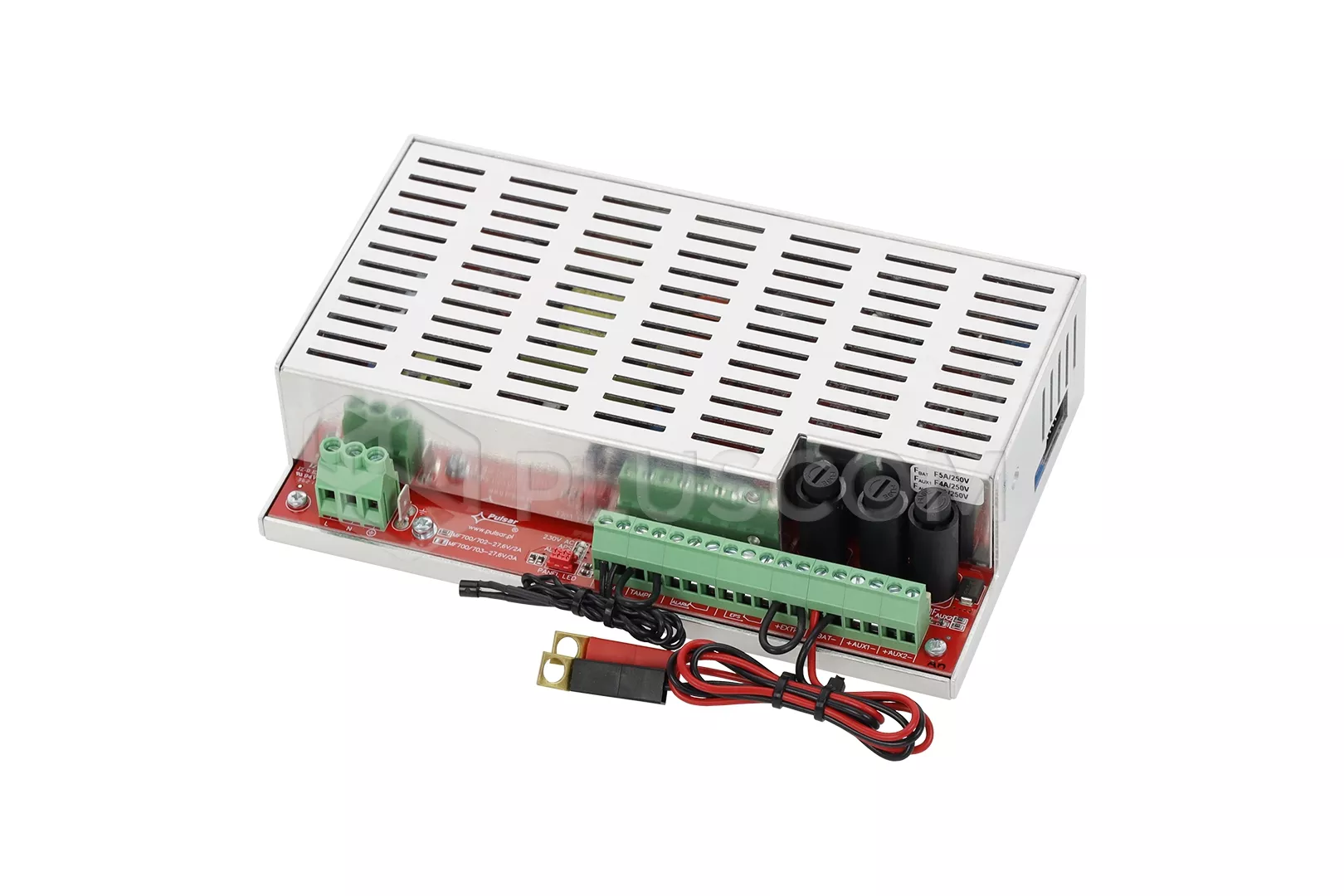

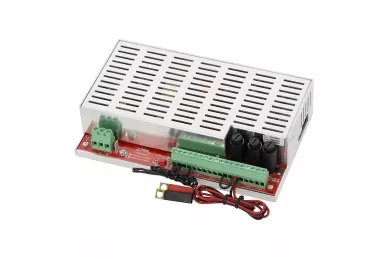

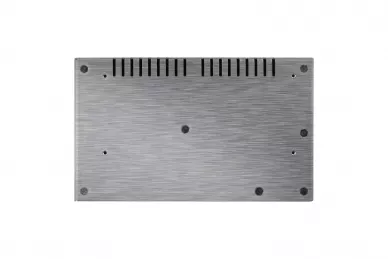

Pulsar EN54M-2A7 EN54M 27,6V/2A/2×7Ah power supply module for fire alarm systems

200,53 EUR including 23.00% VAT
Product code: #19545
Manufacturer: Pulsar
  • Power supply: 230 V AC
  • Battery charging current: 0.4A
  • Current consumption by PSU systems: 52mA max.
  • Efficiency: 88%
  • Dimensions: 200 x 120 x 48 [+/-2 mm]

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar EN54M-5A17-40 EN54M 27,6V/5A/2×17-40Ah power supply module for fire alarm systems Pulsar EN54M-3A7-17 EN54M 27,6V/3A/2×7-17Ah power supply module for fire alarm systems Pulsar EN54M-3A17-40 EN54M 27,6V/3A/2×17-40Ah power supply module for fire alarm systems Pulsar EN54M-2A7-17 EN54M 27,6V/2A/2×7-17Ah power supply module for fire alarm systems Pulsar EN54M-10A40-65 EN54M 27,6V/10A/2×40-65Ah power supply module for fire alarm systems Pulsar EN54M-10A17-40 EN54M 27,6V/10A/2×17-40Ah power supply module for fire alarm systems Pulsar EN54M-10A7-17 EN54M 27,6V/10A/2x7-17Ah power supply module for fire alarm systems Pulsar EN54M-5A7-17 EN54M 27,6V/5A/2×7-17Ah power supply module for fire alarm systems Pulsar EN54M-5A40-65 EN54M 27,6V/5A/2×40-65Ah power supply module for fire alarm systems

Pulsar EN54M-2A7 EN54M 27,6V/2A/2×7Ah power supply module for fire alarm systems


Technical parameters:

  • Power supply: 230 V AC
  • Power supply output: 1.6 A / 27.6 V DC - for continuous operation – Imax a 2 A / 27.6 V DC - for intermittent operation – Imax b (5min)
  • Compliant with standards: Certification with Fire protection standard EN54-4Certification with Smoke extraction and ventilation standard EN12101-10Certificate of constancy of performance CNBOP-PIB No 1438-CPR-0630
  • Battery charging current: 0.4A
  • Current consumption by PSU systems: 52mA max.
  • Efficiency: 88%
  • Dimensions: 200 x 120 x 48 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP
  • Technical outputs relay type: EPS – AC power failureALARM – collective failure
  • Technical input: EXTi – external failure
  • Warranty: 3 years
  • Notes: - built-in power supply module - DIN rail mounted, EN54M-DIN1 bracket required - To be able to install module of PSU in fire alarm system, it must be placed in enclosure of appropriate design and make complementary examinations to achieve certificate PN-EN54-4+A1+A2 or PN-EN12101-10+AC

  • Download
    Data sheet 0.97 MB
    Instruction 1.74 MB
