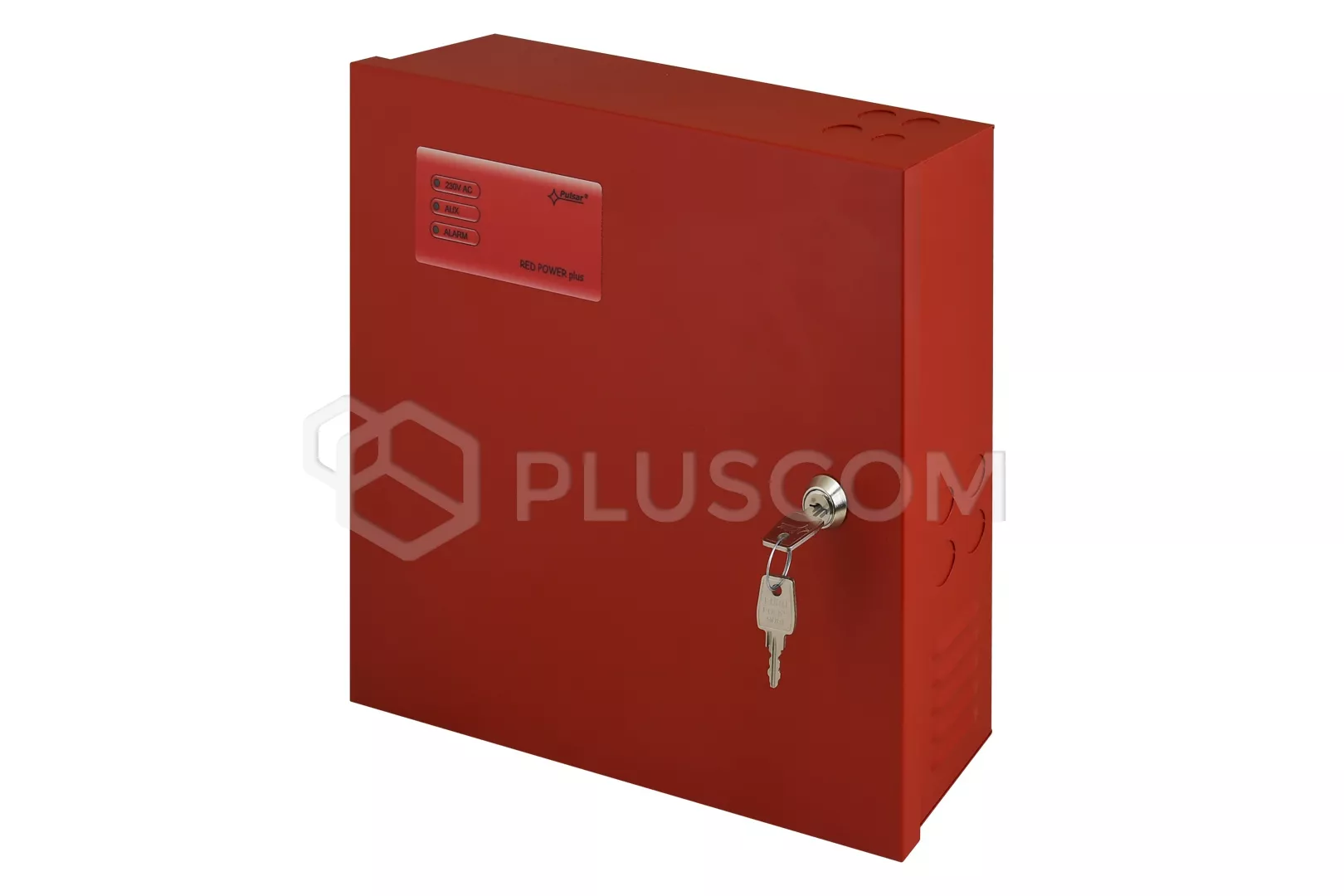

Pulsar EN54C-3A7 EN54C 27,6V/3A/2×7Ah power supply for fire alarm systems

265,53 EUR including 23.00% VAT
Product code: #19537
Manufacturer: Pulsar
  • Power supply: 230 V AC
  • Battery charging current: 0.4A
  • Battery: 2 x 7Ah
  • Current consumption by PSU systems: 52mA max.
  • Efficiency: 89%

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar EN54C-10A28 EN54C 27,6V/10A/2×28Ah power supply for fire alarm systems Pulsar EN54C-5A65 EN54C 27,6V/5A/2×65Ah power supply for fire alarm systems Pulsar EN54C-10A17 EN54C 27,6V/10A/2×17Ah power supply for fire alarm systems Pulsar EN54C-5A40 EN54C 27,6V/5A/2×40Ah power supply for fire alarm systems Pulsar EN54C-5A28 EN54C 27,6V/5A/2×28Ah power supply for fire alarm systems Pulsar EN54C-5A17 EN54C 27,6V/5A/2×17Ah power supply for fire alarm systems Pulsar EN54C-3A28 EN54C 27,6V/3A/2×28Ah power supply for fire alarm systems Pulsar EN54C-3A17 EN54C 27,6V/3A/2×17Ah power supply for fire alarm systems Pulsar EN54C-2A7 EN54C 27,6V/2A/2×7Ah power supply for fire alarm systems Pulsar EN54C-2A17 EN54C 27,6V/2A/2×17Ah power supply for fire alarm systems

Pulsar EN54C-3A7 EN54C 27,6V/3A/2×7Ah power supply for fire alarm systems


Technical parameters:

  • Power supply: 230 V AC
  • Power supply output: 2.6 A / 27.6 V DC - for continuous operation – Imax a 3 A / 27.6 V DC - for intermittent operation – Imax b (5min)
  • Compliant with standards: Certification with Fire protection standard EN54-4Certification with Smoke extraction and ventilation standard EN12101-10Certificate of constancy of performance CNBOP-PIB No 1438-CPR-0628Certificate of approval CNBOP-PIB No. 5222/2024
  • Battery charging current: 0.4A
  • Battery: 2 x 7Ah
  • Current consumption by PSU systems: 52mA max.
  • Efficiency: 89%
  • Dimensions: 330 x 305 x 82 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosure
  • Technical outputs relay type: EPS – AC power failureALARM – collective failure
  • Technical input: EXTi – external failure
  • Closing: lock (1xMR027, same code)
  • Installation: surface-mounted
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL3001 (red), metallic
  • IP protection class: IP 30
  • Warranty: 3 years

  • Download
    Data sheet 0.77 MB
    Instruction 1.87 MB
