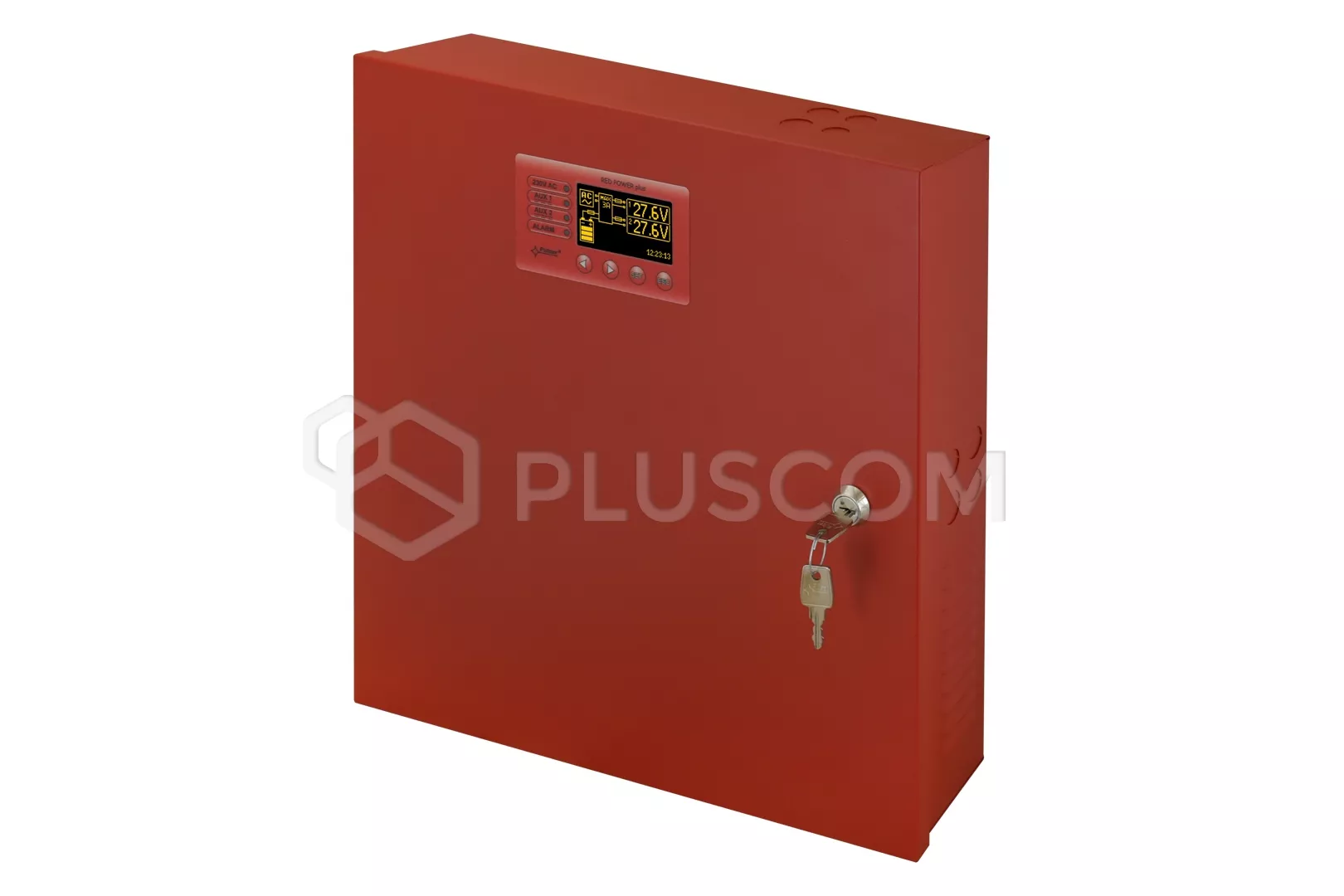

Pulsar EN54C-3A17LCD EN54C 27,6V/3A/2x17Ah/LCD power supply for fire alarm systems

356,42 EUR including 23.00% VAT
Product code: #22593
Manufacturer: Pulsar
  • Power supply: 230 V AC
  • Battery charging current: 0.8A
  • Battery: 2 x 17Ah
  • Current consumption by PSU systems: 64mA max.
  • Efficiency: 89%

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar EN54C-5A17LCD EN54C 27,6V/5A/2x17Ah/LCD power supply for fire alarm systems Pulsar EN54C-5A40LCD EN54C 27,6V/5A/2x40Ah/LCD power supply for fire alarm systems Pulsar EN54C-10A40LCD EN54C 27,6V/10A/2x40Ah/LCD power supply for fire alarm systems Pulsar EN54C-10A17LCD EN54C 27,6V/10A/2x17Ah/LCD power supply for fire alarm systems

Pulsar EN54C-3A17LCD EN54C 27,6V/3A/2x17Ah/LCD power supply for fire alarm systems


Technical parameters:

  • Power supply: 230 V AC
  • Power supply output: 2.2 A / 27.6 V DC - for continuous operation – Imax a 3 A / 27.6 V DC - for intermittent operation – Imax b (5min)
  • Compliant with standards: Certification with Fire protection standard EN54-4Certification with Smoke extraction and ventilation standard EN12101-10Certificate of constancy of performance CNBOP-PIB No 1438-CPR-0628Certificate of approval CNBOP-PIB No. 5222/2024
  • Battery charging current: 0.8A
  • Battery: 2 x 17Ah
  • Current consumption by PSU systems: 64mA max.
  • Efficiency: 89%
  • Dimensions: 385 x 402 x 88 [+/-2 mm]distance from surface: 8 mm
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosure
  • Technical outputs relay type: EPS – AC power failureALARM – collective failure
  • Technical input: EXTi – external failure
  • Closing: lock (1xMR027, same code)
  • Installation: surface-mounted
  • Indication: LCD display
  • Material: steel DC01, 1mm, RAL3001 (red), metallic
  • IP protection class: IP 30
  • Warranty: 3 years
  • Notes: - remote monitoring, option: LAN, RS485 (appropriate modules required)

  • Download
    Data sheet 1.15 MB
    Instruction 5.1 MB
