Pulsar AWO513 housing for BOSCH access control (small)

The housing is dedicated to devices mounted on a DIN rail (TH35mm). Thanks to its design, it is designed for mounting the AMC controller of the KD system on a TH/TS35 (35mm) DIN rail, the PBC power supply on a TH/TS35 (35mm) DIN rail, additional modules or other devices adapted for mounting on a TH/TS35 (35mm) DIN rail, 2x7Ah/12V batteries.

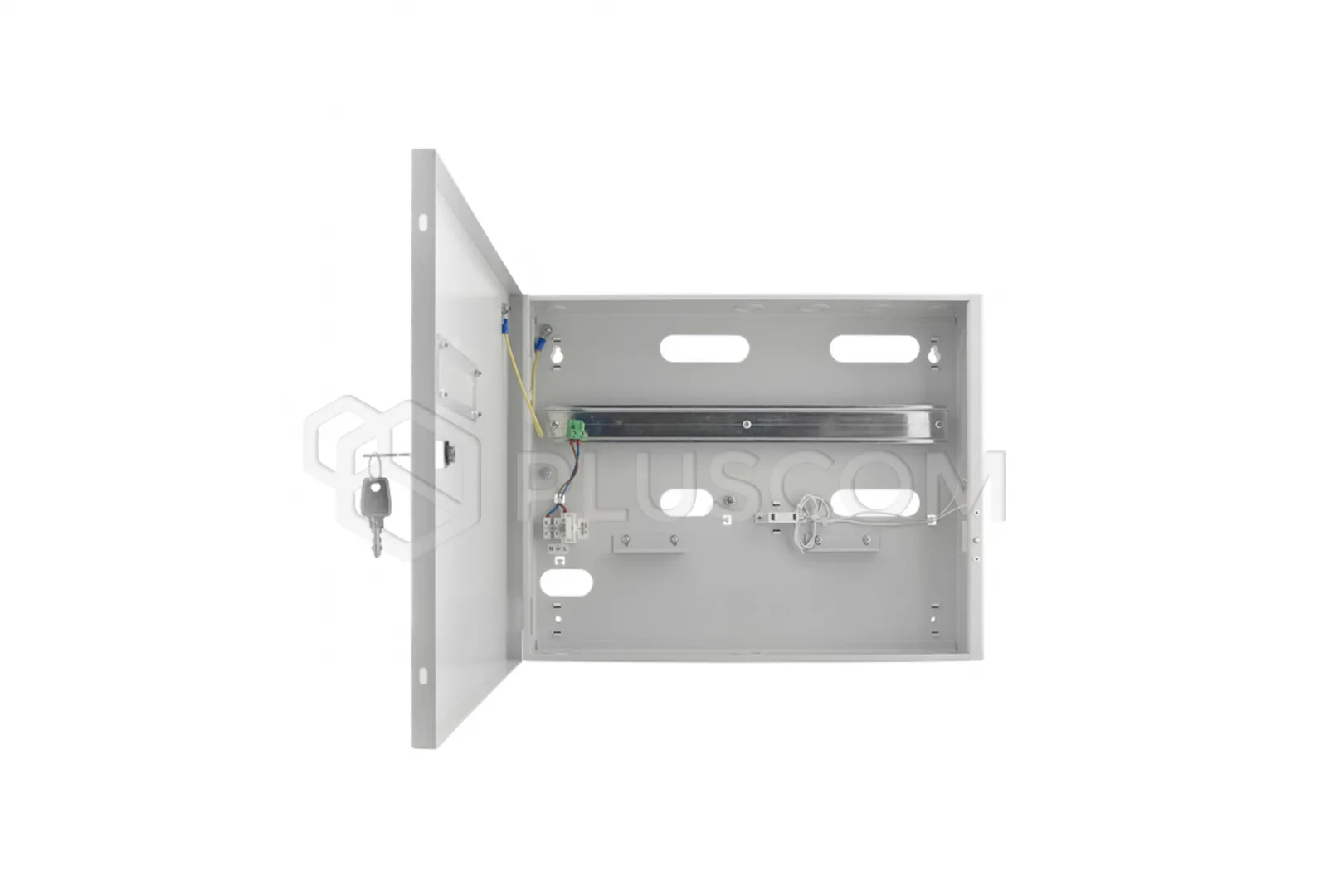

AWO513 is equipped with anti-sabotage protection: tamper-opening of the housing and tearing it off the surface. The housing is equipped with one 380mm long DIN rail.

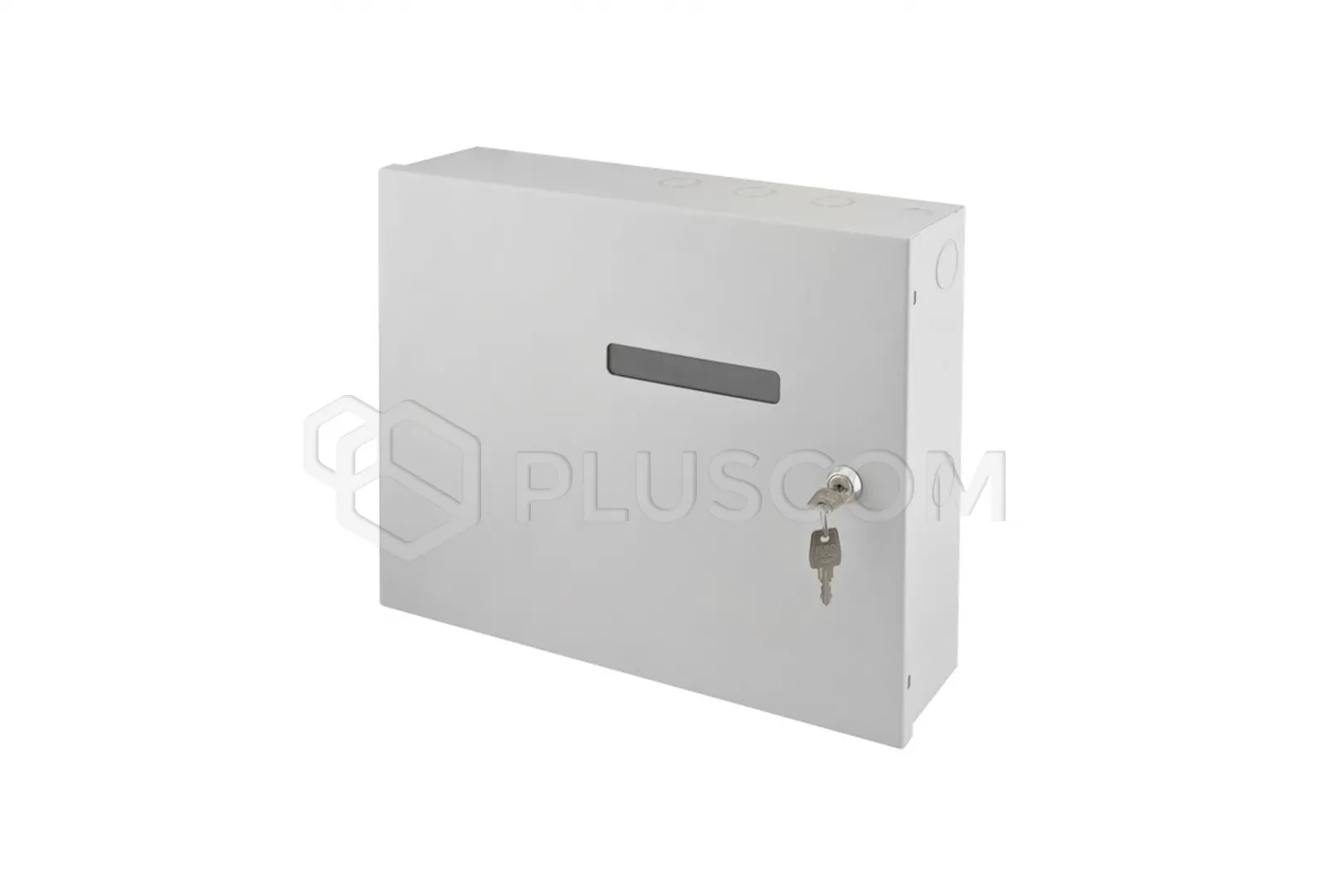

In the front there is a window to view the AMC controller status secured with
a polycarbonate pane.

TECHNICAL PARAMETERS:

• material: 7035 color sheet metal
• tightness: IP20
• number of DIN rails: 1
• DIN rail length: 380mm
• number of fields „S”: 21

• distance from wall 14mm
• battery space: 2x7Ah/12V

• anti-sabotage protection: 2 x microswitch: opening and tearing off the housing
• closing: screwed: from the front screw x 2 + lock same code MR027
• external dimensions of the housing: 405x320x90+14mm
• weight: 4.75kg

APPLICATION:

• AMC controller of the KD system on a DIN TH/TS35 rail (35mm)
• PBC power supply on a DIN TH/TS35 rail (35mm)
• additional modules or other devices adapted for mounting on a DIN rail TH/TS35 (35mm)
• 2x 7Ah/12V batteries
