Pulsar AWO505PU Casing for Bosch access control systems (large)

Pulsar AWO514 metal casing for Bosch access control systems devices mounted on a DIN rail

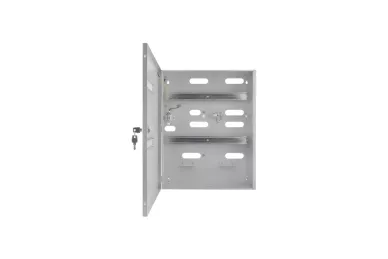

The enclosure is fitted with a bottom mounted DIN rail with a length of 380mm at mounting distances with a height of 18mm, allowing cable routing under the enclosure.
The enclosure has a battery compartment for two 7Ah / 12V batteries. The set includes a tamper switch (indicating unwanted removal of the enclosure from the wall). In the standard option, the enclosure is fitted with a key lock with the same code – MR027.
A preview pane of the AMC status, protected with polycarbonate glass, is located at the front panel.

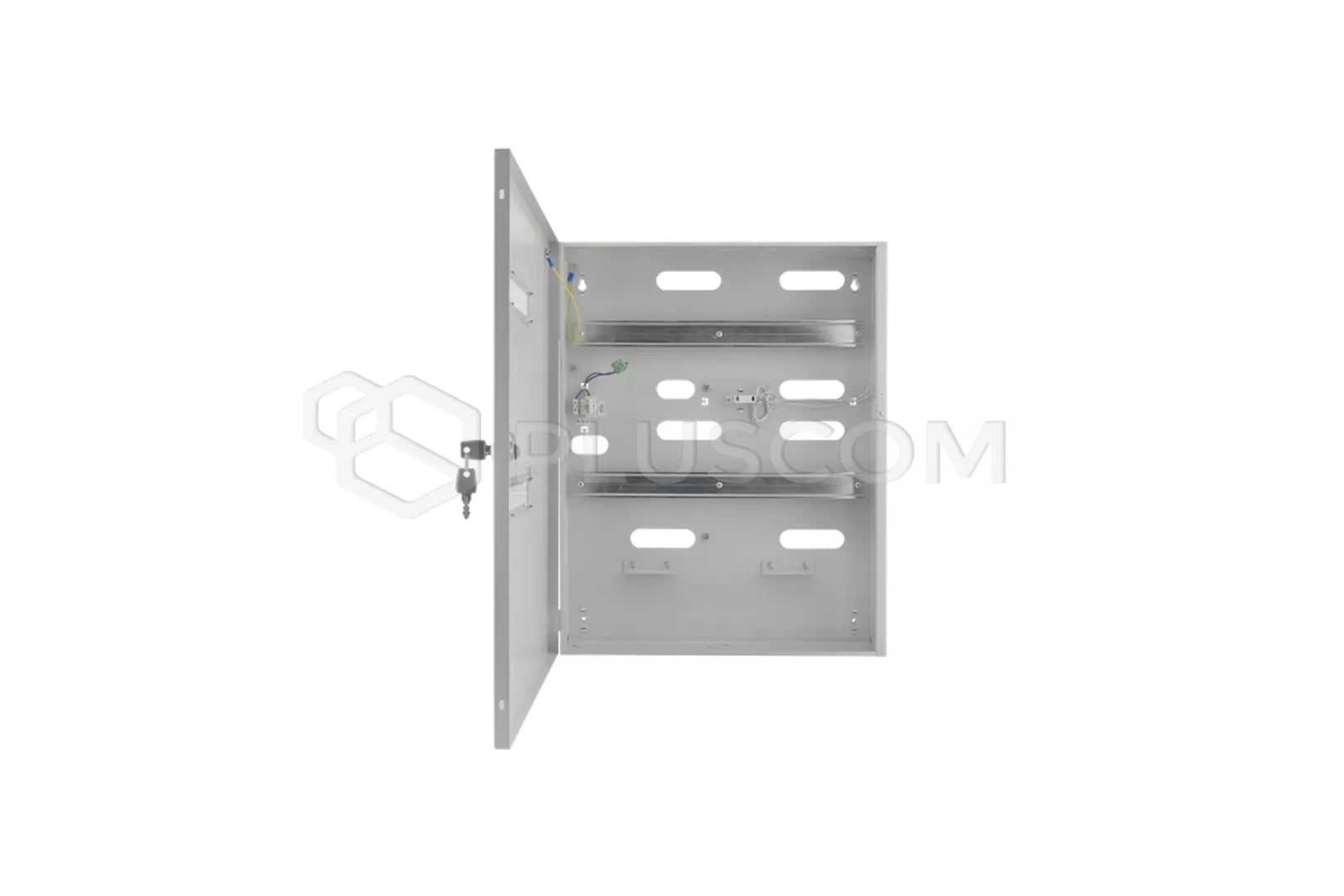

Pulsar AWO505PU Casing for Bosch access control systems (large)

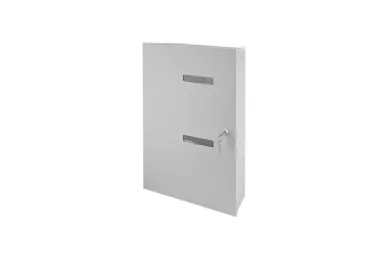

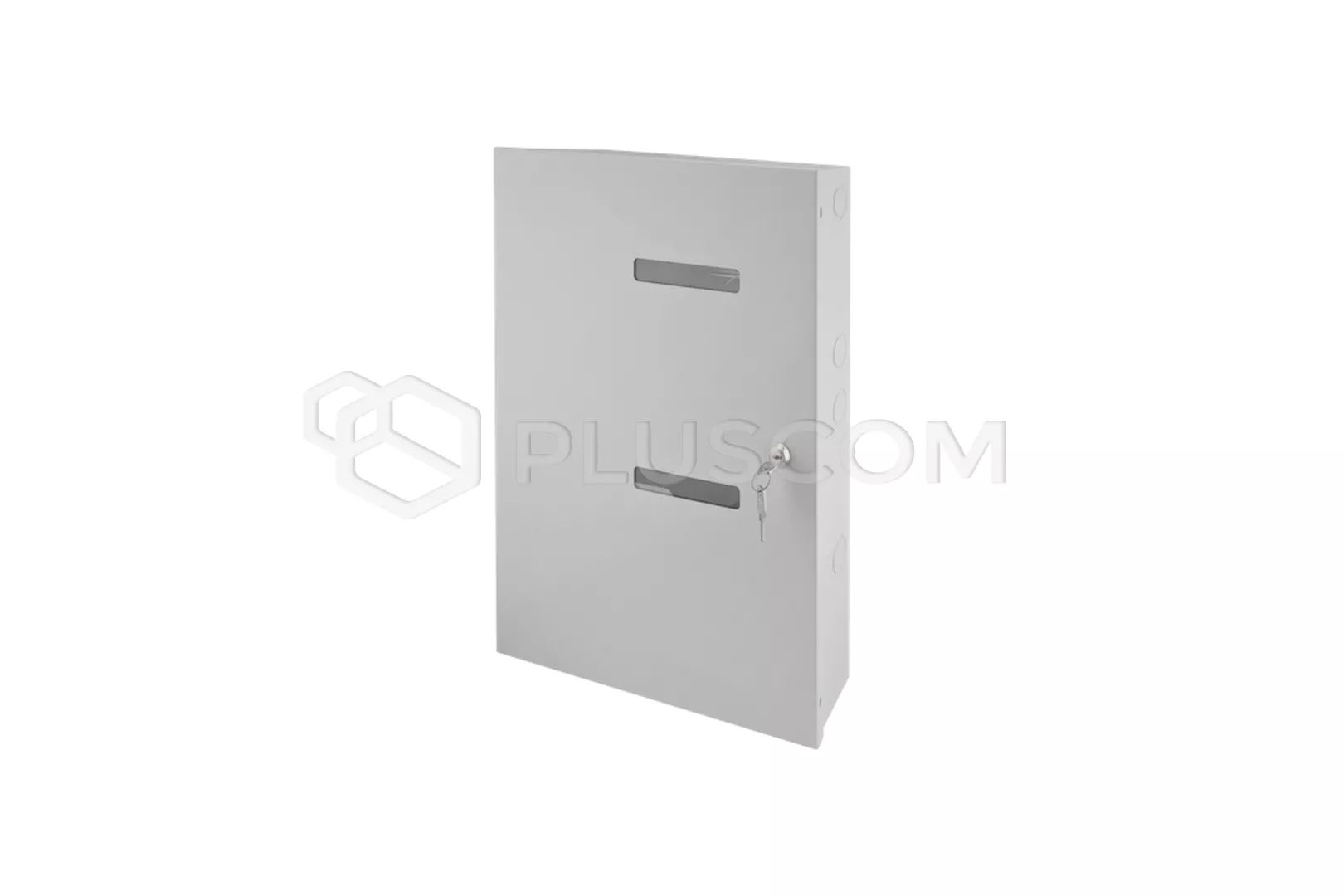

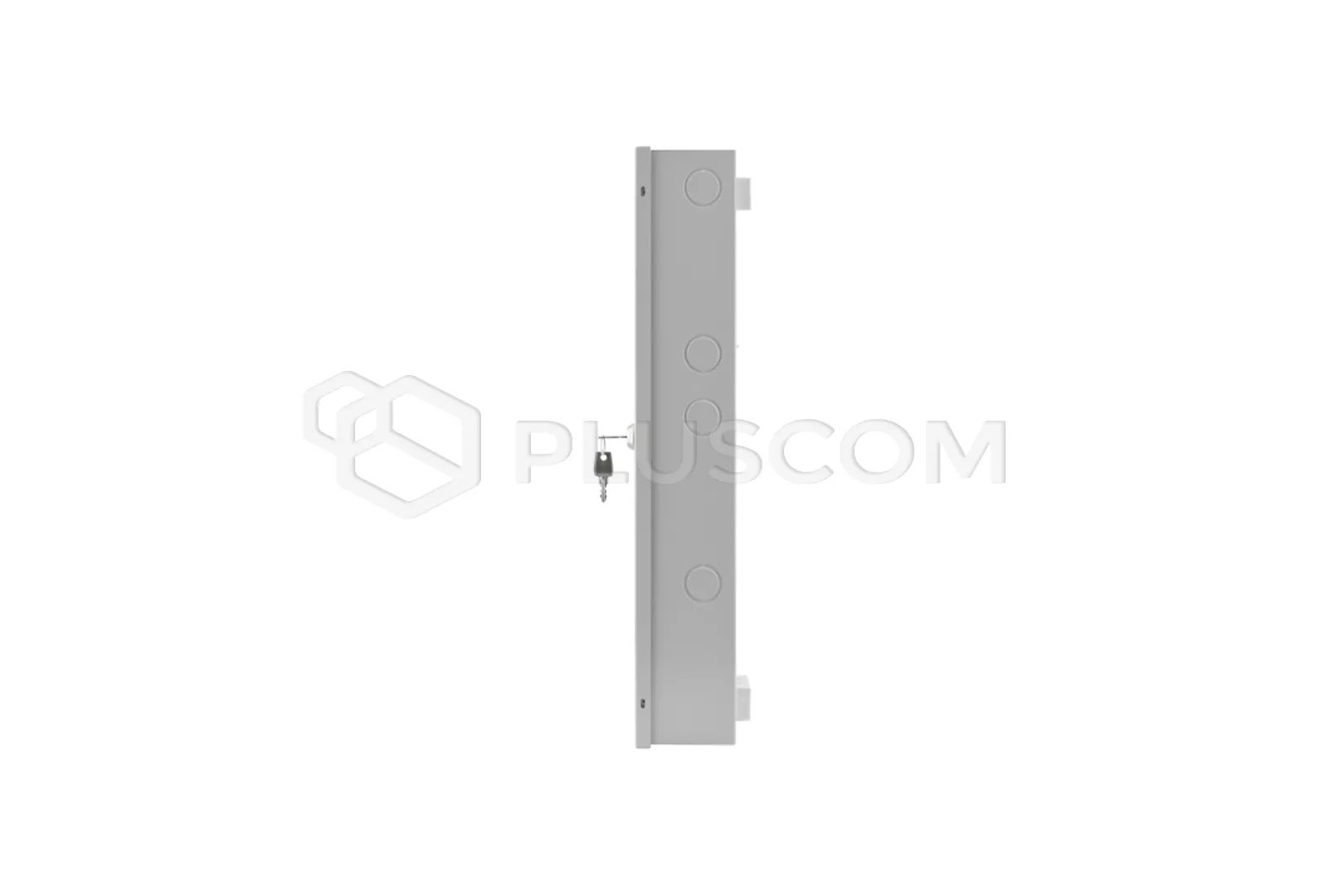

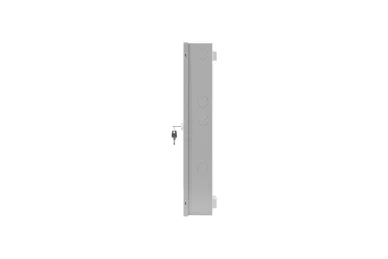

Pulsar AWO505PU

• Material: sheet DC01 color 7035

• Enclosure: IP20
• Number of DIN rails: 2

• length of DIN rail: 2x380mm
• number of „S” type fields: 21

• distance from wall: 14mm
• Fitting battery: 2x7Ah/12V

• Tamper protection: 2x microswitch: opening of the enclosure, detachment from the wall

• Closing: bolted: 2x screws, frontplate + lock repeatable code MR027
• Dimensions: 405x520x90+14mm
• Weight: 7.02kg

DESTINATION:

• The AMC (Access Modular Controller) of the access control system on a TH/TS35 (35mm) DIN rail
• Power supply of the PCB on a TH/TS35 (35mm) DIN rail
• Additional modules or other devices adapted for mounting on a TH/TS35 (35mm) DIN rail
• batteries 2x 7Ah/12V

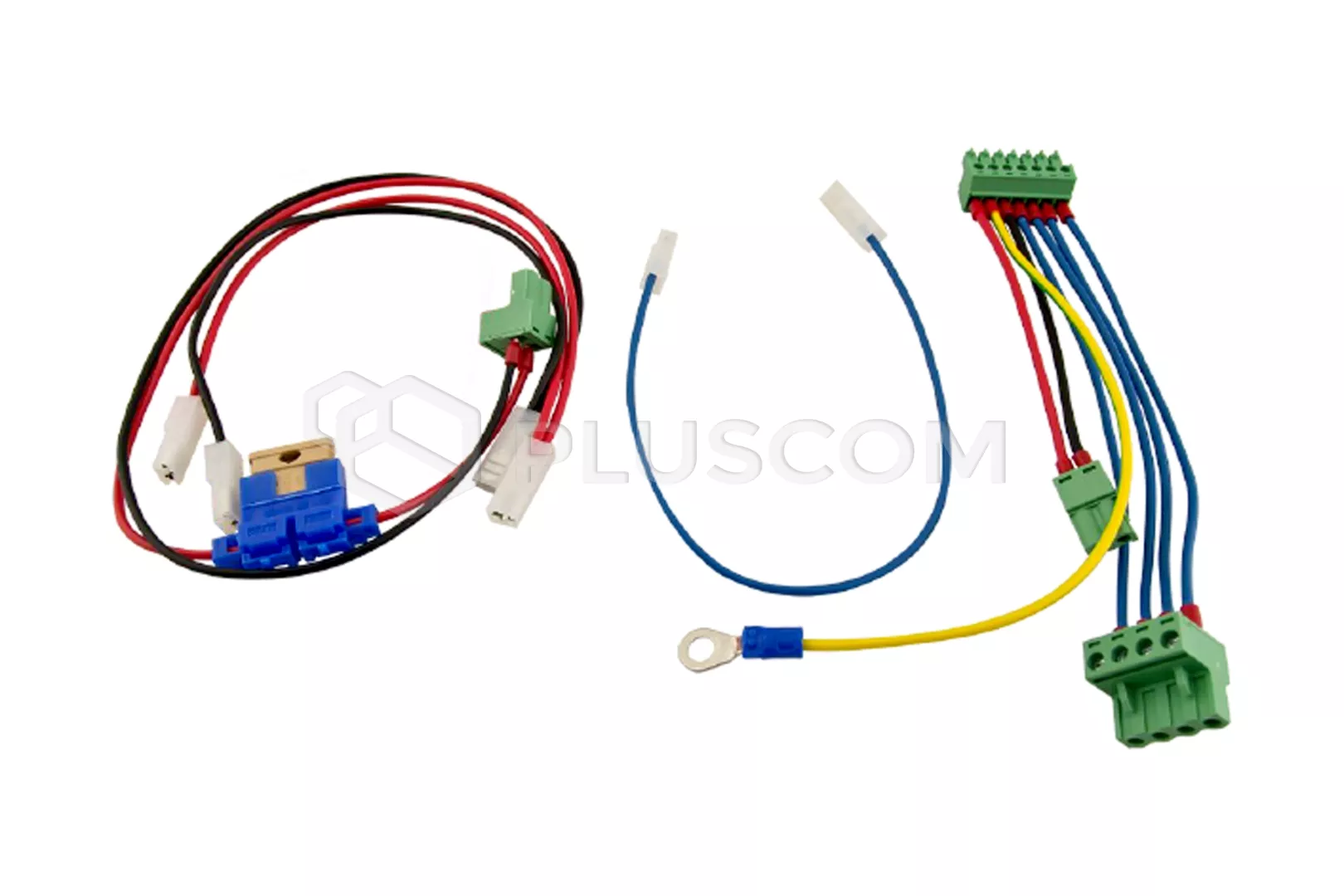

Set of cables included:
