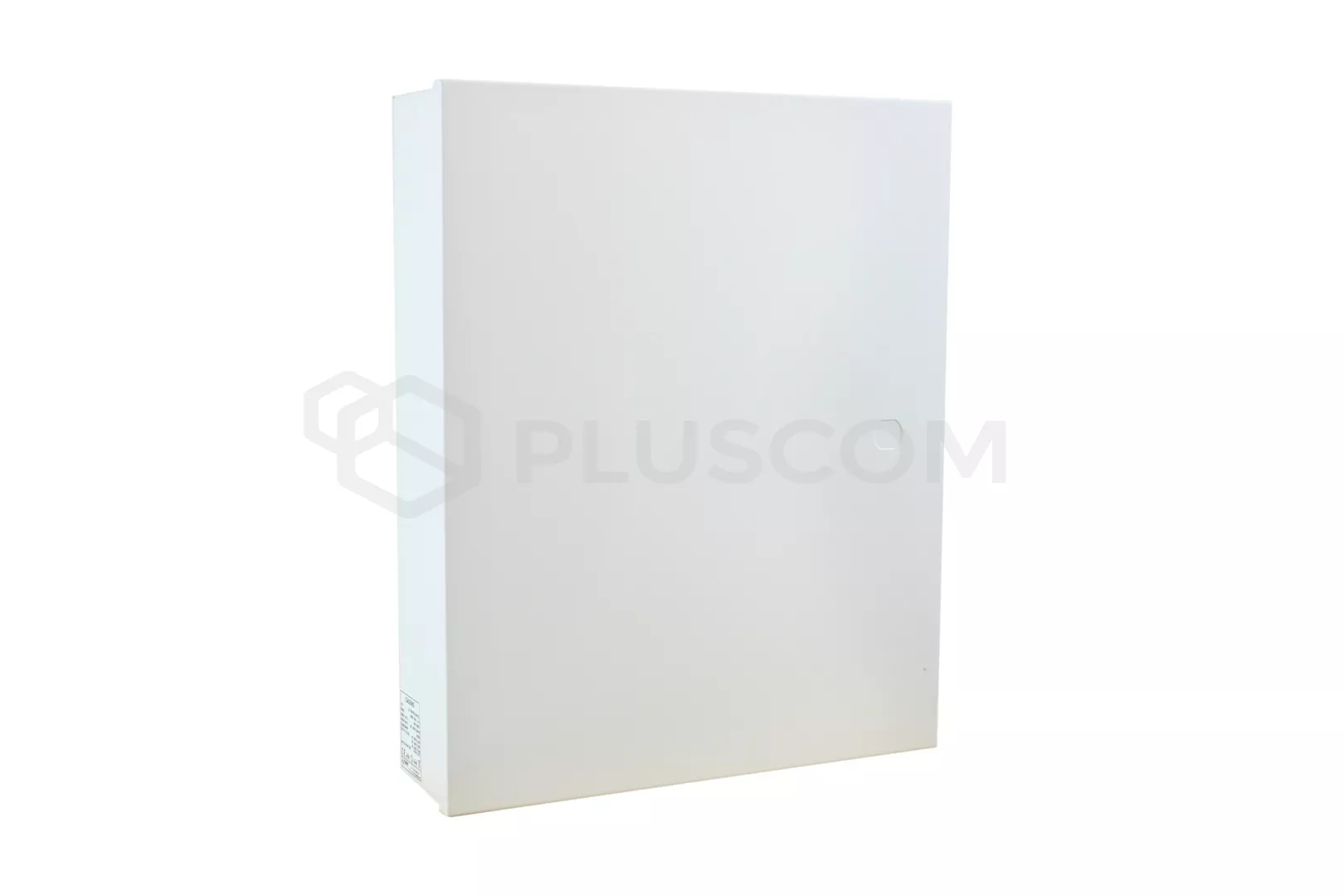

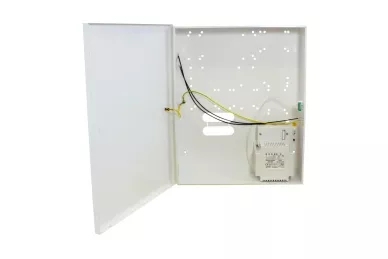

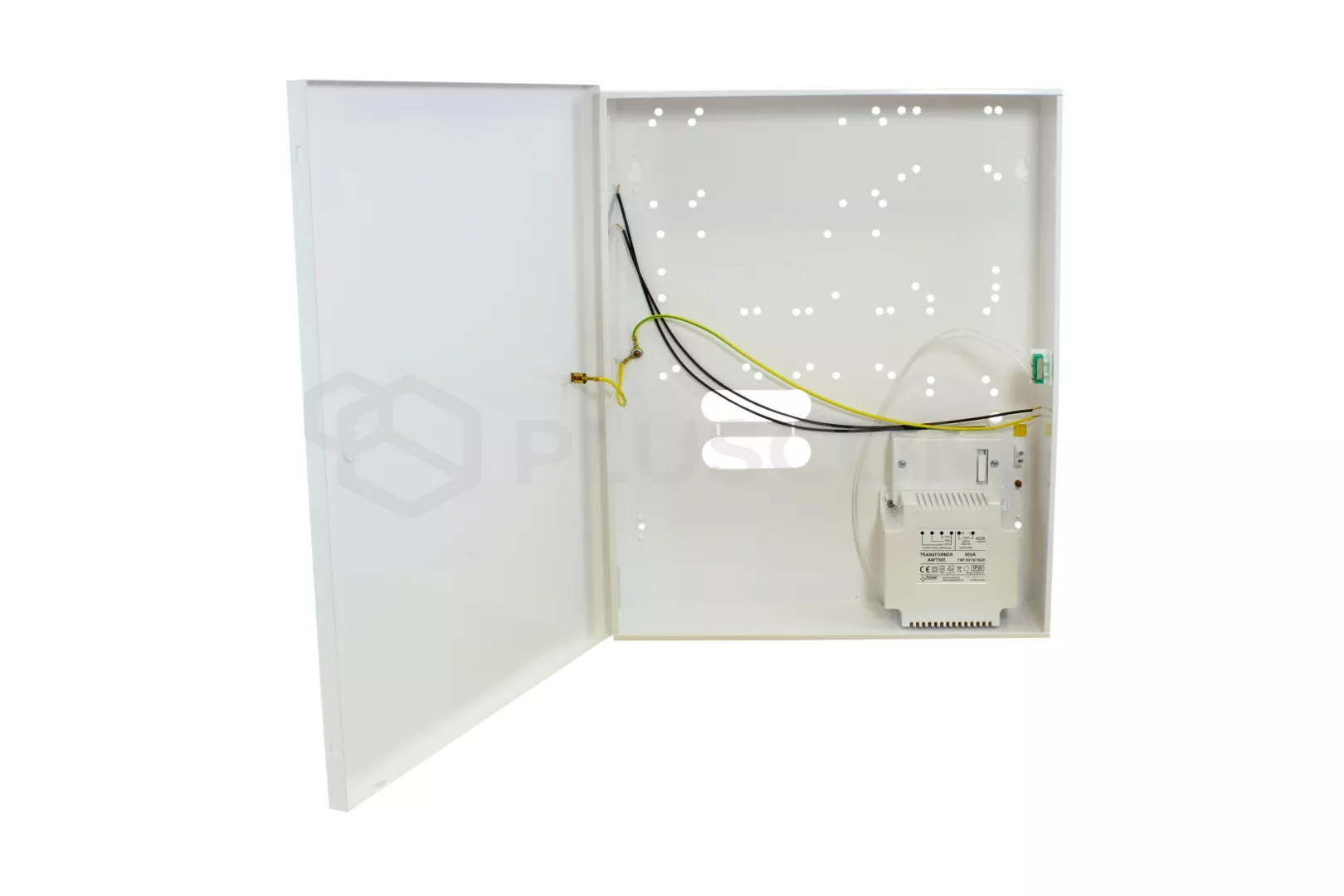

Pulsar AWO256 Casing for SATEL control panels with transformer

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• other dedicated devices

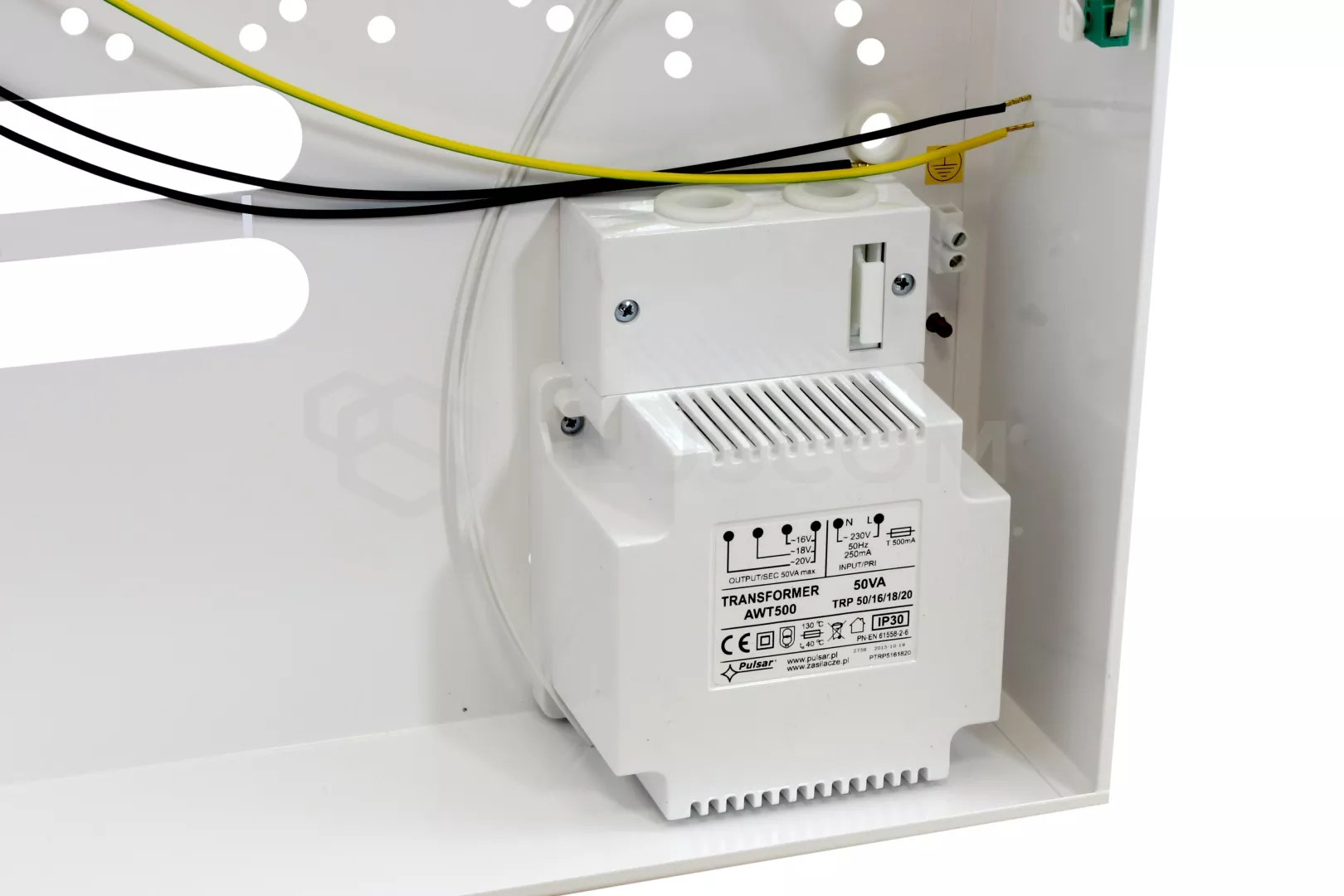

The housing includes a transformer TRP 50VA/16V/18V/20V, in the housing PC/ABS, IP20

• transformer TRP 50VA/16V/18V/20V

  • power supply 230V/AC 50Hz
  • output voltage: 20V/2,5A, 18V/2,8A, 16V/3A
• place on battery: 12V/17Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

• internal dimensions: 320x395x90mm
• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

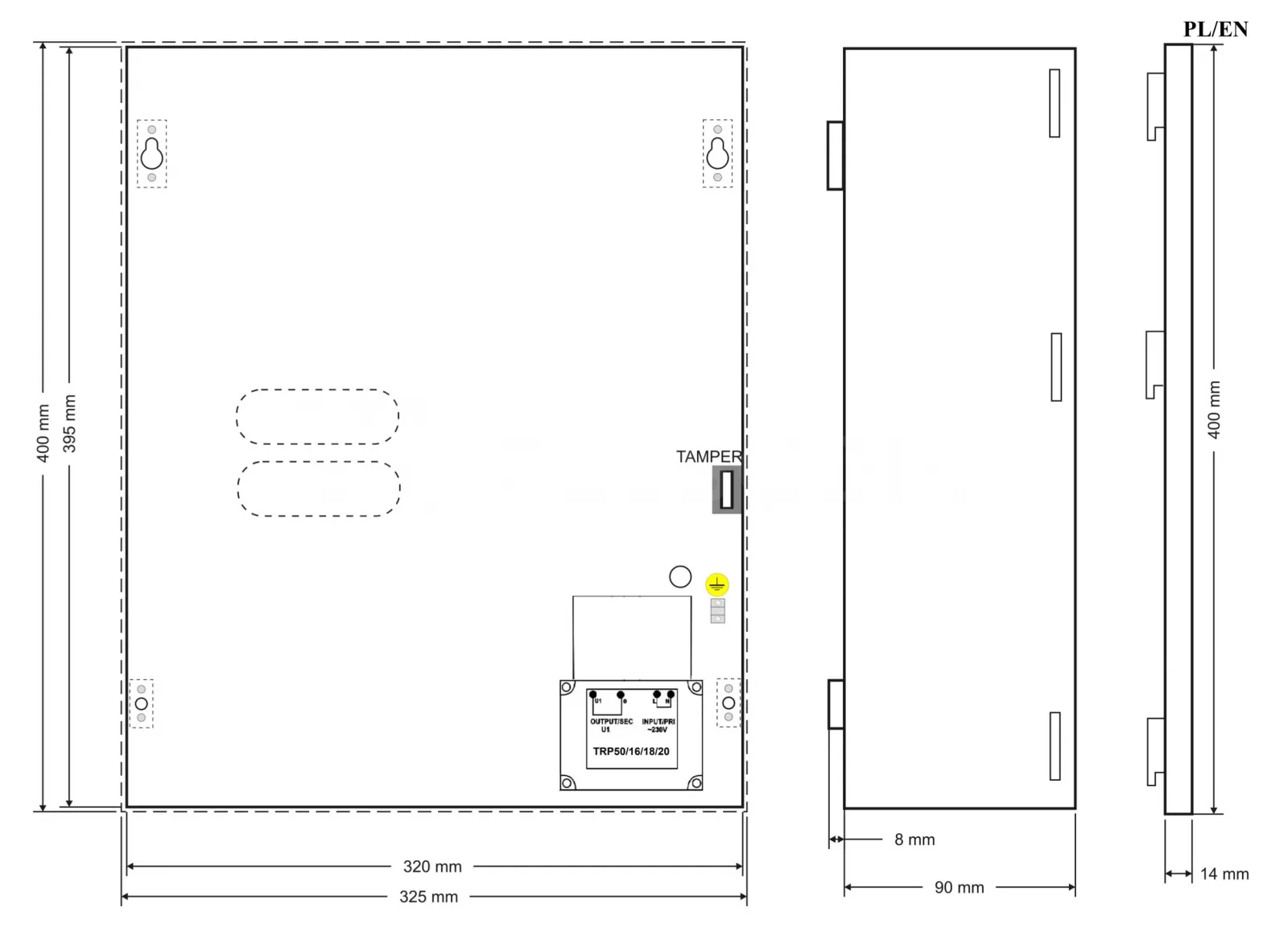

Pulsar AWO256 Dimensions

Panels:

• CA6,10, VERSA 5,10,15, INTEGRA 24,32 + 4x CA10E (CA64E, SM, MST1)
• CA6,10, VERSA 5,10,15, INTEGRA 24, 32 + 3 x CA10E (CA64E, SM, MST1) + CA64 (EPS, O-OC, O- ROC, O-R, VGM- 16, SR, ADR, ACC-KP-PS)
• CA6, 10, VERSA 5,10,15, INTEGRA 24, 32 + CA64 (E, SM, MST1) + 2 x CA64 (EPS, O-OC, O-ROC, O-R, VGM- 16, SR, ADR, ACC- KP- PS)
• INTEGRA 64, 128 + 3 x CA64E (CA10E, SM, MST1)
• INTEGRA 64, 128 + CA64E (CA10E, SM, MST1) + CA64 (EPS, O- OC, O-ROC, O-R, VGM- 16, SR, ADR, ACC- KP- PS)

Modules:

• CA64 (PP, OPS- OC, OPS-R, OPS- ROC, EPS, O-OC, O-ROC, O-R, VGM- 16, SR, ADR, ACC-KP-PS) + 4 x CA64E (CA10E, SM, MST1)
• CA64 (PP, OPS-OC, OPS-R, OPS-ROC) + CA64 (EPS, O-OC, O-ROC, O-R, VGM16, SR, ADR, ACC- KP-PS) + 3 x CA64E (CA10E, SM, MST1)
• 2 x CA64 (EPS, O-OC, O-ROC, O-R, VGM- 16, SR, ADR, ACC- KP-PS) + 3 x CA64E (CA10E, SM, MST1)

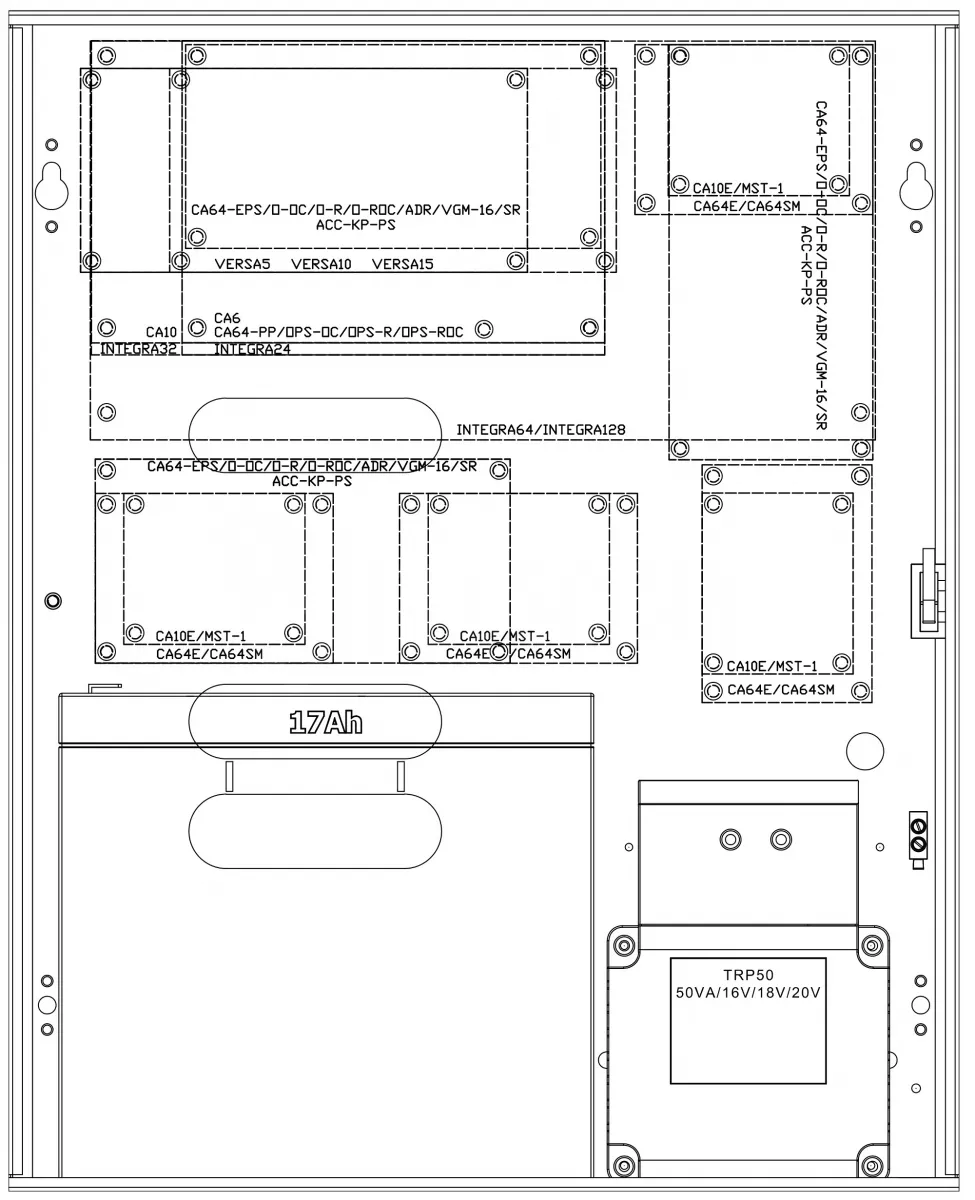

Pulsar AWO256 Placement of SATEL
