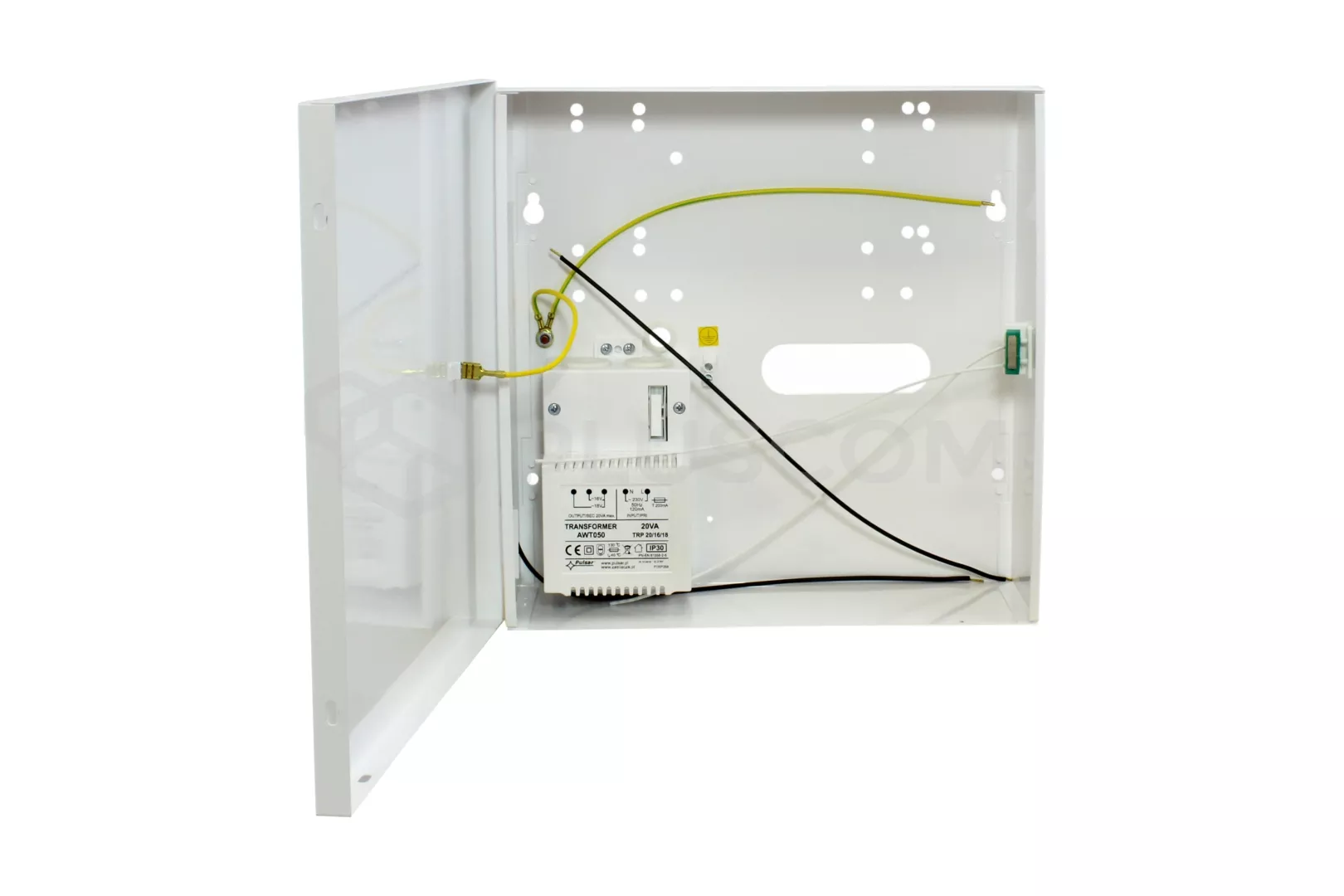

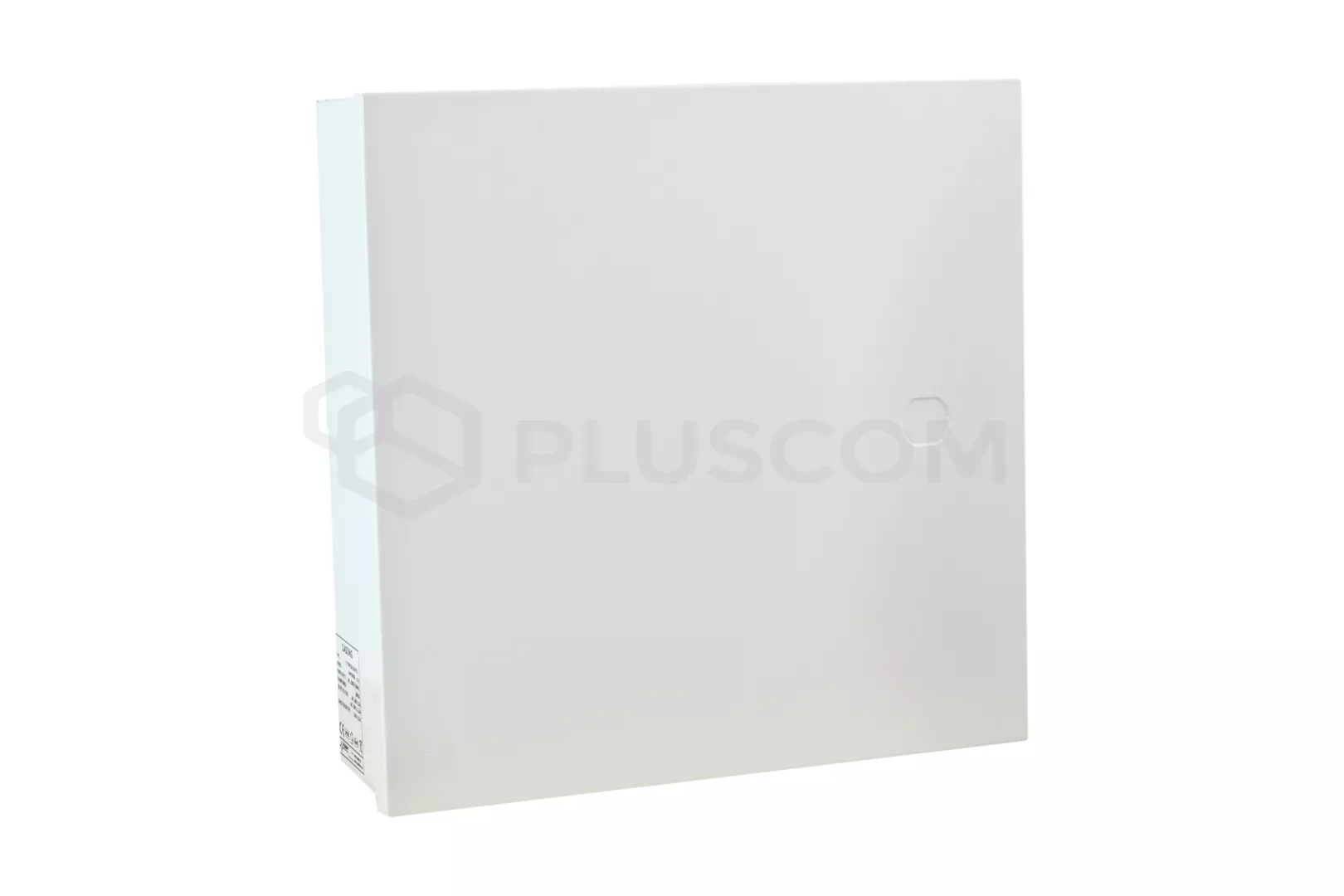

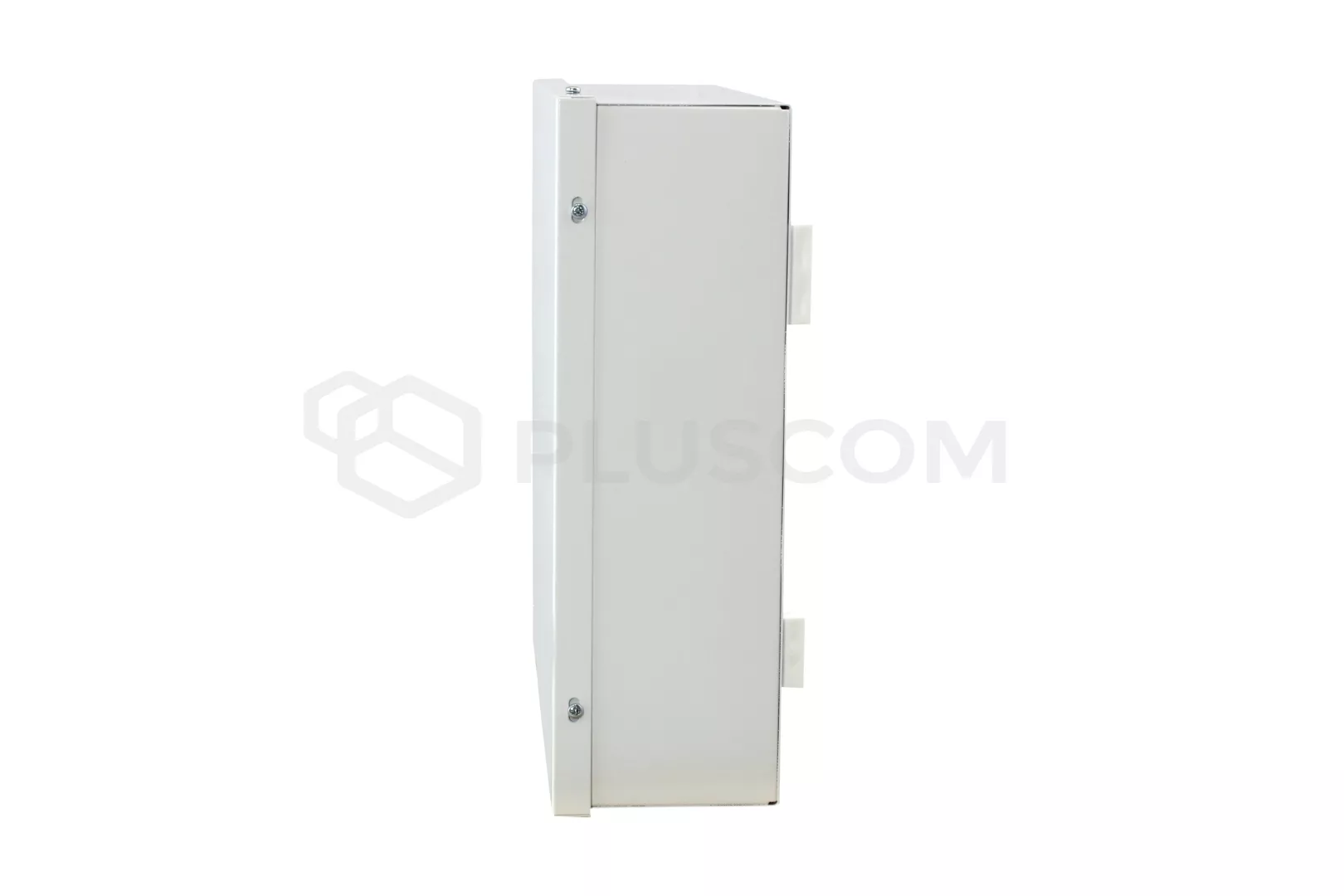

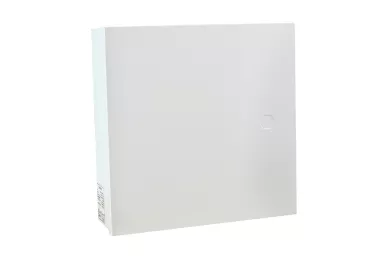

Pulsar AWO005 Casing for SATEL control panels with transformer

28,34 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #6492
Manufacturer: Pulsar
  • Housing dedicated to the control panel and modules SATEL, surface-mounted
  • Transformer: TRP 20VA/16V/18V
  • Place on the battery 12V/7Ah
  • Internal dimensions: 250x250x80mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar AWO256 Casing for SATEL control panels with transformer

Pulsar AWO005 (v. 1.4)


7/TRP20/SATEL surface mounted housing is designed for mounting:
  • panel boards and optional additional modules control
  • controllers and additional modules
  • radio transmitter, GSM
  • module PS
  • other dedicated devices

The housing includes a transformer TRP 20VA/16V/18V, in the housing PC/ABS, IP20
The housing has a place for 12V/7Ah.
The standard is also a tamper protection in the form of the chassis intrusion detector

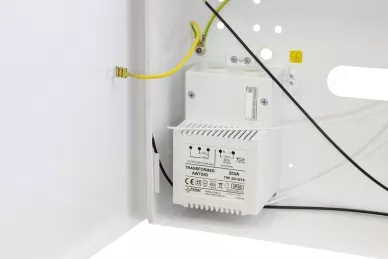

Built-in transformer Pulsar TRP 20/16/18

Built-in transformer Pulsar TRP 20/16/18



SPECIFICATIONS:
  • transformer TRP 20VA/16V/18V
    • power supply 230V/AC 50Hz
    • output voltage: 18V/1A, 16V/1,2A
  • place on battery: 12V/7Ah
  • tamper protection: Yes
  • Material: 0.7mm sheet RAL9003 color
  • degree od protection : IP20
  • Internal dimensions: 250x250x80mm
  • closing: 4x twisted sheet metal, an optional locking
  • distance from wall 8mm

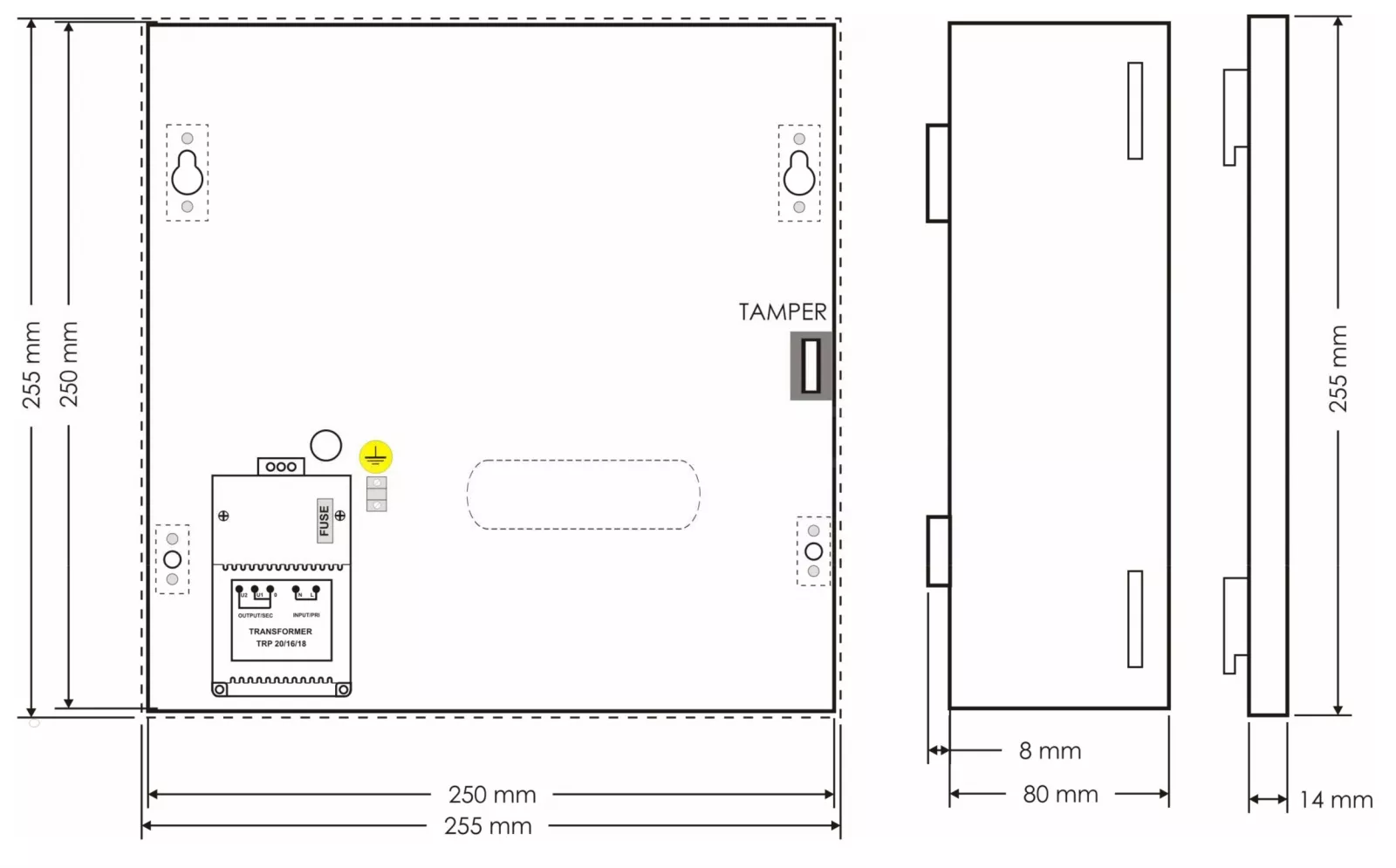

Pulsar AWO005 Dimensions:

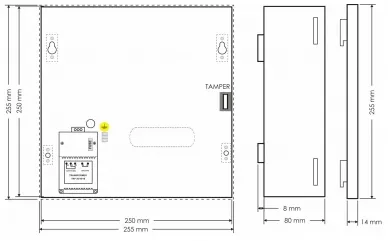

Pulsar AWO005 Dimensions:


The housing is designed to be mounted control panel and modules SATEL:

PANELS:
  • CA 4V1, CA5, CA6, VERSA 5,10, INTEGRA 24
MODULES:
  • CA64 ( PP, EPS, ADR, O- R, O- ROC, O- OC, OPS- OC, OPS-R, OPS- ROC,
    VGM- 16, SR, PTSA, ACC- KP- PS)
Sample distribution panel in the housing SATEL

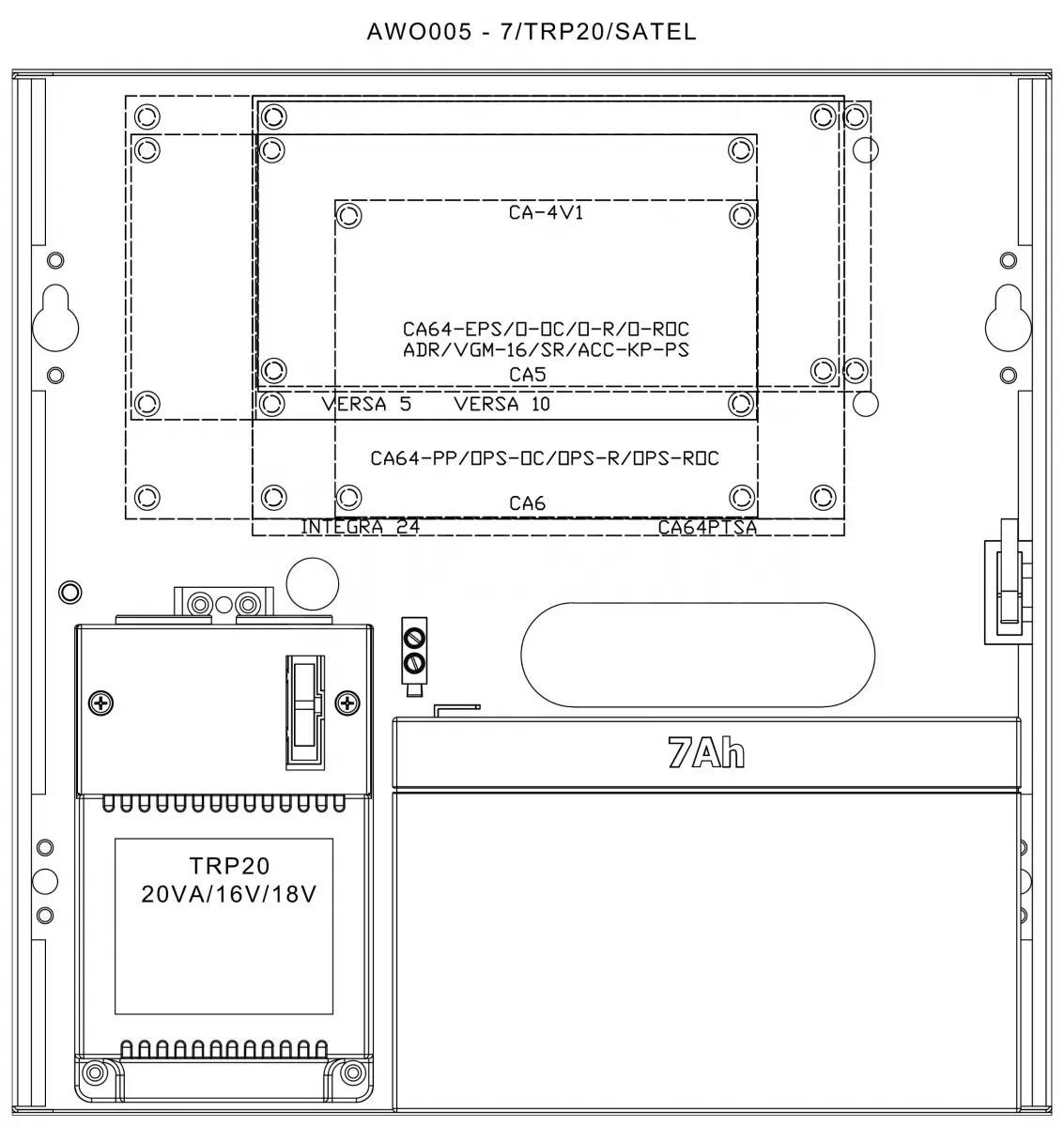

Possible arrangement of modules SATEL

Possible arrangement of modules SATEL
